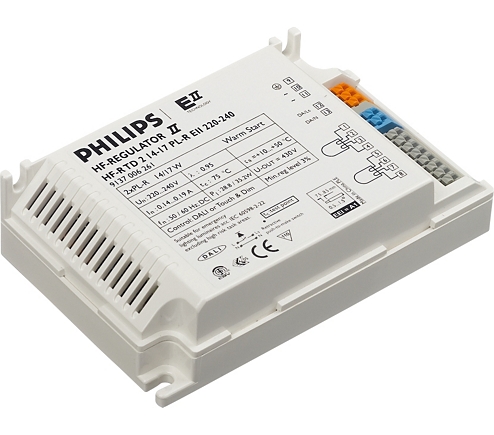

HF-Ri TD 2 26-42 PL-T/C E+ 913700684866

Description

2x26-42w PL-T/C E+ TL5C DALI - Philips - HF-Ri TD 2 26-42 PL-T/C E+ - 913700684866 - 871829124169000

General Information

Application Code
E+
Type Version
-
Lamp Type
PL-T/C
Number of Lamps
2 piece/unit
Number of Products on MCB (16A Type B) (Nom)
12
Automatic Restart
Yes
Operating and Electrical
Input Voltage
195-240 V
Input Frequency
50 to 60 Hz
Ignition Method
Warm Start
Crestfactor (Max)
1.7
Power Factor 100% Load (Nom)
0.95
Ignition Time (Max)
1 s
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.35 ms
Standby Power Consumption (Max)
0.27 W
Ballast Factor (Nom)
1
Power Losses (Nom)
2.7 W
Inrush Current Peak (Max)
45 A
Wiring
Connector Type Input Terminals
WAGO 250 series
Cable Capacity Output Wires Mutual (Max)
150 pF
Connector Type Output Terminals
WAGO 250 series
Connector Type Control Input Terminals
WAGO 250 series
Wire Striplength
8.0-9.0 mm
Dual Fixture Master/Slave
Yes  [ Master/Slave operation possible]
Control Input Terminal Cross Section
0.50-1.50 mm²
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Auto Insert (ALF/ADS) Wire Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires to Earth (Max)
150 pF
System characteristics
Rated Ballast-Lamp Power
26-42 W
Rated Lamp Power on PL-T/C
26 W
Rated Lamp Power on PL-T
32/42 W
Rated Lamp Power on TL5C
22/40/22+40 W
System Power on PL-T/C
58.5 W
System Power on PL-T
69/89.2 W
System Power on TL5C
52.5/84.1/68.3 W
Power Loss on PL-T/C
6.5 W
Power Loss on PL-T
7/7.2 W
Power Loss on TL5C
6.5/7.1/6.8 W
Lamp Power on TL5C
46/77/61 W
Lamp Power on PL-T
62/82 W
Lamp Power on PL-T/C
50 W
Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
-25 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-40 °C
T-Case Lifetime (Max)
75 °C
T-Case Maximum (Max)
75 °C
T-Ignition (Max)
50 °C
T-Ignition (Min)
-25 °C
Controls and Dimming
Control Interface
TD
Regulating Level Power
3%-100%
Control Input Protection
Yes (Basic insulation)
Mechanical and Housing
Housing
L 123x79x33

Approval and Application
Energy Efficiency Index
A1 BAT
IP Classification
IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1000 MHz
EN 55022 Class B
Safety Standard
IEC 61347-2-3
Performance Standard
IEC 60929
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
IEC 61000-3-2
EMC Immunity Standard
IEC 61547
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
EN 61347-2-3 clause 11
Approval Marks

EMC

CE marking

ENEC certificate

CCC certificate
Temperature Marking
Yes
Emergency Standard
IEC 60598-2-22
Hum And Noise Level
Inaudible
Product Data
Full product code
871829124169000
Order product name
HF-Ri TD 2 26-42 PL-T/C E+
EAN/UPC - Product
8718291241690
Order code
913700684866
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
913700684866
Net Weight (Piece)
0.230 kg

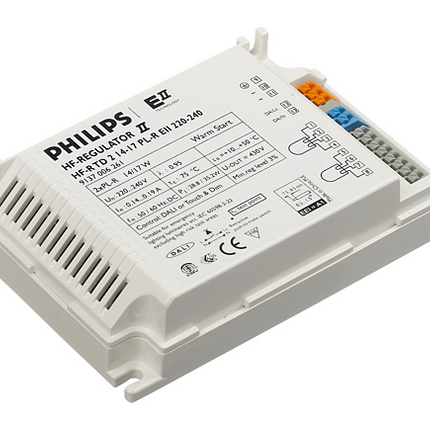

HF-Ri TD 2 26-42 PL-T/C E+ 913700684866

Product form

SKU: HFRITD22642PL-PH
Barcode: 913700684866

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£67.57 Excl. VAT

(inc. 20% VAT): £81.08

    • Contact us to confirm availability
