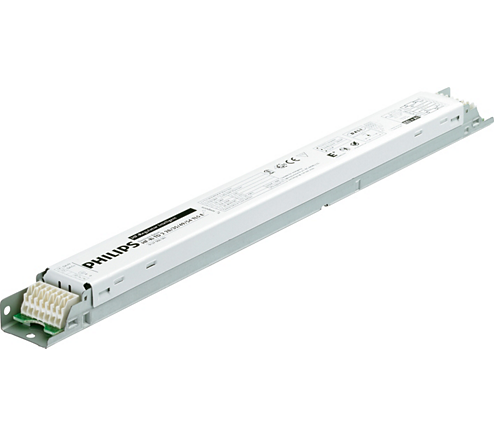

HF-Ri TD 2 28/35/49/54 TL5 E+ 195-240V 913700695866 Dali Dimmable

Description

Specifications

General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
E+
Type version
mk2
Lamp type
TL5
Number of lamps
2 piece/unit
Number of products on MCB (16 A type B) (nom.)
18
Automatic restart
Yes
Operating and Electrical
Input Voltage
195-240 V
Input frequency
50 to 60 Hz
Operating frequency (max.)
110 kHz
Operating frequency (min.)
45 kHz
Ignition method
Warm Start
Crest factor (max.)
1.7
Power factor 100% load (nom.)
0.95
Ignition time (max.)
1 s
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Earth leakage current (max.)
0.5 mA
Inrush current width
0.25 ms
Standby power consumption (max.)
0.25 W
Ballast factor (nom.)
1
Power losses (nom.)
7.2 W
Inrush current peak (max.)
28 A
Wiring
Connector type input terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Cable capacity output wires mutual (max.)
200 pF
Connector type output terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector type control input terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Wire strip length
8.0-9.0 mm
Dual fixture master/slave
Yes  [ Master/Slave operation possible]
Control input terminal cross section
0.50-1.00 mm²
Input terminal cross section
0.50-1.00 mm²
Output terminal cross section
0.50-1.00 mm²
Auto-insert (ALF/ADS) wire cross section
0.75 mm²
Cable capacity output wires to earth (max.)
200 pF
System characteristics
Rated ballast-lamp power
28-35-49-54 W
Rated lamp power on TL-D
58 W
System power on TL-D
108.1 W
Lamp power on TL-D
101.1 W
Power loss on TL-D
7.1 W
Rated lamp power on PL-L
55 W
System power on PL-L
108.4 W
Lamp power on PL-L
101.6 W
Power loss on PL-L
6.8 W
Rated lamp power on TL5
28/35/49/54 W
System power on TL5
63.0/77.9/111.4 W
Lamp power on TL5
58.9/73.6/107.2/113.4 W
Power loss on TL5
4.1/4.3/4.2/6.3 W
Rated lamp power on TL5 ECO
25/32/45/50 W
System power on TL5 ECO
53.7/70.3/99.7/108.7 W
Lamp Power on TL5 ECO
50.8/66.5/95.6/102.7 W
Rated lamp power on TL-D ECO
51 W
System power on TL-D ECO
95.8 W
Power loss on TL-D ECO
6.0 W
Lamp power on TL-D ECO
89.8 W
Power loss on TL5 ECO
2.9/3.8/4.1/6.0 W
Temperature
T-ambient (max.)
50 °C
T-ambient (min.)
-25 °C
T storage (max.)
80 °C
T storage (min.)
-40 °C
T case lifetime (max.)
75 °C
T-Case maximum (max.)
75 °C
Stable lamp operation temperature
15°C
T-Ignition (max.)
50 °C
T-Ignition (min.)
-25 °C
Controls and Dimming
Control interface
TD
Regulating level power
1%-100%
Control input protection
Yes (Basic insulation)
Mechanical and Housing
Housing
L 359x30x21

Emergency Operation
Battery voltage lamp ignition
198-254 V
Battery voltage lamp operation
176-254

Approval and Application
Energy efficiency index
A1 BAT
IP classification
IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1,000 MHz
EN 55022 Class B
Safety standard
IEC 61347-2-3
Performance standard
IEC 60929
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
IEC 61000-3-2
EMC immunity standard
IEC 61547
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Humidity standard
EN 61347-2-3 clause 11
Approval marks

CE marking

ENEC certificate

VDE-EMV certificate
Temperature marking
Yes
Emergency standard
IEC 60598-2-22
Humming and noise level
Inaudible
Product Data
Full product code
871829166209900
Order product name
HF-Ri TD 2 28/35/49/54 TL5 E+ 195-240V
EAN/UPC – product
8718291662099
Order code
66209900
Local order code
HFRITD22854T5PL
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700695866
SAP net weight (piece)
0.316 kg

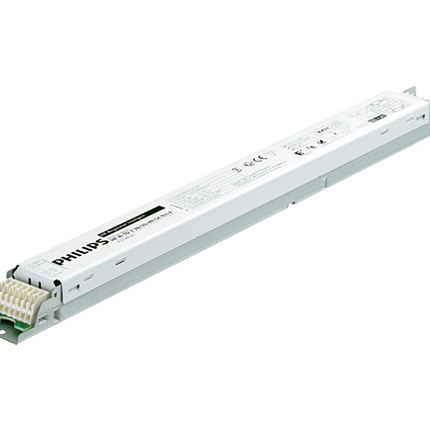

HF-Ri TD 2 28/35/49/54 TL5 E+ 195-240V 913700695866 Dali Dimmable

Product form

SKU: hfritd22854t5-ph
Barcode: 913700695866

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£61.90 Excl. VAT

(inc. 20% VAT): £74.28

    • Contact us to confirm availability
