HFR 226-42 - 9137006265

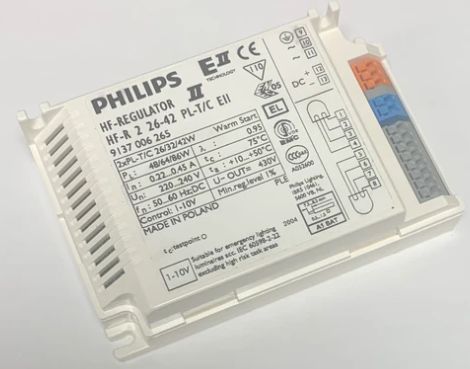

The Philips HF-R 226-42 (HF-Regulator) is a high-frequency, dimmable electronic ballast. It is designed to operate 1 or 2 compact fluorescent lamps (PL-C, PL-T, or PL-R) with wattages of 26W, 32W, or 42W. It utilizes an analogue 1-10V control system for smooth, flicker-free dimming from \(1\%\) to \(100\%\).

Key Specifications

• Compatible Lamps: \(2\times 26W\), \(32W\), or \(42W\) 4-pin CFLs (e.g., PL-C, PL-T)
• Input Voltage: 220–240V (50/60 Hz)
• Dimming Protocol: Analogue 1-10V interface
• Start Method: Programmed, warm start (allows frequent switching without reducing lamp life)
• Safety Features: Automatic safety shutdown and restart

Product Dimensions & Sourcing

• Dimensions: 123mm (L) × 79mm (W) × 33mm (H)
