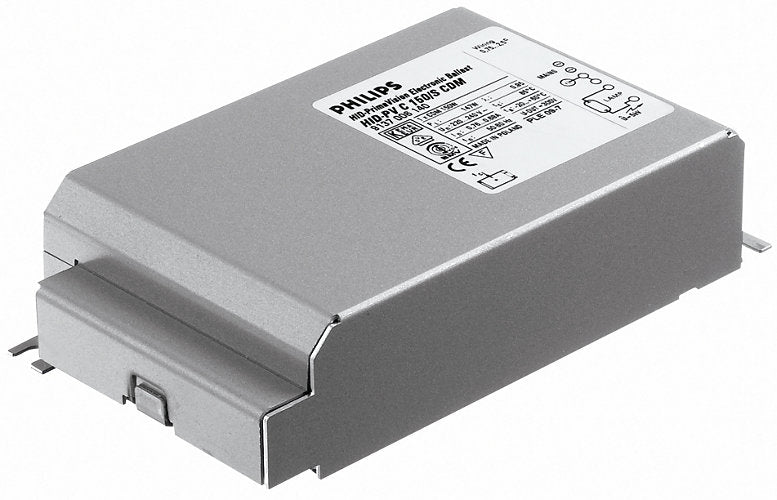

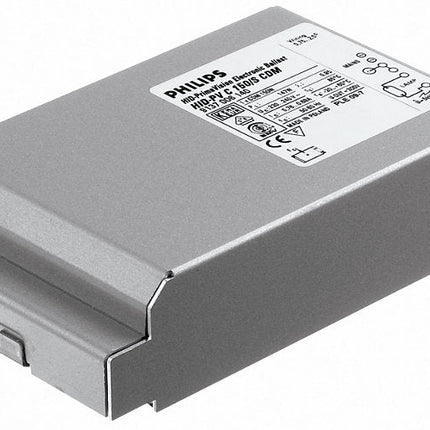

HID-PV C 150 /S CDM 220-240V 50/60Hz

Description

The Philips HID-PV C 150 /S CDM electronic ballast runs 1x150w metal halide lamps.this ballast is for use in luminaire, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.



Specifications

General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Lamp type
CDM
Number of lamps
1 piece/unit
Suitable for outdoor use
No
Number of products on MCB (16 A type B) (nom.)
6
Automatic restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Operating frequency (nom.)
0.14 kHz
Power factor 100% load (nom.)
0.95
Ignition voltage (max.)
5.0 kV
Ignition switch-off time (nom.)
20 min
Mains voltage performance (AC)
-10%-+6%
Mains voltage safety (AC)
-18%-+10%
Earth leakage current (max.)
0.35 mA
Inrush current width
.50 ms
Constant wattage deviation
-3%/+3%
Power losses (nom.)
10 W
Inrush current peak (max.)
50 A
Efficiency at full load [%]
93.2 %
Wiring
Cable capacity output wires mutual (nom.)
200 pF
Cable length from device to lamp
2.0 m
Wire strip length
10.0-11.0 mm
Ballast contact wire cross section
0.50-2.50 mm²
Connector type
Insert
System characteristics
Rated ballast-lamp power
150 W

Temperature
T-ambient (max.)
60 °C
T-ambient (min.)
-20 °C
T storage (max.)
85 °C
T storage (min.)
-25 °C
T-case lifetime (nom.)
75 °C
T-Case maximum (max.)
85 °C
Mechanical and Housing
Housing
/S

Approval and Application
Active temperature protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2
Vibration standard
IEC60068-2-6 F c
Bumps standard
IEC 60068-2-29 Eb
Approval marks

F-Marking

CE marking

VDE certificate

VDE-EMV certificate

CB Certificate
Humming and noise level
Inaudible
Product Data
Full product code
871150091052330
Order product name
HID-PV C 150 /S CDM 220-240V 50/60Hz
EAN/UPC – product
8711500910523
Order code
91052330
Local order code
HIDPVC150S
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700614066
SAP net weight (piece)
0.360 kg

Installation Diagrams

HID-PV C 150 /S CDM 220-240 V 50/60 Hz
HID-PV C 150 /S CDM 220-240 V 50/60 Hz
HID-PV C 150 /S CDM 220-240 V 50/60 Hz
HID-PV C 150 /S CDM 220-240 V 50/60 Hz

HID-PV C 150 /S CDM 220-240V 50/60Hz

Product form

SKU: PVC150S-PH
Barcode: 913700614066

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£46.38 Excl. VAT

(inc. 20% VAT): £55.66

    • Contact us to confirm availability
