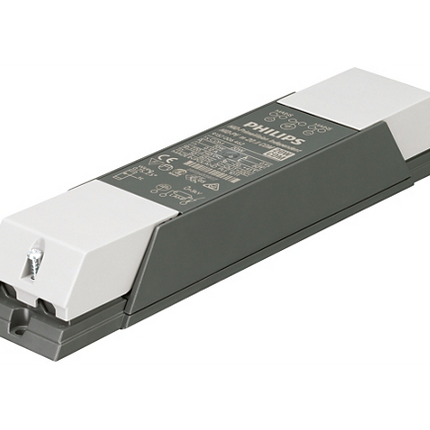

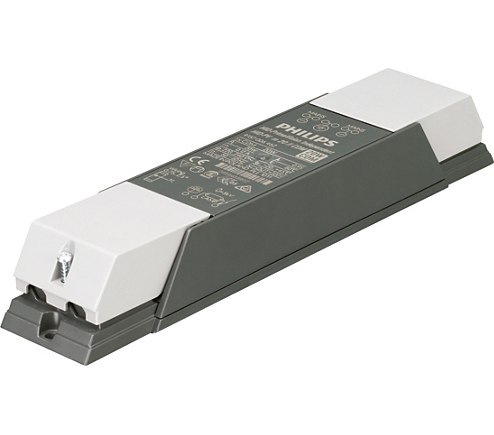

HID-PV m 20 /I CDM HPF 220-240V 50/60Hz

Description

Specifications

General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
HPF
Type version
mk1
Lamp type
CDM
Number of lamps
1 piece/unit
Suitable for outdoor use
No
Number of products on MCB (16 A type B) (nom.)
24
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Minimum mains voltage operation (min.)
198 V
Power factor 100% load (nom.)
0.95
Ignition voltage (max.)
4.5 kV
Ignition voltage (min.)
3.3 kV
Ignition switch-off time (nom.)
21 min
Mains voltage performance (AC)
198-254V
Mains voltage safety (AC)
180-264V
Earth leakage current (max.)
0.5 mA
Inrush current width
0.25 ms
Constant wattage deviation
-3%/+3%
Power losses (nom.)
4.5 W
Inrush current peak (max.)
15 A
Efficiency at full load [%]
87.7 %
Wiring
Cable capacity output wires mutual (nom.)
150 pF
Cable length from device to lamp
2 m
Wire strip length
10.0-11.0 mm
Ballast contact wire cross section
0.75-2.50 mm²
Connector type
Insert
System characteristics
Rated ballast-lamp power
20 W

Temperature
T-ambient (max.)
45 °C
T-ambient (min.)
-20 °C
T storage (max.)
80 °C
T storage (min.)
-25 °C
T-case lifetime (nom.)
75 °C
T-Case maximum (max.)
75 °C
Mechanical and Housing
Housing
Independent

Approval and Application
Active temperature protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Approval marks

F-Marking

CE marking

ENEC certificate

CB Certificate
Humming and noise level
Inaudible
Product Data
Full product code
872790089060000
Order product name
HID-PV m 20 /I CDM 220-240V 50/60Hz
EAN/UPC – product
8711500881632
Order code
89060000
Local order code
PVM20IHPF
SAP numerator – quantity per pack
1
Numerator – packs per outer box
10
SAP material
913700646266
SAP net weight (piece)
0.230 kg

Installation Diagrams

HID-PV m 20 /I CDM HPF 220-240 V 50/60 Hz
HID-PV m 20 /I CDM HPF 220-240 V 50/60 Hz
HID-PV m 20 /I CDM 220-240V 50/60Hz

HID-PV m 20 /I CDM HPF 220-240V 50/60Hz

Product form

SKU: PVM20I-PH
Barcode: 89060000

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£53.26 Excl. VAT

(inc. 20% VAT): £63.91

    • Contact us to confirm availability
