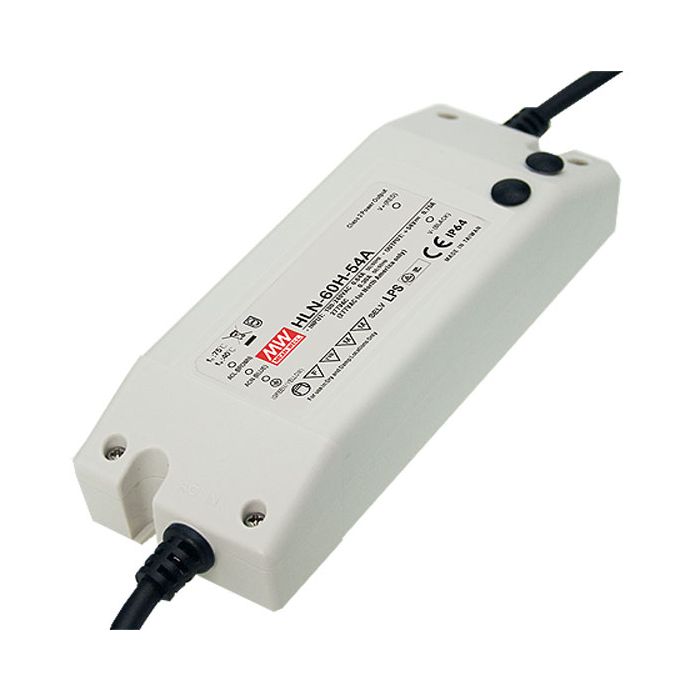

HLN-60H-24A - Mean Well LED Driver HLN-60H-24A 60W 24V

Description

Output and C.C level can be adjusted through internal potentiometerBuilt-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit/ Over current/ Over voltage/ Over temperature Other features:Universal AC input (up to 305VAC) / Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage 24V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLN-60H-spec_12.pdf

HLN-60H-24A - Mean Well LED Driver HLN-60H-24A 60W 24V

Product form

SKU: HLN-60H-24A

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£58.21 Incl. VAT

(inc. 20% VAT): £69.85

    • Contact us to confirm availability
      Downloads

    Output and C.C level can be adjusted through internal potentiometerBuilt-in constant current limiting circuit (C.V. + C.C mode) Protections: Short... Read more

    Description

    Output and C.C level can be adjusted through internal potentiometerBuilt-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit/ Over current/ Over voltage/ Over temperature Other features:Universal AC input (up to 305VAC) / Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty
    More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage 24V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment +/-10% rated output voltage EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL/EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1 Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLN-60H-spec_12.pdf
