Description
This has now been upgraded to the BMM/1-Kit LED S16 this is what you will be sent if you order this. The only difference is it operates as both maintained and non maintained.
The 3-hour emergency lighting driver operates the LED strip at 700mA which provides 240 lumen from the LED strip. This unit is designed for emergency lighting, not for continuous use.
This product is suitable for mounting to a gear-tray adjacent to an LED tube, mitigating the risk of LED tubes being miss-replaced and causing non-compatibility with existing emergency packs.
BMM/1 Maintained/Non-Maintained Driver
A 3-hour 700mA maintained/non-maintained emergency driver designed for constant current LED devices, supplied complete with the latest, extra long life lithium iron phosphate (LiFePO4) battery packs. The unit is designed to power a single LED in emergency mode, which can also be used for night lighting, where required.

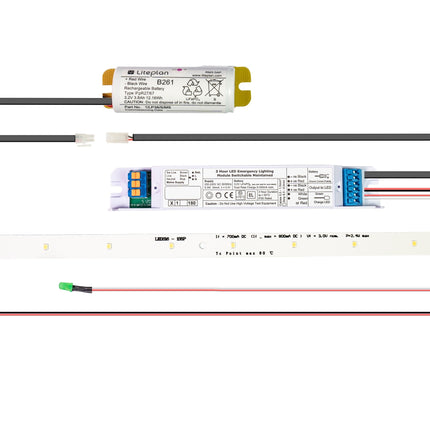

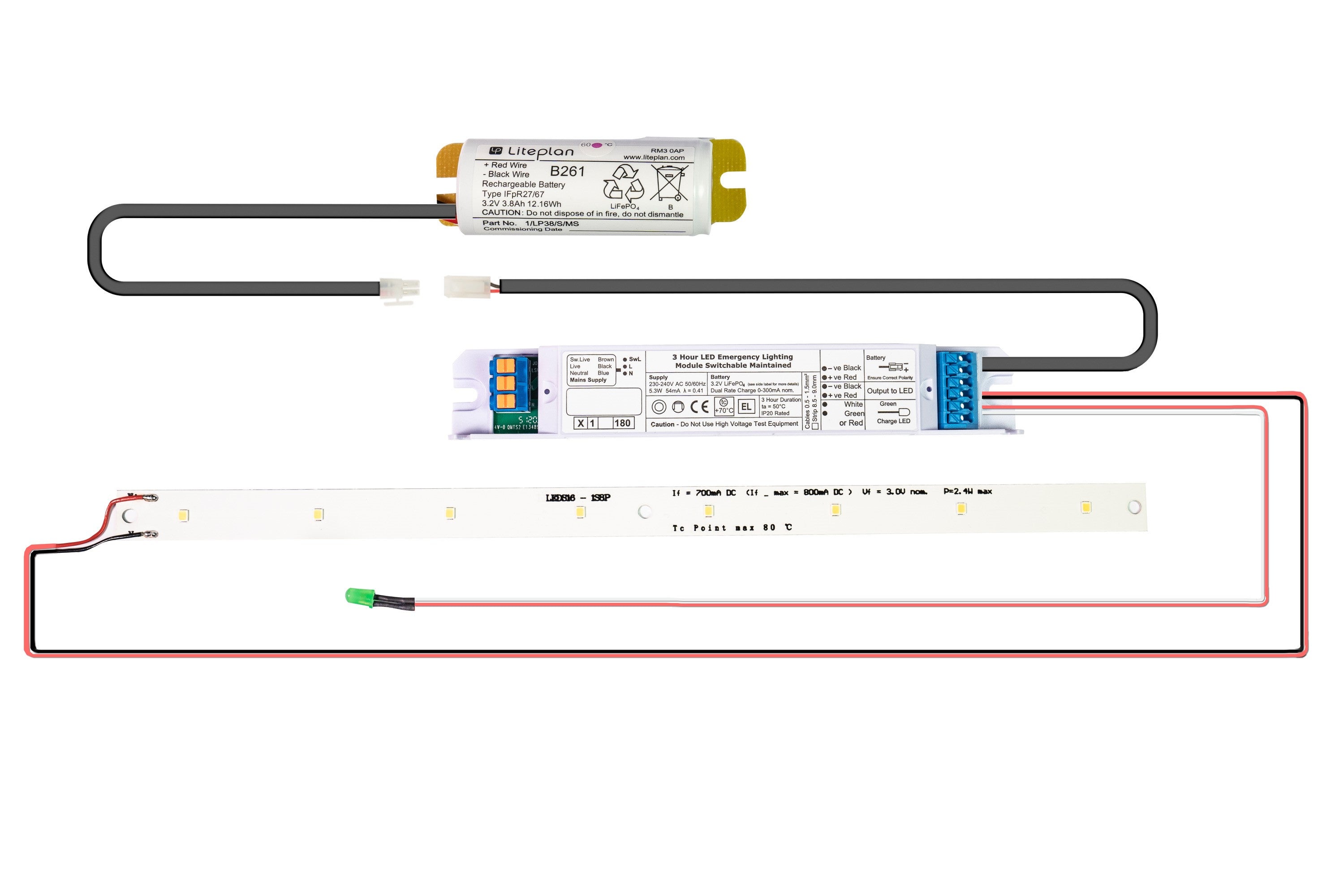

The Bmm/1/LEDS16 is supplied as a complete non-maintained/Maintained emergency driver/LED strip for integral mounting within a luminaire.
The 3-hour emergency lighting driver operates the LED strip at 700mA which provides 240 lumen from the LED strip. This unit is designed for emergency lighting, not for continuous use.
This product is suitable for mounting to a gear-tray adjacent to an LED tube, mitigating the risk of LED tubes being miss-replaced and causing non-compatibility with existing emergency packs.
- Operates With Extra Long Life LiFePO4 Batteries
- Suitable for Mounting To Gear-tray
- Deep Discharge Protection
- 1W Load Emmitting 240 Lumen
- For Non-Maintained Operation
Technical Details:
|
Mains Supply
|
230-240V AC 50/60 Hz
|
Max Ta and Tc
|
Ta - 50 °C - Tc - 70 °C
|
|
Power Rating - Operating
|
4.9W 51mA λ = 0.41
|
Overall Weight
|
0.4Kg
|
|
- Charging
|
2.0W 25mA λ = 0.35
|
Battery Discharge Current
|
660mA nominal
|
|
- Charged
|
0.45W 7.5mA λ = 0.24
|
Recharge Period
|
24-Hours
|
|
Duration
|
3-Hours
|
Discharge Voltage Cut Off
|
2.5 Volts
|
|
Battery Size & Type
|
3.2V 4.5Ah LiFePO4
|
Ingress Protection
|
IP20
|
|
Charge Current
|
Dual Rate 0-300mA
|
Mains Input Terminal
|
1.0mm² - 1.5 mm²
|
|
Max Battery Temperature 55 °C
Battery Dimensions (LxWxH) 230mm x 24mm x 21mm Battery Fixing Centres 215-220mm
|
Module Dimensions (LxWxH) Module Fixing Centres
LED Strip Dimensions
|
165mm x 26.5mm x 21.5mm 155mm
304mm x 15mm
|
