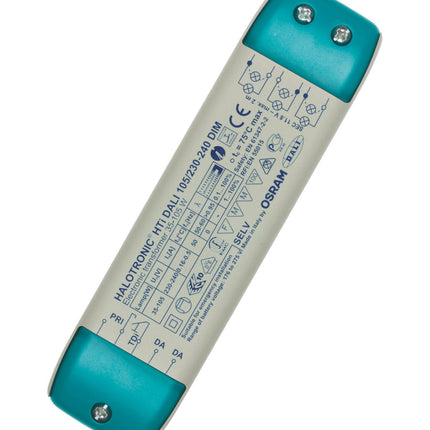

HTI DALI 105/230…240 DIM

Description

Product family benefits
  • Very low power consumption thanks to high efficiency
  • Through-wiring possible on the primary side
  • Large temperature range
  • Protective operation throughout the entire partial-load range for long lamp life
Areas of application
  • Effect and accent lighting
  • Living rooms
  • Object lighting
  • Conference rooms
  • Restaurants
  • Recessed and surface-mounted ceiling luminaires
  • Shop lighting
  • Event rooms

Technical Data

Electrical data

Lamp wattage

35…105 W

Maximum output power

105 W

Line current

0.45 A

Input voltage DC

176…275 V

Nominal voltage

230…240 V

Power factor λ

0.95


Operating frequency

40 kHz


Nominal output voltage

11.6 / 11.4 V

Mains frequency

50…60 Hz

System wattage

108.00 W

Efficiency in full-load

95 %

Max. ECG no. on circuit breaker 10 A (B)

23

Galvanic isolation primary/secondary

4.00 kV

Max. ECG no. on circuit breaker 16 A (B)

38

Networked standby power

0.50 W

Inrush current

0.6 A

Dimensions & weight

Length

170.0 mm

Width

44.0 mm

Height

34.0 mm

Wire preparation length, input side

8.0 mm

Wire preparation length, output side

8.0 mm

Mounting hole spacing, length

140.0 mm

Product weight

160.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Maximum temperature at tc test point

75 °C

Additional product data

Design / version

Long with cable clamp

Capabilities

Dimming method

Phase cut-off

Dimming interface

DALI or Touch DIM/Touch DIM Sensor

Overload protection

Automatic reversible

Overheating protection

Automatic reversible

Short-circuit protection

Automatic reversible

Max. cable length to lamp/LED module

2.0 m

Cable/wire types, input side

H03VV-F 2x0.50 / H03VV-F 2x0.75 / H03VVH2-F 2x0.75 / H05VVH2-F 2x0.75 / H05VV-F 2x2.5 / H05VV5G 1.5 / NYM-O 2x1.5 / NYM-J 3x1.5 / NYM-J 5x1.5 mm²

Cable/wire types, output side

H03VV-F 2x0.75 / H05VV-F 2x0.75 / H05VV-F 2x1.5 / H05VV-F 2x2.5 / NYM-J 3x1.5 / NYM-J 3x2.5 / NYM-O 2x1.5 mm²

Dimmable

Yes

Dimming range

0.1…100 %


No-load proof

Yes

Intended for no-load operation

No

Certificates & standards

Approval marks – approval

E1 approval / VDE / VDE-EMC

Standards

Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 61347-2-2

Type of protection

IP20

Logistical data

Commodity code

850440909000

Environmental information

Date of Declaration

10-11-2021

Primary Article Identifier

4008321420633

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

1b7fa333-bfff-4d5d-a686-eec22e4e177d

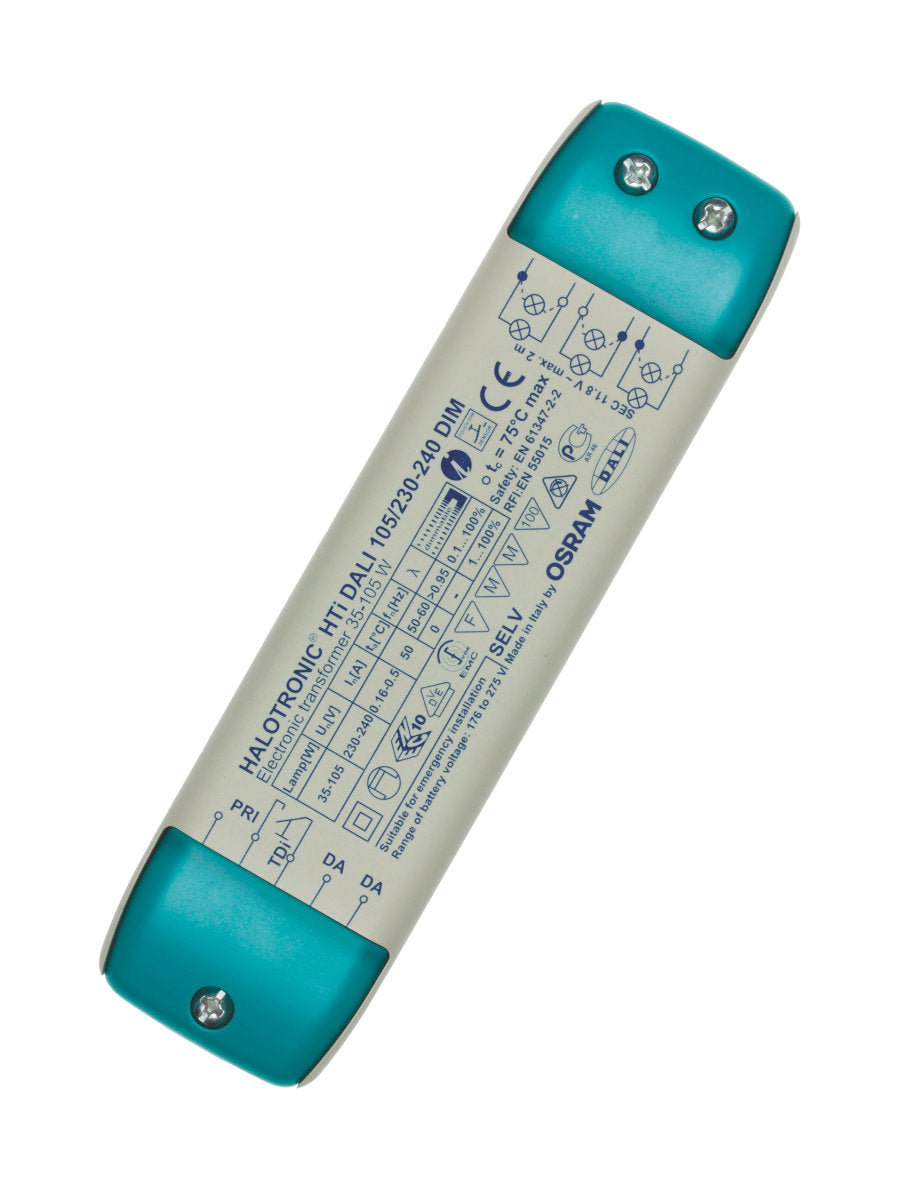

HTI DALI 105/230…240 DIM

Product form

SKU: HTIDALI105230-OS
Barcode: 4008321420633

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£94.78 Excl. VAT

(inc. 20% VAT): £113.74

    • Contact us to confirm availability
