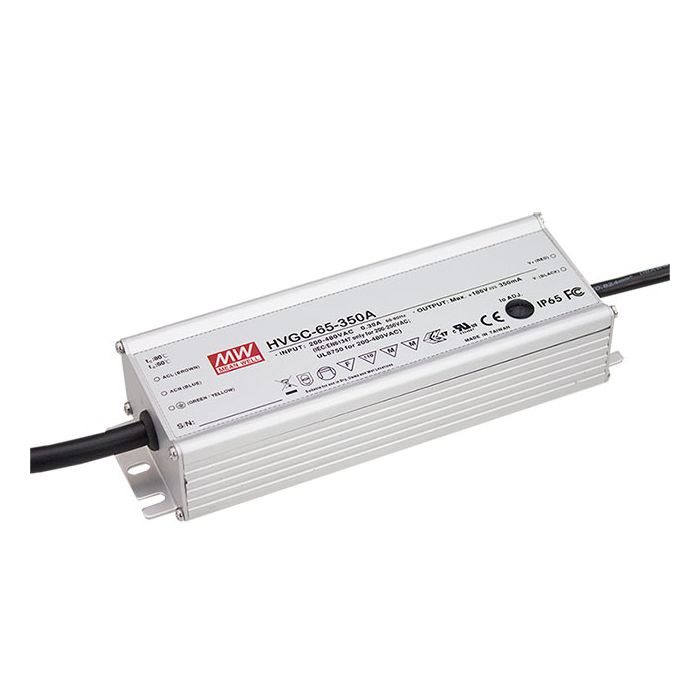

HVGC-65-350B - Mean Well LED Driver HVGC-65-350B 65W 350mA

Description

Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warranty
More Information Manufacturer Mean Well Output Wattage (W) 65 Output Current 350mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 18~186 Dimensions 189x 61.5x 36.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf

HVGC-65-350B - Mean Well LED Driver HVGC-65-350B 65W 350mA

Product form

SKU: HVGC-65-350B

Trade price available - contact us

£89.72 Excl. VAT

(inc. 20% VAT): £107.66

    • Contact us to confirm availability
      Downloads

    Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over... Read more

    Description

    Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warranty
    More Information Manufacturer Mean Well Output Wattage (W) 65 Output Current 350mA Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 18~186 Dimensions 189x 61.5x 36.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP67 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf
