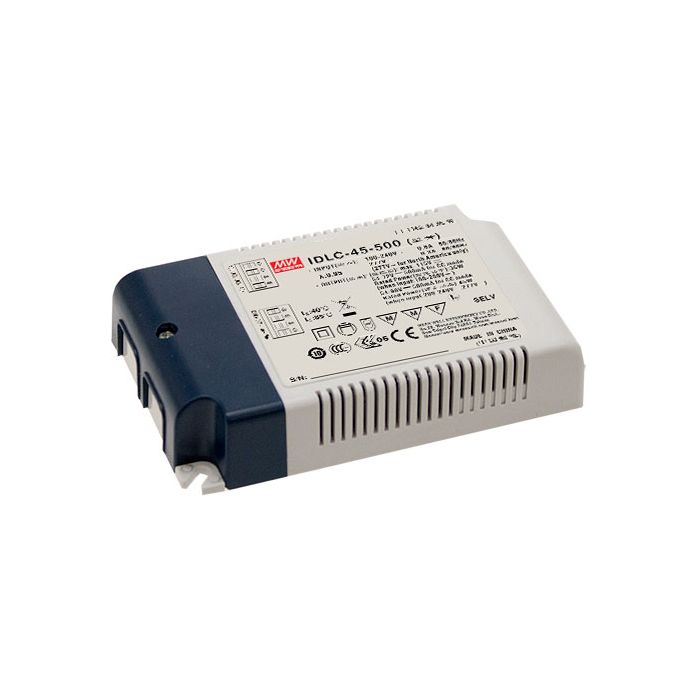

IDLC-45-500 - Mean Well LED Driver IDLC-45-500 Series 45W 500mA

Description

Constant Current mode outputFlicker free designProtections: Short circuitOther features:Plastic housing with class II designBuilt-in active PFC functionNo load power consumption <0.5W (Blank-Type)Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 45 Output Current 500mA Dimmable (Type) Yes Output Voltage Range (V) 54~90 DC Output Adjustment 54-90V Dimensions 120x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 90-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-45-SPEC.pdf

IDLC-45-500 - Mean Well LED Driver IDLC-45-500 Series 45W 500mA

Product form

SKU: IDLC-45-500

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£62.28 Incl. VAT

(inc. 20% VAT): £74.74

    • Contact us to confirm availability
      Downloads

    Constant Current mode outputFlicker free designProtections: Short circuitOther features:Plastic housing with class II designBuilt-in active PFC functionNo load power consumption... Read more

    Description

    Constant Current mode outputFlicker free designProtections: Short circuitOther features:Plastic housing with class II designBuilt-in active PFC functionNo load power consumption <0.5W (Blank-Type)Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output3 years warranty
    More Information Manufacturer Mean Well Output Wattage (W) 45 Output Current 500mA Dimmable (Type) Yes Output Voltage Range (V) 54~90 DC Output Adjustment 54-90V Dimensions 120x 75x 25 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 90-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved Output Voltage Options Single Working Temperature -20°C-+85°C PDF Datasheet IDLC-45-SPEC.pdf
