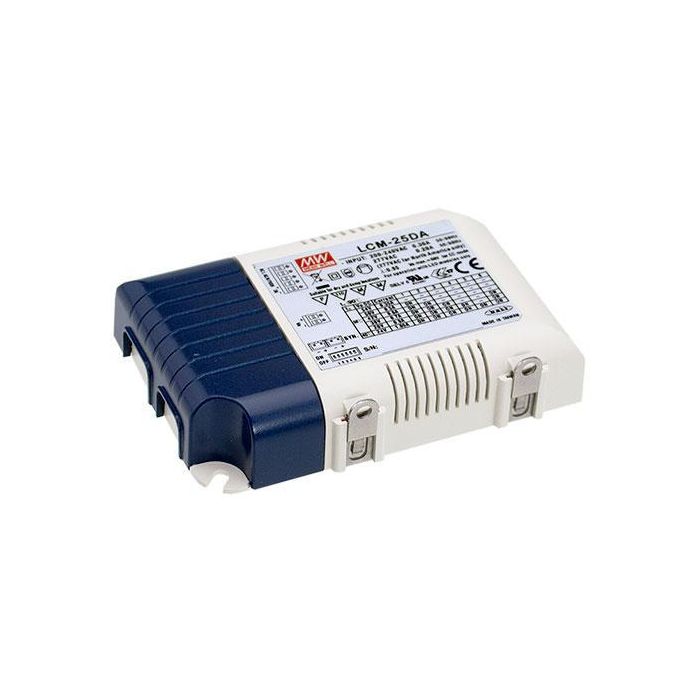

LCM-25 - Mean Well LCM-25 Selectable Current LED Driver 25W 350~1050mA

Description

Built-in 0~10Vdc and PWM signal dimming function Output current level selectable by DIP switchProtections: Short circuit / Over voltage / Over temperature Other features: 180~295VAC input only Built-in active PFC function Protections: Short circuit / Over voltage / Over temperature Cooling by free air convection Fully isolated plastic case No load power consumption <0.5W Class II power unit, no F.G. Logarithm or linear dimming curve selectable (meet IEC62386-207) Built-in 0~10Vdc and PWM signal dimming function Power supplies synchronization function up to 10 units Suitable for indoor LED lighting applications 3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 105x 68x 23 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~295VAC, 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-25-SPEC.PDF

LCM-25 - Mean Well LCM-25 Selectable Current LED Driver 25W 350~1050mA

Product form

SKU: LCM-25
Barcode: 4021087008563

Trade price available - contact us

£38.22 Excl. VAT

(inc. 20% VAT): £45.86

    • Contact us to confirm availability
      Downloads

    Built-in 0~10Vdc and PWM signal dimming function Output current level selectable by DIP switchProtections: Short circuit / Over voltage /... Read more

    Description

    Built-in 0~10Vdc and PWM signal dimming function Output current level selectable by DIP switchProtections: Short circuit / Over voltage / Over temperature Other features: 180~295VAC input only Built-in active PFC function Protections: Short circuit / Over voltage / Over temperature Cooling by free air convection Fully isolated plastic case No load power consumption <0.5W Class II power unit, no F.G. Logarithm or linear dimming curve selectable (meet IEC62386-207) Built-in 0~10Vdc and PWM signal dimming function Power supplies synchronization function up to 10 units Suitable for indoor LED lighting applications 3 years warranty
    More Information Manufacturer Mean Well Output Wattage (W) 25 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 105x 68x 23 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~295VAC, 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-25-SPEC.PDF
