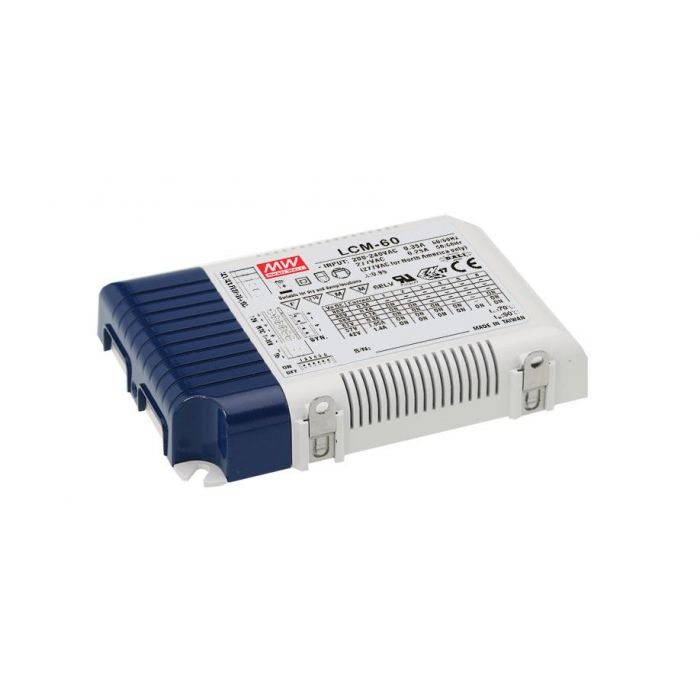

LCM-60 - Mean Well LCM-60 Selectable Current LED Driver 60W 500~1400mA

Description

Built-in 0~10Vdc or PWM signal dimming function Output current level selectable by DIP S.W. Built-in active PFC function Protections: Short circuit / Over voltage / Over temperature  Other features: 180~295VAC input only Cooling by free air convection Temperature compensation function by external NTC No load power consumption <1.2W@AC always on Fully isolated plastic case Class power unit, no FG Built-in 12V/50mA auxiliary output Suitable for LED lighting applications Power supplies synchronization function up to 10 units 3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 123.5x 81.5x 23 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A Input Voltage 180~295VAC 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-60-spec_2.pdf

LCM-60 - Mean Well LCM-60 Selectable Current LED Driver 60W 500~1400mA

Product form

SKU: LCM-60
Barcode: 4021087008518

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£39.48 Incl. VAT

(inc. 20% VAT): £47.38

    • Contact us to confirm availability
      Downloads

    Built-in 0~10Vdc or PWM signal dimming function Output current level selectable by DIP S.W. Built-in active PFC function Protections: Short... Read more

    Description

    Built-in 0~10Vdc or PWM signal dimming function Output current level selectable by DIP S.W. Built-in active PFC function Protections: Short circuit / Over voltage / Over temperature  Other features: 180~295VAC input only Cooling by free air convection Temperature compensation function by external NTC No load power consumption <1.2W@AC always on Fully isolated plastic case Class power unit, no FG Built-in 12V/50mA auxiliary output Suitable for LED lighting applications Power supplies synchronization function up to 10 units 3 years warranty
    More Information Manufacturer Mean Well Output Wattage (W) 60 Output Voltage Choose Option Dimmable (Type) 0~10Vdc & PWM signal Dimensions 123.5x 81.5x 23 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A Input Voltage 180~295VAC 254~417VDC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13,EN62384 independent approved Output Voltage Options Single Working Temperature -40~+85°C PDF Datasheet LCM-60-spec_2.pdf
