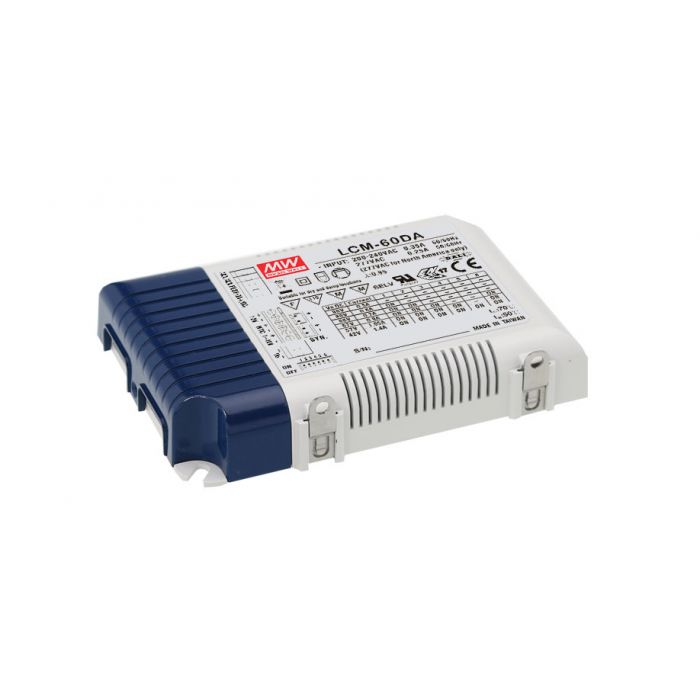

LCM-60DA - Mean Well LCM-60DA DALI Dimmable Selectable Current LED Driver 60W 500~1400mA

Description

Product Details

60W Constant current LED Power Supply LCM-60DA series


The LCM-60DA LED driver is a 60W multiple-stage output current LED power supply with built-in DALI interface. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.


Output current level selectable by DIP Switch
180∼295VAC input only
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Built-in DALI interface and push dimming function
Built-in 12V/50mA auxiliary output
IP20 design
Temperature compensation function by external NTC
No load power consumption <1W
Power supplies synchronization function up to 10 units
Suitable for LED lighting applications



Mean Well LED Drivers, Constant Current

Specifications

Attribute Value
Input Voltage 180 → 295 V ac, 254 → 417 V dc
Output Voltage 2 → 90V
Operation Constant Current
Output Current 1.05 A, 1.4 A, 500 mA, 600 mA, 700 mA, 900 mA
Maximum Output Power 60.3W
Dimming Operation DALI
AC or DC Input Voltage ac, dc
IP Rating IP20
Voltage Rating 180 → 295 V ac, 254 → 417 V dc

LCM-60DA - Mean Well LCM-60DA DALI Dimmable Selectable Current LED Driver 60W 500~1400mA

Product form

SKU: LCM-60DA
Barcode: 4021087008495

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£80.00 Excl. VAT

(inc. 20% VAT): £96.00

    • Contact us to confirm availability
      Downloads

    Product Details 60W Constant current LED Power Supply LCM-60DA series The LCM-60DA LED driver is a 60W multiple-stage output current... Read more

    Description

    Product Details

    60W Constant current LED Power Supply LCM-60DA series


    The LCM-60DA LED driver is a 60W multiple-stage output current LED power supply with built-in DALI interface. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.


    Output current level selectable by DIP Switch
    180∼295VAC input only
    Built-in active PFC function
    Protections: Short circuit / Over voltage / Over temperature
    Cooling by free air convection
    Fully isolated plastic case
    Class II power unit, no FG
    Built-in DALI interface and push dimming function
    Built-in 12V/50mA auxiliary output
    IP20 design
    Temperature compensation function by external NTC
    No load power consumption <1W
    Power supplies synchronization function up to 10 units
    Suitable for LED lighting applications



    Mean Well LED Drivers, Constant Current

    Specifications

    Attribute Value
    Input Voltage 180 → 295 V ac, 254 → 417 V dc
    Output Voltage 2 → 90V
    Operation Constant Current
    Output Current 1.05 A, 1.4 A, 500 mA, 600 mA, 700 mA, 900 mA
    Maximum Output Power 60.3W
    Dimming Operation DALI
    AC or DC Input Voltage ac, dc
    IP Rating IP20
    Voltage Rating 180 → 295 V ac, 254 → 417 V dc
