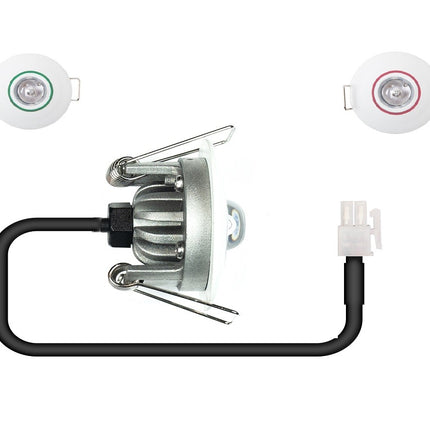

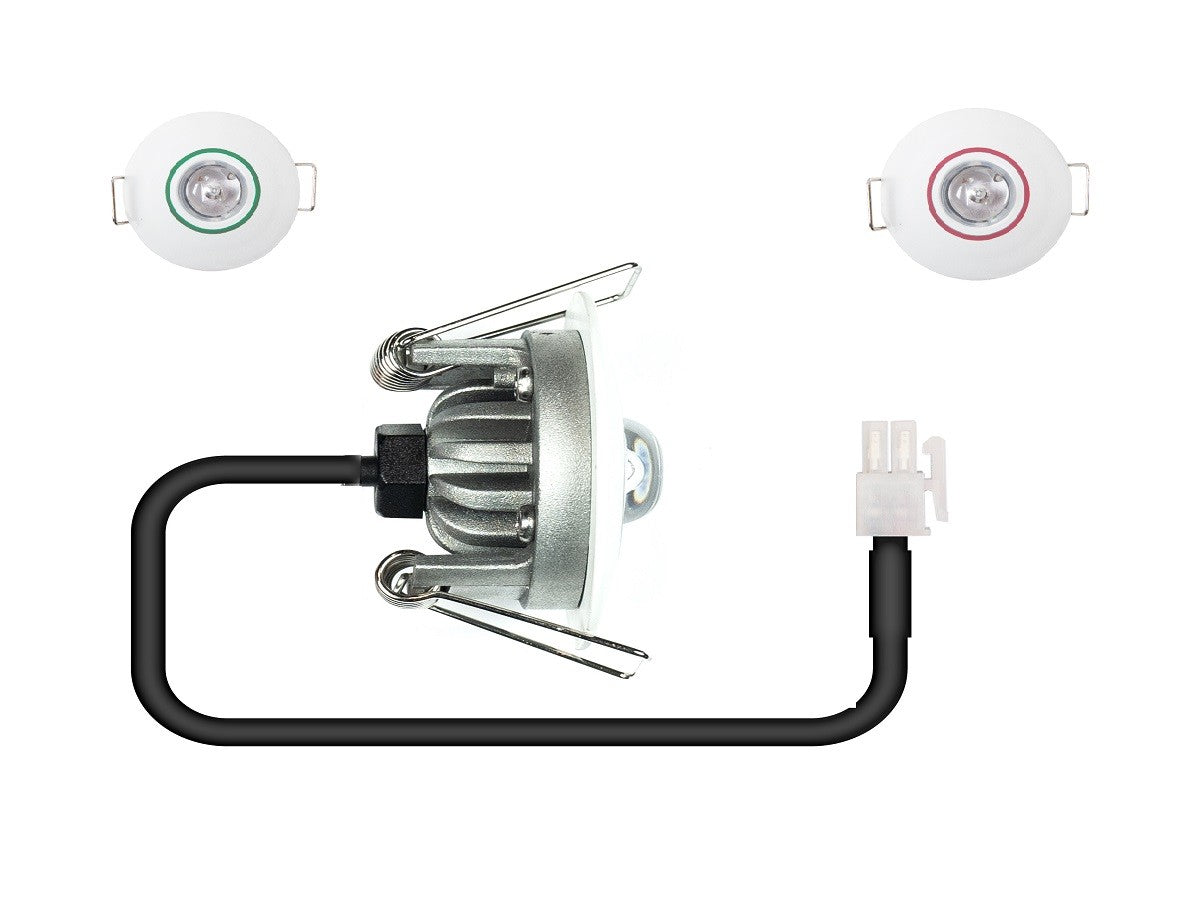

LED/43/OA Open Area Optic

A constant current 135° wide beam angle device which can be driven up to 700mA. The face incorporates the design protected, Halo effect, bi-colour LED for green charge healthy and red self-test fault indication.

The LED/43/OA is a discrete emergency LED which is designed for
ceiling recess applications. The bezel has a diameter of 50mm and
the cut out required is 40mm to 43mm.
The main LED can be driven up to 700mA and provides up to 268
lumen. The body also features our Design Protected, Halo effect bi
colour LED; green for charge healthy and red for fault indication of
self-test functionality.
Order Code
 LED/43/OA/W
White (RAL9016) Emergency Device

 •
•
•
•
•
•
•
135 ° Beam Angle
 Standard, Self-Test and DALI Options Available
 High Output - Up to 268 Delivered Lumen
 Supplied With Plugs and Leads
 Requires a 40mm to 43mm Cut-Out
 Features Halo Effect Bi-Colour Charge LED
 IP54 Ingress Protection as Standard
