Liteplan DLP/1 , obsolete replaced by the ADM/1-K

Description

Obsolete, this how been replaced with the ADM/1-K which will be supplied with a new smaller lithium battery

Replacement

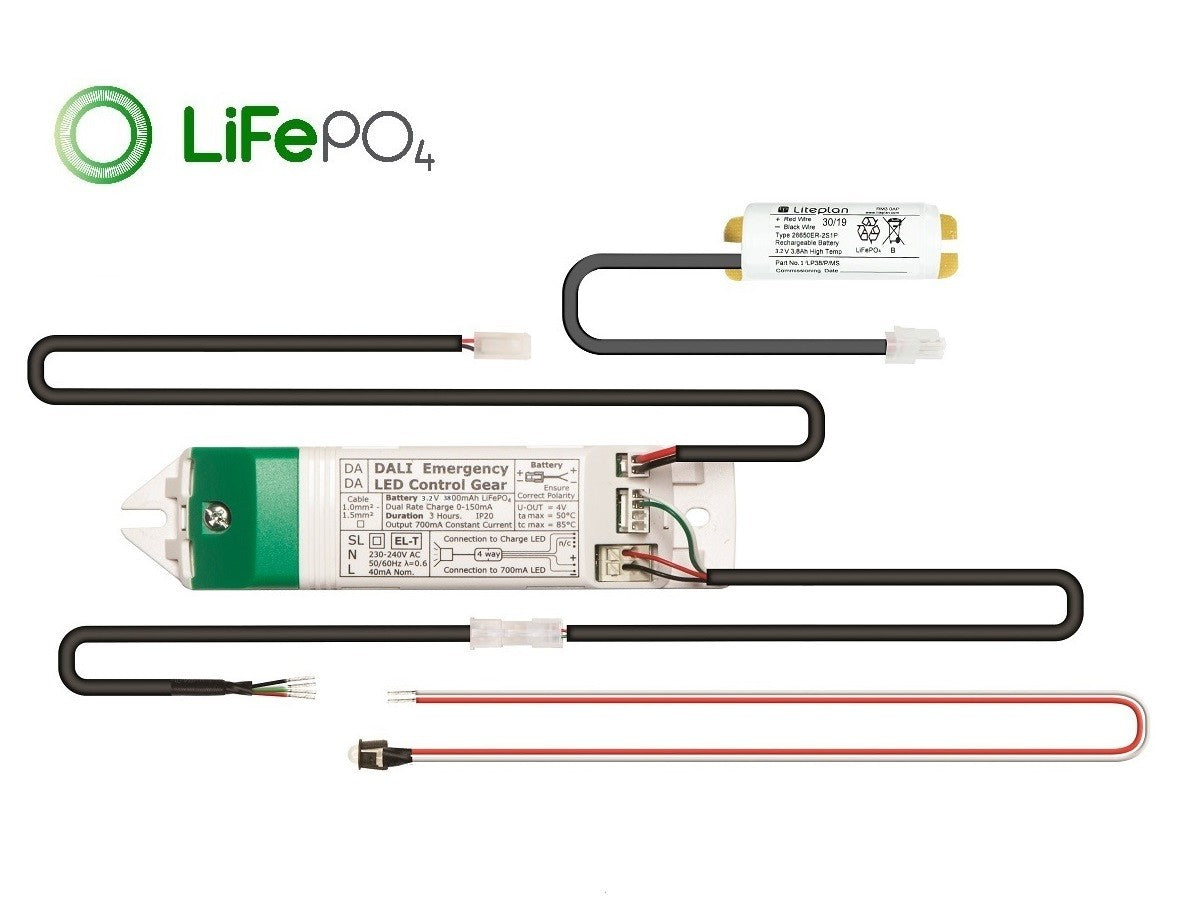

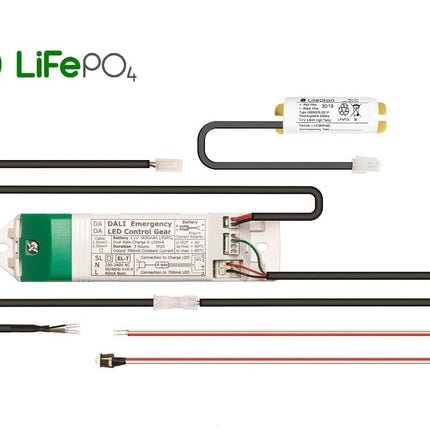

A 3-hour emergency DALI self-test driver designed for constant current LED devices, supplied complete with extra long life LiFePO4 battery packs. This product is suitable for integral applications. The DLP/1 operates a single 4V chip at 550mA. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.

This range operates with LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.

DLP/1 DALI Addressable Range

Specifications

    • For Integral Use with Slim Batteries
    • High Temperature Tolerance Batteries
    • Extra Long Life LiFePO4 Batteries
    • DALI Self-Test Module
    • High Output (700mA) Version Available
  •   DLP/1
    Input Voltage 230-240 Volts AC – 50/60Hz
    Power Rating

    Charging Maintained: 32mA λ = 0.6

    Standby Non-Maintained: 8mA λ = 0.15
    Em. Duration 3-hours
    Battery Type IRF26650 LiFePO4
    Battery Voltage 3.2V
    Battery Capacity 3.8Ah
    Charge Current Dual Rate 0-225mA
    Discharge Current 700mA nominal
    Recharge Time 24-hours
    TC Max 60°C Module / 55°C Battery
    Output Load 1 x 2W
    Output Current 550mA
    Module Dims. 149mm x 35mm x 28mm
    Battery Dimensions (with end caps) 220mm long x 22mm wide x 24mm high
    Fixing Centres 132mm x M4
    Module Weight 0.1Kg
    Battery Weight 0.11Kg

Liteplan DLP/1 , obsolete replaced by the ADM/1-K

Product form

SKU: DLP/1
Barcode: 5056200300018

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£64.00 Excl. VAT

(inc. 20% VAT): £76.80

    • Contact us to confirm availability
      Downloads

    Obsolete, this how been replaced with the ADM/1-K which will be supplied with a new smaller lithium battery   Replacement  ... Read more

    Description

    Obsolete, this how been replaced with the ADM/1-K which will be supplied with a new smaller lithium battery

    Replacement



    A 3-hour emergency DALI self-test driver designed for constant current LED devices, supplied complete with extra long life LiFePO4 battery packs. This product is suitable for integral applications. The DLP/1 operates a single 4V chip at 550mA. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.

    This range operates with LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.

    DLP/1 DALI Addressable Range

    Specifications

      • For Integral Use with Slim Batteries
      • High Temperature Tolerance Batteries
      • Extra Long Life LiFePO4 Batteries
      • DALI Self-Test Module
      • High Output (700mA) Version Available
    •   DLP/1
      Input Voltage 230-240 Volts AC – 50/60Hz
      Power Rating

      Charging Maintained: 32mA λ = 0.6

      Standby Non-Maintained: 8mA λ = 0.15
      Em. Duration 3-hours
      Battery Type IRF26650 LiFePO4
      Battery Voltage 3.2V
      Battery Capacity 3.8Ah
      Charge Current Dual Rate 0-225mA
      Discharge Current 700mA nominal
      Recharge Time 24-hours
      TC Max 60°C Module / 55°C Battery
      Output Load 1 x 2W
      Output Current 550mA
      Module Dims. 149mm x 35mm x 28mm
      Battery Dimensions (with end caps) 220mm long x 22mm wide x 24mm high
      Fixing Centres 132mm x M4
      Module Weight 0.1Kg
      Battery Weight 0.11Kg
