| Mains Supply Voltage |
230-240V AC 50/60Hz
|
| Emergency Duration |
3 Hours
|
| Recharge Period |
24 Hours
|
| LED Current Limit |
320mA
|
| Battery Current Limit |
1100mA
|
|
Cut off Voltage
|
2.5V
|
Double Pole Changeover Relay
Additional 3rd Pole Relay
Compact Design - will fit through a 45mm aperture

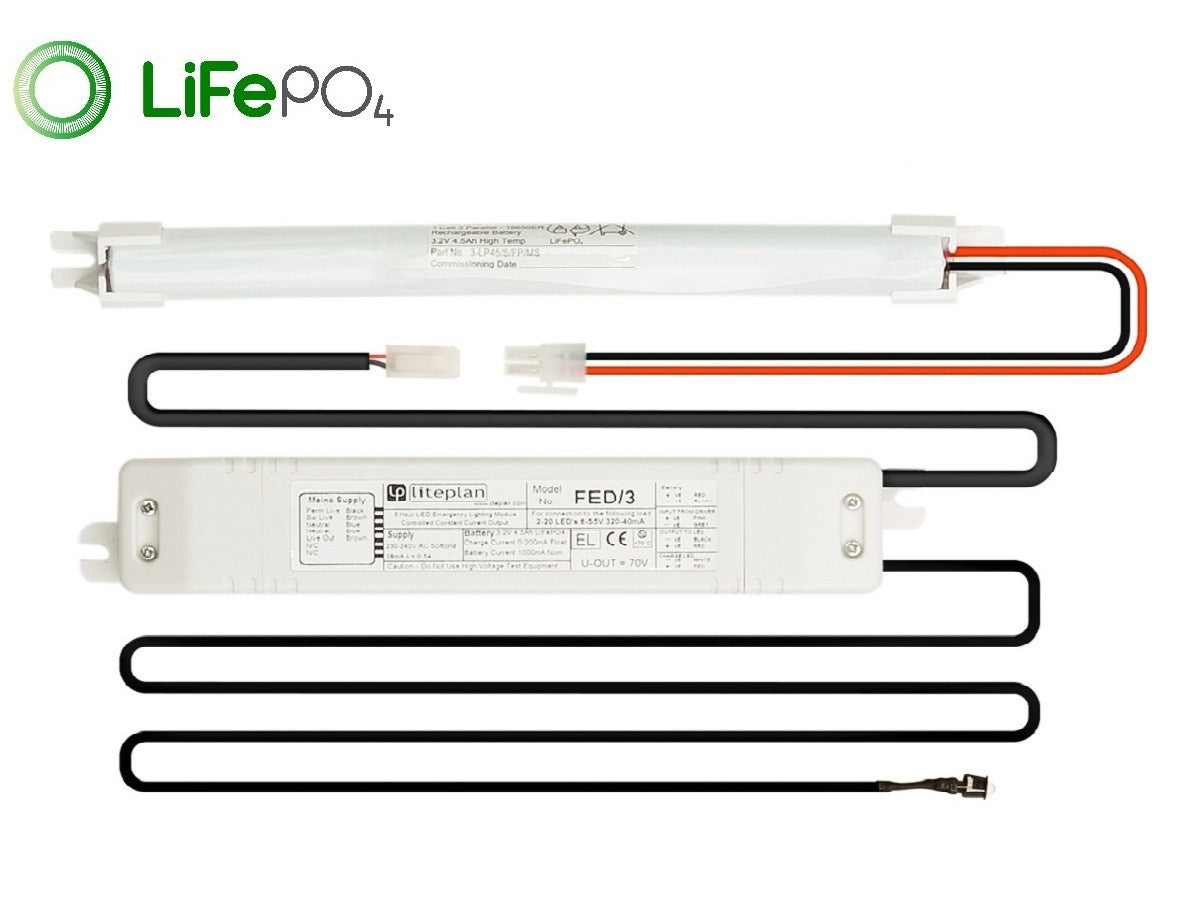

The FED/3 has ENEC and BSI Kitemark Approval, itis a high quality 3 hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED.
This range pioneers the use of LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour.
