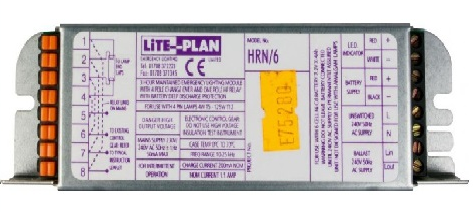

LITEPLAN - HRN6-LP Emergency Module

Description

Emergency Module 6 Cell 4-100W Florescent ballast

Suitable for Most Compact Fluorescent Lamps • Deep Discharge Protection • Four Pole Changeover Relay • Fifth Pole Relay for Ballast Protection • High Temperature NiCd Batteries • Compact Module Dimensions • Can be Provided in Various Remote Enclosures • Operates One Lamp Within Multi Lamp Circuits A 3 hour emergency lighting conversion kit which operates with high temperature 7.2V NiCd batteries. The unit is designed to suit a wide range of fluorescent tubes. Order Codes HRN/6-K For the converison of fluorescent tubes from 4W to 125W. Supplied as module, battery and LED kit. HRN/6-R As above, but supplied within a suitable remote enclosure with a connecting loom.

Technical Details: Mains Supply 230-240V AC 50/60 Hz
Power Rating 22mA λ = 0.88 Emergency Duration 3 hours
Battery Type 7.2V 4.5Ah NiCd
Charge Current 200mA
Cut-Off Voltage 6V
Discharge Current 1.05 Amp Tc Point and Temperature 70 °C Case Side Module
Dimensions (LxWxH) 165mm x 45mm x 29mm
Battery Dimensions (LxØ) 2 x 220mm x 37mm
Overall Kit Weight 1.1Kg

LITEPLAN - HRN6-LP Emergency Module

Product form

SKU: HRN6-LP

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£39.93 Excl. VAT

(inc. 20% VAT): £47.92

    • Contact us to confirm availability
      Downloads

    Emergency Module 6 Cell 4-100W Florescent ballast  Suitable for Most Compact Fluorescent Lamps • Deep Discharge Protection • Four Pole... Read more

    Description

    Emergency Module 6 Cell 4-100W Florescent ballast

    Suitable for Most Compact Fluorescent Lamps • Deep Discharge Protection • Four Pole Changeover Relay • Fifth Pole Relay for Ballast Protection • High Temperature NiCd Batteries • Compact Module Dimensions • Can be Provided in Various Remote Enclosures • Operates One Lamp Within Multi Lamp Circuits A 3 hour emergency lighting conversion kit which operates with high temperature 7.2V NiCd batteries. The unit is designed to suit a wide range of fluorescent tubes. Order Codes HRN/6-K For the converison of fluorescent tubes from 4W to 125W. Supplied as module, battery and LED kit. HRN/6-R As above, but supplied within a suitable remote enclosure with a connecting loom.

    Technical Details: Mains Supply 230-240V AC 50/60 Hz
    Power Rating 22mA λ = 0.88 Emergency Duration 3 hours
    Battery Type 7.2V 4.5Ah NiCd
    Charge Current 200mA
    Cut-Off Voltage 6V
    Discharge Current 1.05 Amp Tc Point and Temperature 70 °C Case Side Module
    Dimensions (LxWxH) 165mm x 45mm x 29mm
    Battery Dimensions (LxØ) 2 x 220mm x 37mm
    Overall Kit Weight 1.1Kg
