OBSOLETE, Liteplan replacement detailed below
Obsolete, Liteplan has replaced it with the NLP/1S/80-K . This is what you will be sent including the new battery which you have to use. Do not use the existing battery a new one will be supplied as per the below image

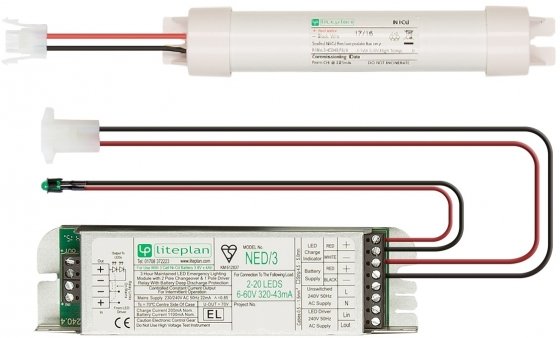

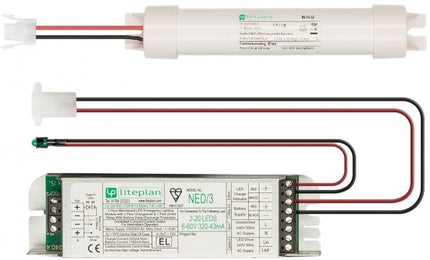

LitePlan NED/3/80-K Module Battery and Charge LED Indicator from Lite-Plan
Model: NED/3/80/KIT
The NED/3/80 Kit is a similar product to the NED/3 Kit, with the voltage range extended from 6-60 Volts to 6-80 Volts converting 2 to 30 LED chips in series. Liteplan's NED emergency lighting conversion modules have been specifically designed to convert a wide range of LED types and automatically adjust to the output current to provide the best match between battery and load, ensuring maximum lumination to battery duration. This product has a load current limit of 2A with an average emergency power of 2.6W.
Technical Specifications
| Control Gear Type |
Conversion Module |
| Accessory Type |
Ballast |
| Wattage |
5W W |
| Manufacturer |
Lite Plan |
| Dimming? |
Non-Dimmable |
| Length |
165 mm |
| Type |
Control Gear |
| LED Current Limit |
320mA |
| Bat. Current Limit |
1100mA |
| Mains Supply |
230-240V AC 50/60 Hz |
| Charge Current |
200mA Nominal |
| Recharge Period |
24 Hours |
| Compatible Lamp Type |
LED |
| Control Gear Technology |
LED |
