LITEPLAN -NED/3-KIT-LP Liteplan Emergency Kit + Battery Please read

Description

This item is obsolete, it has been replaced but the  NLP/1, please see image. You will be supplied with the whole kit including the new battery. Please do not use the existing battery .



THIS IS WHAT YOU WILL BE SENT

NLP/1 Basic Conversion

The NLP/1, is a high quality 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour. Where space inside the luminaire is limited and the battery is deemed too tall, we are able to supply the NLP/1S/80. This is supplied with a slim LiFePO4 battery stick, ideal for slimmer luminaires. The NLP range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.

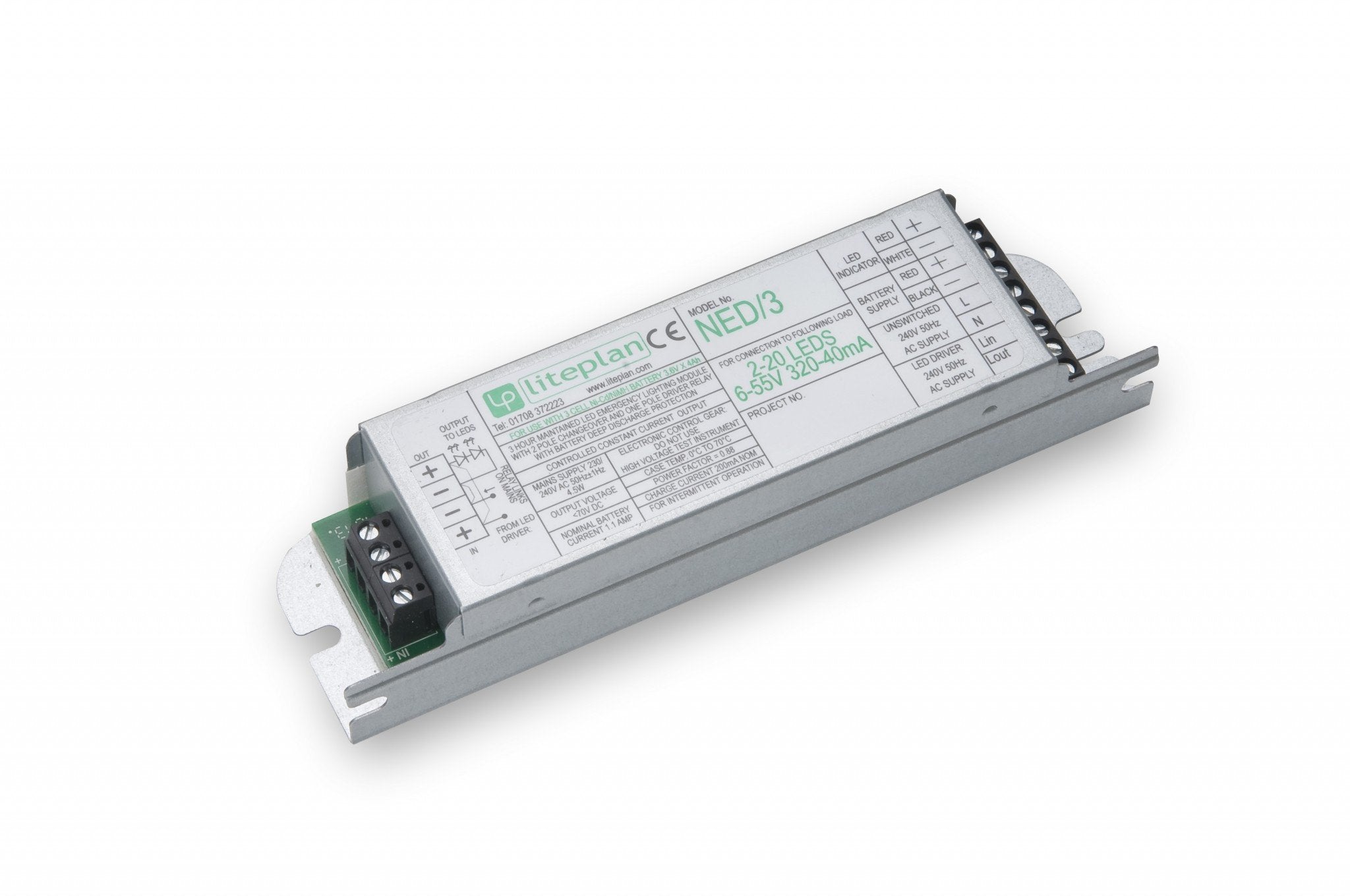

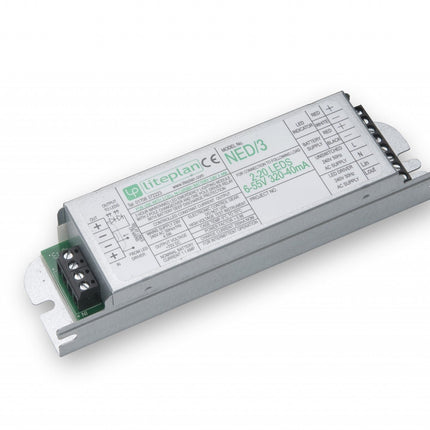

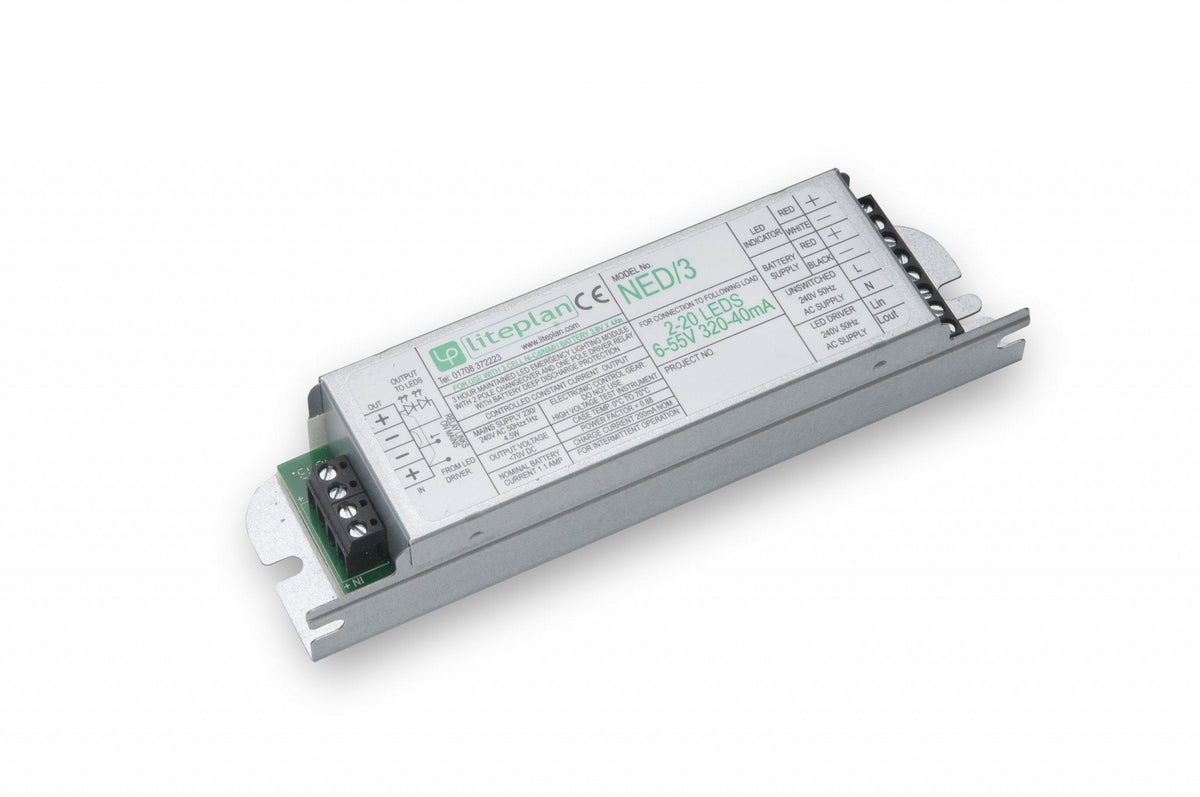

Liteplan Emergency Kit + Battery  - NED/3-KIT

LitePlan NED/3-K Module, Battery and Charge LED Indicator from Lite-Plan

Model: NED/3/KIT

Liteplans NED emergency lighting conversion modules carry ENEC approval and BSI kitemark, and have been specifically designed to convert a wide range of LED types. This standard type NED/3 Kit is the natural choice for converting most standard LED luminaires and arrays, containing 2 to 20 LED chips in series. The NED range automatically adjusts to the output current to provide the best match between the battery and load, maximising illumination whilst ensuring great battery duration.

Technical Specifications

Control Gear Type Conversion Module
Accessory Type Ballast
Wattage 5W W
Manufacturer Lite Plan
Dimming? Non-Dimmable
Length 165 mm
Number of LEDs 2-20 (in series)
Type Control Gear
Batteries 3.0V
Batteries 3.6V 4.5Ah NiCd
LED Voltage Range 6-60V
LED Current Limit 320mA
LED Voltage Limit 60V
Bat. Current Limit 1100mA
Mains Supply 230-240V AC 50/60 Hz
Charge Current 200mA Nominal
Recharge Period 24 Hours
Compatible Lamp Type LED
Control Gear Technology LED

LITEPLAN -NED/3-KIT-LP Liteplan Emergency Kit + Battery Please read

Product form

SKU: NED/3-KIT-LP

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£53.40 Excl. VAT

(inc. 20% VAT): £64.08

    • Contact us to confirm availability
      Downloads

    This item is obsolete, it has been replaced but the  NLP/1, please see image. You will be supplied with the... Read more

    Description

    This item is obsolete, it has been replaced but the  NLP/1, please see image. You will be supplied with the whole kit including the new battery. Please do not use the existing battery .



    THIS IS WHAT YOU WILL BE SENT

    NLP/1 Basic Conversion

    The NLP/1, is a high quality 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour. Where space inside the luminaire is limited and the battery is deemed too tall, we are able to supply the NLP/1S/80. This is supplied with a slim LiFePO4 battery stick, ideal for slimmer luminaires. The NLP range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.



    Liteplan Emergency Kit + Battery  - NED/3-KIT

    LitePlan NED/3-K Module, Battery and Charge LED Indicator from Lite-Plan

    Model: NED/3/KIT

    Liteplans NED emergency lighting conversion modules carry ENEC approval and BSI kitemark, and have been specifically designed to convert a wide range of LED types. This standard type NED/3 Kit is the natural choice for converting most standard LED luminaires and arrays, containing 2 to 20 LED chips in series. The NED range automatically adjusts to the output current to provide the best match between the battery and load, maximising illumination whilst ensuring great battery duration.

    Technical Specifications

    Control Gear Type Conversion Module
    Accessory Type Ballast
    Wattage 5W W
    Manufacturer Lite Plan
    Dimming? Non-Dimmable
    Length 165 mm
    Number of LEDs 2-20 (in series)
    Type Control Gear
    Batteries 3.0V
    Batteries 3.6V 4.5Ah NiCd
    LED Voltage Range 6-60V
    LED Current Limit 320mA
    LED Voltage Limit 60V
    Bat. Current Limit 1100mA
    Mains Supply 230-240V AC 50/60 Hz
    Charge Current 200mA Nominal
    Recharge Period 24 Hours
    Compatible Lamp Type LED
    Control Gear Technology LED
