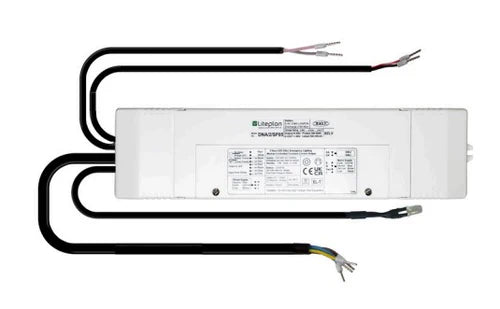

Liteplan NLP/1/SP85-R Remote LED Emergency Conversion Kit 10-55V

Description

Liteplan NLP/1/SP85-R Remote LED Emergency Conversion Kit 10-55V

Replaces Liteplan NED/3/SP98

The NLP/1/SP85-R is supplied as a remote conversion kit designed to be mounted adjacent to the luminaire, where room inside the fitting is limited. A 3 hour emergency lighting conversion kit which operates with Long Life LiFePO4 batteries. The unit is designed to suit an extremely wide range of LED types and circuits. The NLP/1/SP85-R automatically adjusts the output LED current to provide the best match between the battery and the load,
providing maximum illumination whilst ensuring full battery duration. The batteries used with this unit not only provide double the life of traditional emergency lighting batteries, but consume far less power during their operational life.

  • Single Piece Remote Enclosure
  • Deep Discharge Protection
  • Low Power Consumption
  • Long Life LiFePO4 Batteries
  • Average Emergency Power - 2.1W
  • 3rd Party Tested and Certified by TÜV
  • Mains Supply 230-240V AC 50/60 Hz
  • Max Ta and Tc Ta - 50 °C - Tc - 70 °C
  • Power Rating (charging)* 3.8W 23mA λ = 0.69
  • Max Battery Temperature 55 °C
  • Power Rating (standby)* 1.3W 13mA λ = 0.43
  • Duration 3-Hours
  • Battery Discharge Current 900mA nominal
  • Charge Current 225mA Nominal
  • Recharge Period 24-Hours
  • Discharge Voltage Limit 5.0 Volts
  • Battery Size & Type 3.2V 3.8Ah LiFePO4 Cell
  • Ingress Protection IP20
  • Terminal - Push Wire 0.5mm2 - 1.5 mm2
  • Weight 0.1Kg
  • Module Dimensions (LxWxH) 320mm x 75mm x 31mm

Liteplan NLP/1/SP85-R Remote LED Emergency Conversion Kit 10-55V

Product form

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£68.00 Excl. VAT

(inc. 20% VAT): £81.60

    • Contact us to confirm availability
