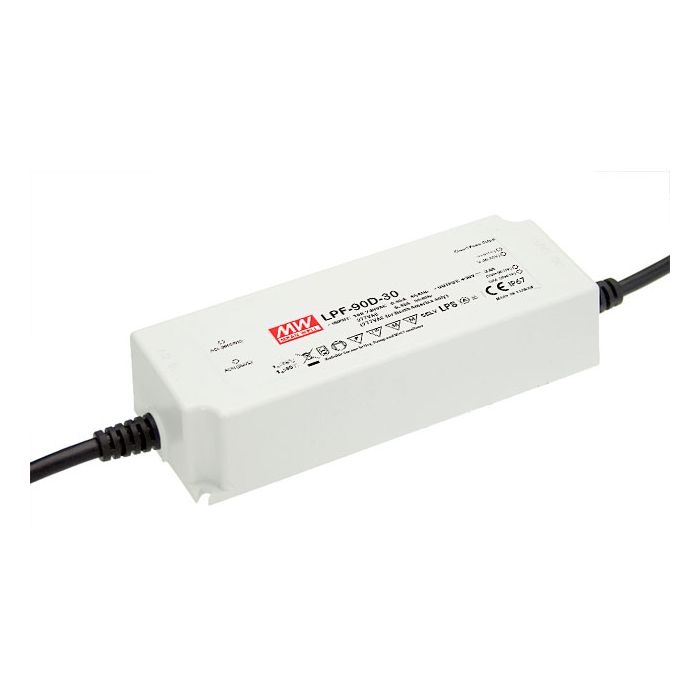

LPF-90D-24 - Mean Well Dimmable LED Driver LPF-90D-24 90W 24V

Description

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC)  / Full RangeBuilt-in active PFC functionFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 90 Output Voltage 24V DC Output Adjustment N/A Dimensions 161 x 61 x 36 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_13.pdf

LPF-90D-24 - Mean Well Dimmable LED Driver LPF-90D-24 90W 24V

Product form

SKU: LPF-90D-24

Trade price available - contact us

£59.21 Excl. VAT

(inc. 20% VAT): £71.05

    • Contact us to confirm availability
      Downloads

    Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/... Read more

    Description

    Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC)  / Full RangeBuilt-in active PFC functionFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
    More Information Manufacturer Mean Well Output Wattage (W) 90 Output Voltage 24V DC Output Adjustment N/A Dimensions 161 x 61 x 36 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_13.pdf
