Description
Emergency module Mackwell 3 Cell - S3CHE

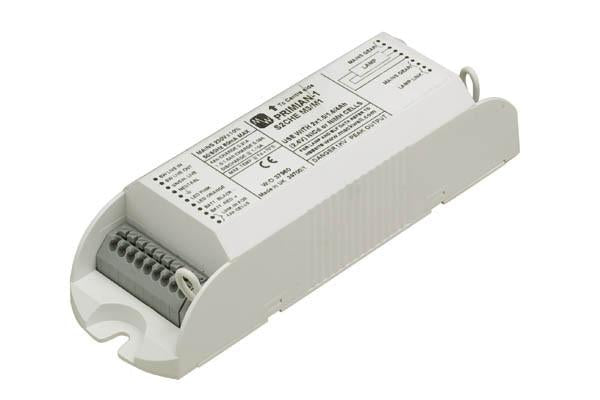

Mackwell PRIMIAN-1 S3CHE Inverter
Introduction
Primian-1™ modules operate a wide range of 4 pin fluorescent lamps and each module is fitted with a lamp optimisation link to ensure the best output and duration across the lamp range.
The 5th pole ensures satisfactory re-starting of HF ballasts after emergency lighting test function.
The Primian-1™ modules are also fitted with a link to select 3 hour or 1 hour duration, with appropriate batteries.
Built with Deep Discharge Protection as standard.
Product Features
- Switch Mode Power Supply runs cooler than traditional iron core transformers
- Selectable 3 hour or 1 hour duration
- Use with 4Ah or 1.5Ah cells
- Use with NiCd or NiMH cells
- Maintained 5 pole ballast switching
- Small size enables simple installation
- 3 year warranty
- Optimisation link for wide range of lamps
Technical Data
Switch Mode Power Supply
Mackwell patented Switch Mode Power Supply provides total short circuit protection, regulated output and complies with all relevant standards.
Ballast Delay Relay
All versions are fitted with an additional relay to switch off the power to the ballast during emergency lighting test.
Indicator
The LED indicator is illuminated when a charge is flowing to the cells. Flexible orange and pink leads connect the indicator to the module. The indicator requires an 8mm hole.
Voltage Sensing Circuit
The AC power supply is sensed so that switching occurs at between 60% and 85% of the nominal mains.
Deep Discharge Protection
All modules are fitted with deep discharge protection (DDP) as standard. The rectified output modules may lead to mercury migration.
| SKU |
S3CHE |
| LENGTH |
150mm |
| WIDTH |
44mm |
| HEIGHT |
35mm |
| MANUFACTURER |
Mackwell |
