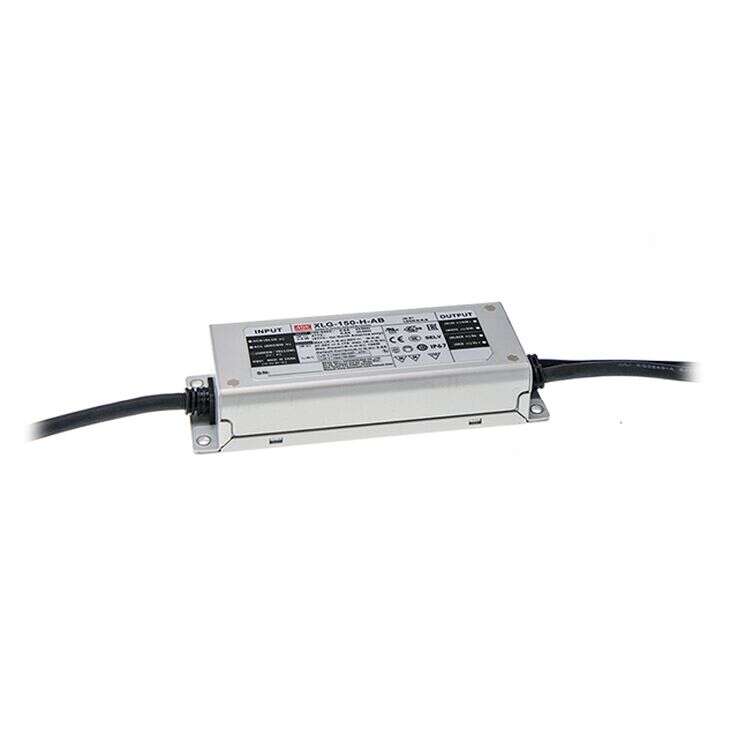

MEAN WELL XLG-150 Constant Voltage LED Driver 150W 12V/24V
Visit the Meanwell range

MEAN WELL XLG-150 Constant Voltage LED Driver 150W 12V/24V

SKU: XLG-150-12-A Type: LED Driver
£43.65
In stock / available to order

MEAN WELL XLG-150-12/24-A Constant Voltage LED Driver 150W 12V Features:

Wide input range 100-305VAC(Class I)

Metal case with IP67 , suitable for outdoor application

Other features:

  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • 3in1 dimming function (Dim to off and Isolation design)
  • Protection functions: OVP/SCP/OCP/OTP
  • Life time >50,000hrs. and 5 years warranty
Wattage 150
Input Voltage 100-305VAC, 142-431VDC
Output Current 12.5A
Output Voltage Options Single
DC output adjustment 8.4-12V
Working Temperature -40 - +95C
Safety Standards UL8750ENEC EN61347-1, EN61347-2-13 independent, EN62384(typebHLb), UL879,CSA C22.2 No. 250.13-12, GB19510.1 GB19510.14,; EAC TP TC 004;IS15885(Part2/Sec13)(for XLG-150I type only);IP67 approved
Dimensions 180 x 63 x 35.5
