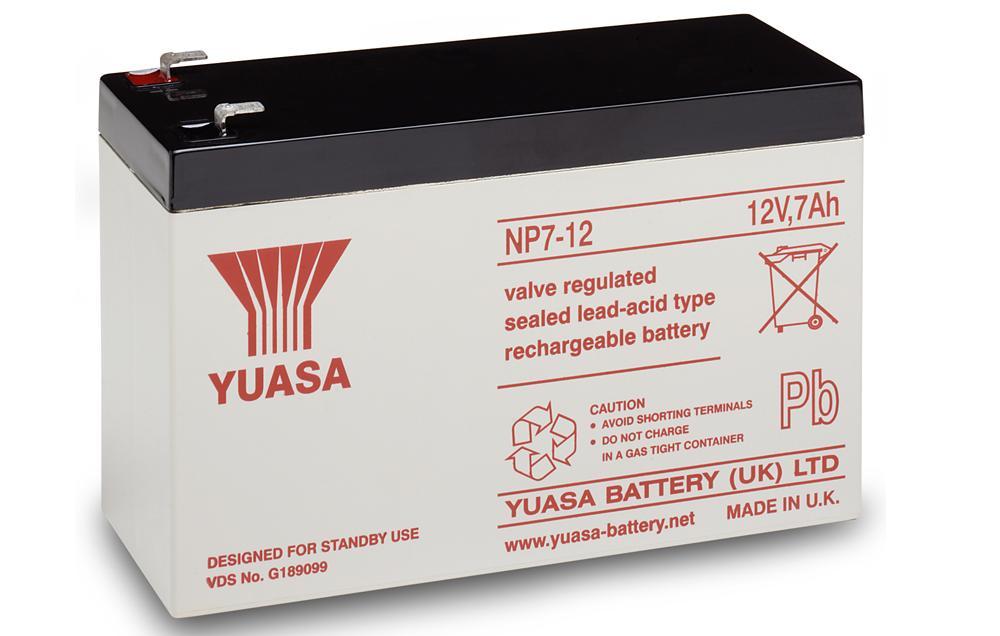

NP7-12 Yuasa 12v 7Ah Lead Acid Battery

Description

Yuasa NP7-12 12v 7Ah Valve Regulated Sealed Lead Acid Battery, commonly used in alarm and security systems, emergency lighting, UPS and other back up power systems.


MSDS: Yuasa NP7-12 MSDS

Brand : Yuasa
Voltage : 12v
Capacity : 7ah
Weight : 2.65kg
Dimensions : 151mm x 65mm x 98mm

Yuasa NP7-12, 12v 7Ah Sealed Lead Acid / VALVE REGULATED LEAD ACID Battery

Dimensions : 151mm Long X 65mm Wide X 98mm High (Over Terminals).

Terminals : 4.8mm / 0.187" Wide Male Spade Connection (for 6.3mm / 0.25" terminal see NP7-12L)

Battery Type: Standby battery

Design life : 3 - 5 Year design life when used in standby applications.

Commonly used in Alarm Systems, Emergency Lighting,Torches, UPS systems and other electrical systems
YUASA NP7-12 is used primarily in Fire alarms & Scurity Alarm pannels, but can br used in numerous other applications inc. UPS, Emergency lighting, Stairlifts etc.

Yuasa NP7-12 batteries utilize Yuasas unique electrolyte suspension system incorporating a microfine glass mat to retain the maximum amount of electrolyte in the cells. The electrolyte is retained in the separator material and there is no free electrolyte to escape from the cells. No gels or other contaminants are added. The combination of sealed construction and Yuasas unique electrolyte suspension system allows operation in any orientation, with no loss of performance or fear of electrolyte leakage. (Excluding continuous use inverted)
Yuasa NP7-12 batteries are equipped with a simple, safe low pressure venting system which releases excess gas and automatically reseals should there be a build up of gas within the battery due to severe overcharge. Note. On no account should the battery be charged in a sealed container.
The heavy duty lead calcium alloy grids provide an extra margin of performance and life in both cyclic and float applications and give unparalleled recovery from deep discharge

CAUTION
- Do not Short Circuit
- Do not charge in a sealed container
- Service life and operational characteristics will be affected by temperature
- AC Ripple reduces service life.

NP7-12 Yuasa 12v 7Ah Lead Acid Battery

Product form

SKU: BA-yu14
Barcode: NP7-12

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£16.54 Excl. VAT

(inc. 20% VAT): £19.85

    • Contact us to confirm availability
      Downloads

    Yuasa NP7-12 12v 7Ah Valve Regulated Sealed Lead Acid Battery, commonly used in alarm and security systems, emergency lighting, UPS... Read more

    Description

    Yuasa NP7-12 12v 7Ah Valve Regulated Sealed Lead Acid Battery, commonly used in alarm and security systems, emergency lighting, UPS and other back up power systems.


    MSDS: Yuasa NP7-12 MSDS

    Brand : Yuasa
    Voltage : 12v
    Capacity : 7ah
    Weight : 2.65kg
    Dimensions : 151mm x 65mm x 98mm

    Yuasa NP7-12, 12v 7Ah Sealed Lead Acid / VALVE REGULATED LEAD ACID Battery

    Dimensions : 151mm Long X 65mm Wide X 98mm High (Over Terminals).

    Terminals : 4.8mm / 0.187" Wide Male Spade Connection (for 6.3mm / 0.25" terminal see NP7-12L)

    Battery Type: Standby battery

    Design life : 3 - 5 Year design life when used in standby applications.

    Commonly used in Alarm Systems, Emergency Lighting,Torches, UPS systems and other electrical systems
    YUASA NP7-12 is used primarily in Fire alarms & Scurity Alarm pannels, but can br used in numerous other applications inc. UPS, Emergency lighting, Stairlifts etc.

    Yuasa NP7-12 batteries utilize Yuasas unique electrolyte suspension system incorporating a microfine glass mat to retain the maximum amount of electrolyte in the cells. The electrolyte is retained in the separator material and there is no free electrolyte to escape from the cells. No gels or other contaminants are added. The combination of sealed construction and Yuasas unique electrolyte suspension system allows operation in any orientation, with no loss of performance or fear of electrolyte leakage. (Excluding continuous use inverted)
    Yuasa NP7-12 batteries are equipped with a simple, safe low pressure venting system which releases excess gas and automatically reseals should there be a build up of gas within the battery due to severe overcharge. Note. On no account should the battery be charged in a sealed container.
    The heavy duty lead calcium alloy grids provide an extra margin of performance and life in both cyclic and float applications and give unparalleled recovery from deep discharge

    CAUTION
    - Do not Short Circuit
    - Do not charge in a sealed container
    - Service life and operational characteristics will be affected by temperature
    - AC Ripple reduces service life.
