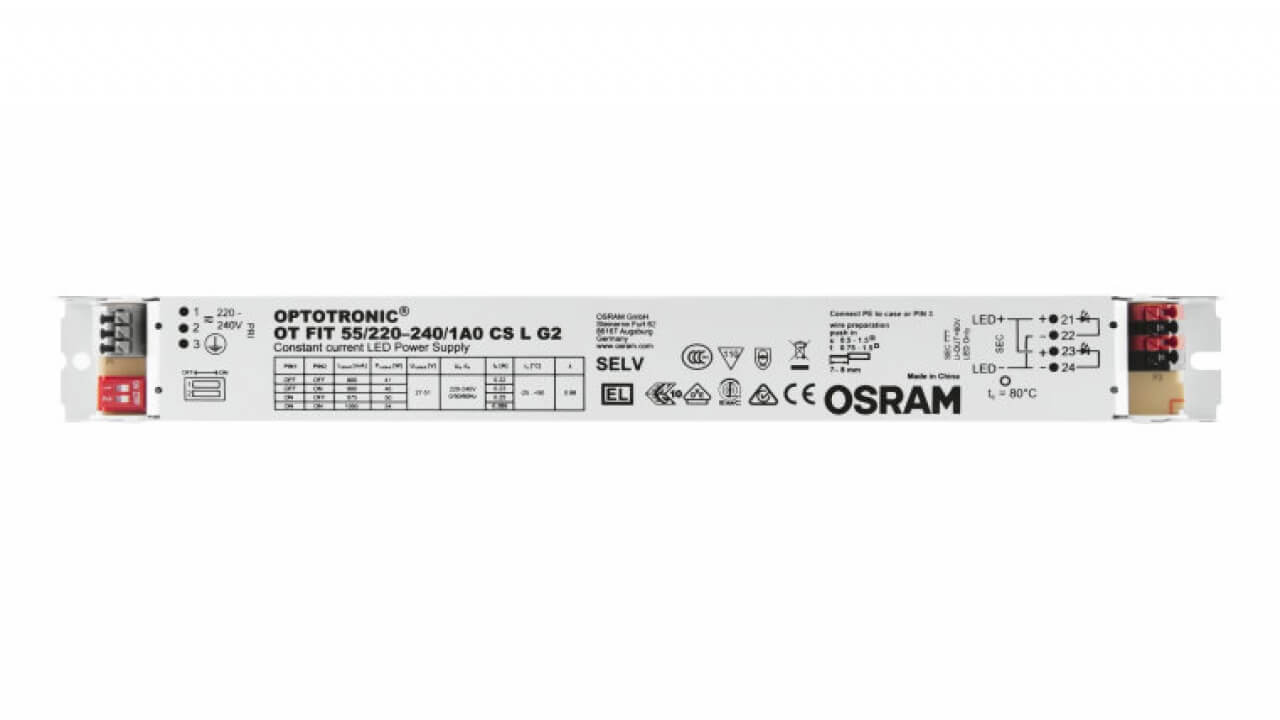

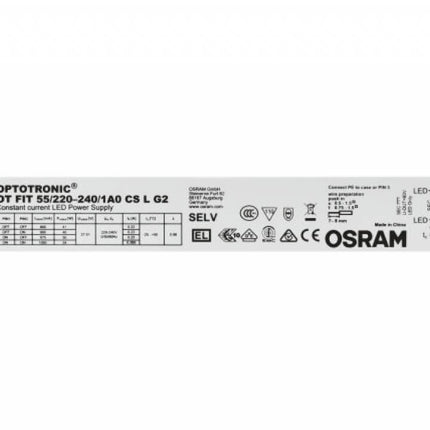

Osram Optotronic OT FIT 55/220-240/1A0 CS L G2 4052899522558

Description

Product family benefits
  • Flexible current setting (DIPswitch – 4 currents)
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • High efficiency
  • High quality of light thanks to low output ripple current
  • Fulfil safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
  • Linear lighting for office, education, industry, storage areas and retail
  • Suitable for luminaires of protection class I
German innovation awards 2019 winnerData sheet


Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

0/50/60 Hz

Input voltage AC

198…264 V


Current set

DipSwitch

Input voltage DC

176…276 V

Total harmonic distortion

< 10 %

Power factor λ

0.98

Device power loss

7.0 W

Inrush current

20 A

Max. ECG no. on circuit breaker 10 A (B)

16

Max. ECG no. on circuit breaker 16 A (B)

25

Max. ECG no. on circuit breaker 25 A (B)

-

Surge capability (L/N-Ground)

2 kV

Surge capability (L-N)

1 kV

Nominal output voltage

27…51 V

U-OUT (working voltage)

< 60 V

Nominal output current

800 / 900 / 975 / 1050 mA

Output current tolerance

±7.5 %

Output ripple current (100 Hz)

< 5 %

Output PSTLM

≤1

Output SVM

≤0.4

Nominal output power

21.6…53.6 W

Galvanic isolation

SELV

Dimensions & weight

Mounting hole spacing, length

270.0 mm

Product weight

217.00 g

Cable cross-section, input side

0.5…1.5 mm²

Cable cross-section, output side

0.5…1.5 mm²

Wire preparation length, input side

8.5…9.5 mm

Wire preparation length, output side

8.5…9.5 mm

Length

280.0 mm

Width

30.0 mm

Height

21.0 mm

Colors & materials

Casing material

Metal

Temperatures & operating conditions

Ambient temperature range

-25…+50 °C

Maximum temperature at tc test point

80 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-25…85 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

50000 / 100000 h


Capabilities

Dimmable

No

Overheating protection

Automatic reversible

Overload protection

Non-reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Max. cable length to lamp/LED module

2.0 m


Suitable for fixtures with prot. class

I

Type of connection, output side

Push terminal

Number of channels

1

Programming

Programming device

DIPswitch

Certificates & standards

Approval marks – approval

CE / EL / ENEC 05 / EAC / CCC / RCM / BIS

Standards

Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 62384/Acc. to EN 61000-3-2/Acc. to EN 61000-3-3/Acc. to EN 61547

Protection class

I

Type of protection

IP20

Logistical data

Commodity code

850440829000

Osram Optotronic OT FIT 55/220-240/1A0 CS L G2 4052899522558

Product form

SKU: OTFIT55220-OS
Barcode: 4052899522558

Trade price available - contact us

£27.66 Excl. VAT

(inc. 20% VAT): £33.19

    • Contact us to confirm availability
