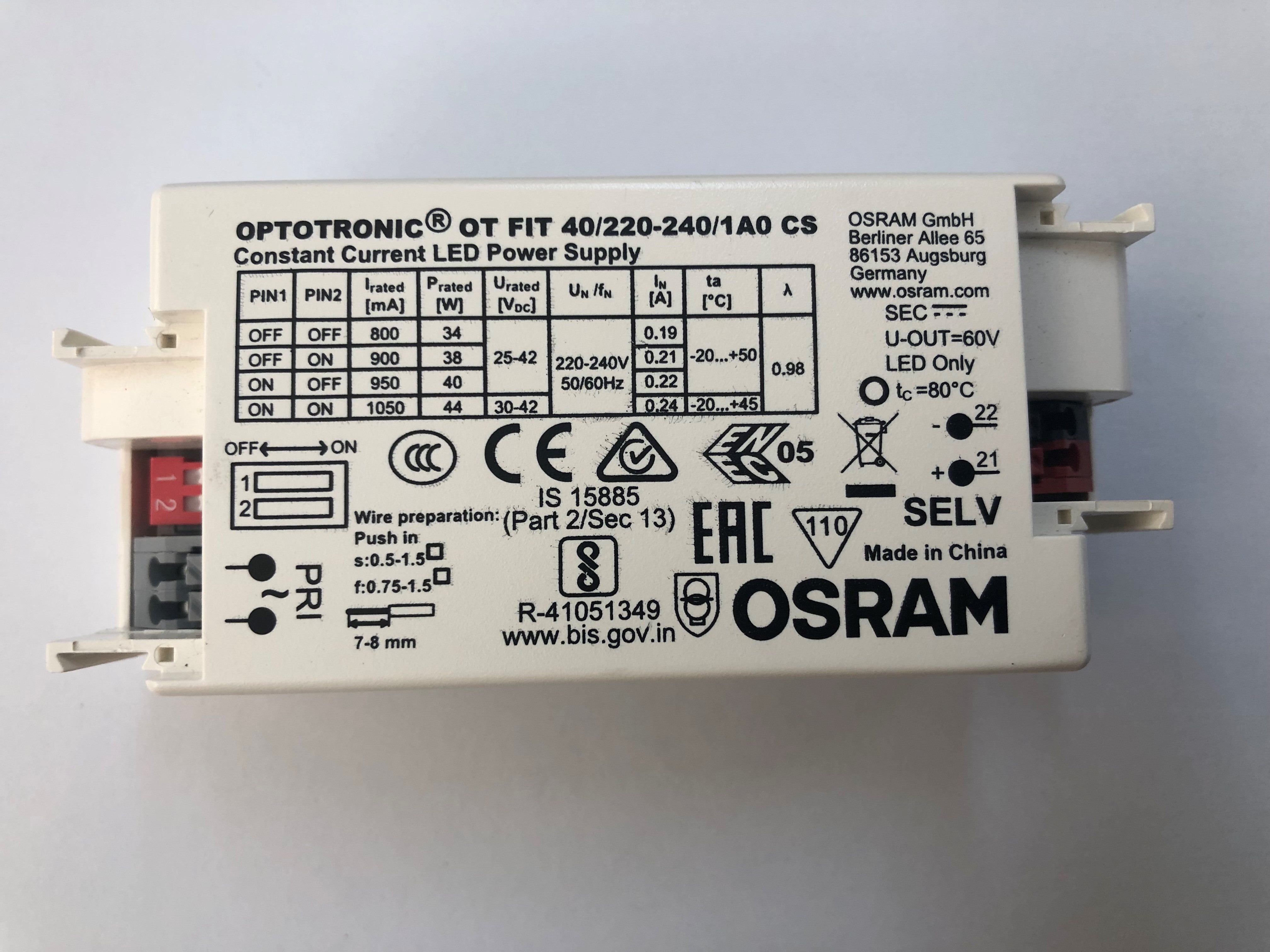

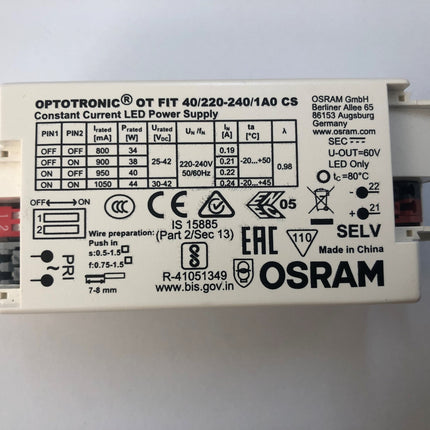

OT FIT 40/220-240/1A0 CS G2 4052899435650

Description

TECHNICAL DATA Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Total harmonic distortion < 10 % Power factor λ 0.98 ECG efficiency 90 % 1) Device power loss 4.9 W 2) Protective conductor current <0.7 mA Inrush current < 16 A 3) Max. ECG no. on circuit breaker 10 A (B) 16 Max. ECG no. on circuit breaker 16 A (B) 25 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 25…42 V U-OUT (working voltage) 60 V Nominal output current 800 / 900 / 1050 / 950 mA Output current tolerance ±7.5 % Output ripple current (100 Hz) < 5 % Nominal output power 20…44 W Galvanic isolation SELV

OT FIT 40/220-240/1A0 CS G2 4052899435650

Product form

SKU: OTFIT40220-OS
Barcode: 4052899435650

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£17.70 Excl. VAT

(inc. 20% VAT): £21.24

    • Contact us to confirm availability
      Downloads

    TECHNICAL DATA Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Total harmonic distortion... Read more

    Description

    TECHNICAL DATA Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage AC 198…264 V Total harmonic distortion < 10 % Power factor λ 0.98 ECG efficiency 90 % 1) Device power loss 4.9 W 2) Protective conductor current <0.7 mA Inrush current < 16 A 3) Max. ECG no. on circuit breaker 10 A (B) 16 Max. ECG no. on circuit breaker 16 A (B) 25 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 25…42 V U-OUT (working voltage) 60 V Nominal output current 800 / 900 / 1050 / 950 mA Output current tolerance ±7.5 % Output ripple current (100 Hz) < 5 % Nominal output power 20…44 W Galvanic isolation SELV
