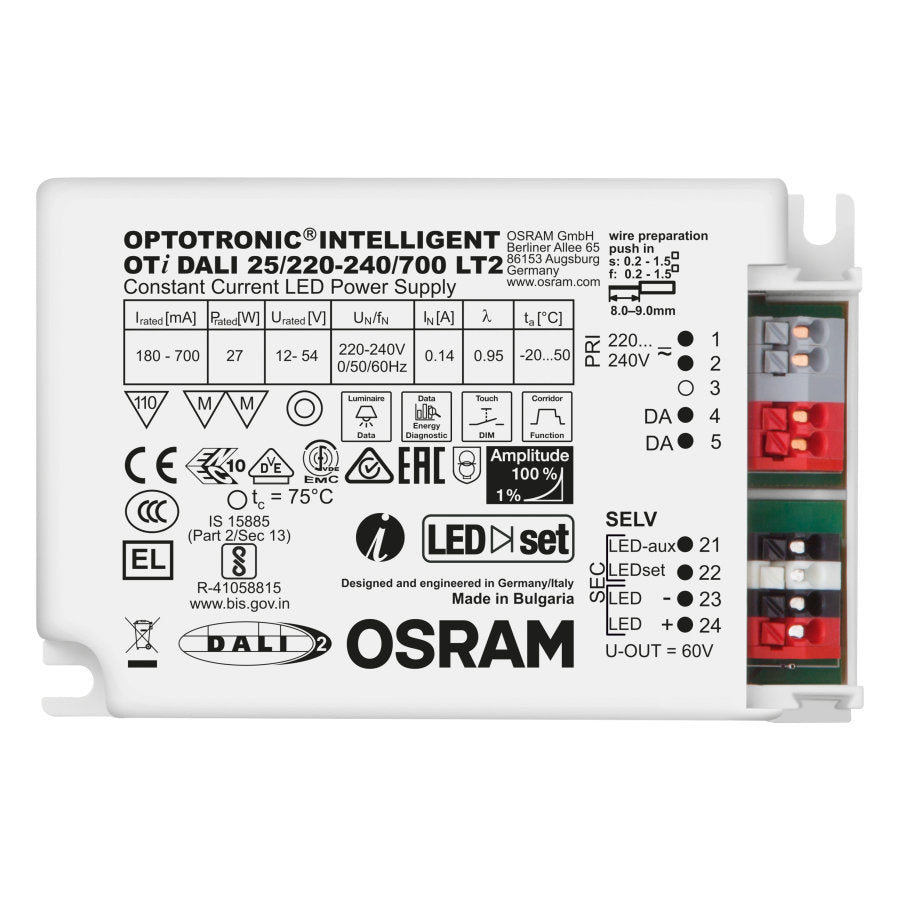

OTi DALI 25/220-240/700 LT2

Description

Nominal input voltage

220…240 V

Mains frequency

0/50/60 Hz

Input voltage AC

198…264 V


Input voltage DC

176…276 V

Total harmonic distortion

< 20 %


Power factor λ

> 0.95

ECG efficiency

88 %


Device power loss

4.5 W

Power loss in stand-by mode

<0.1 W

Inrush current

< 20 A


Max. ECG no. on circuit breaker 10 A (B)

50

Max. ECG no. on circuit breaker 16 A (B)

80

Max. ECG no. on circuit breaker 25 A (B)

-

Surge capability (L/N-Ground)

2 kV

Surge capability (L-N)

1 kV

Nominal output voltage

12…54 V


U-OUT (working voltage)

60 V

Nominal output current

180…700 mA


Output current LEDset open

90 mA

Output current LEDset shorted

500 mA

Default output current

500 mA


Output current tolerance

±3 %

Output ripple current (100 Hz)

< 1 %


Output PSTLM

≤1

Output SVM

≤0.4

Nominal output power

27 W


Galvanic isolation

SELV

Dimensions & weight

Mounting hole spacing, length

94.0 mm

Mounting hole spacing, width

58.0 mm

Product weight

149.00 g

Cable cross-section, input side

0.2…1.5 mm²


Cable cross-section, output side

0.2…1.5 mm²


Wire preparation length, input side

8.0…9.0 mm

Wire preparation length, output side

8.0…9.0 mm

Height

29.5 mm

Length

103.0 mm

Width

67.0 mm

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Maximum temperature at tc test point

75 °C


Max.housing temperature in case of fault

110 °C

Temperature range at storage

-25…85 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

50000 / 100000 h


Capabilities

Dimmable

Yes

Dimming interface

DALI / Touch DIM / Touch DIM Sensor

Dimming range

1…100 %


Dimming method

Amplitude Modulation

Constant lumen function

Programmable

Overheating protection

Automatic reversible

Overload protection

Automatic reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Max. cable length to lamp/LED module

2.0 m

Suitable for fixtures with prot. class

I / II

Type of connection, output side

Push terminal

Number of channels

1

Programming interface

DALI, LEDset

DALI-2 Diagnostic Data

Yes


DALI-2 Energy Data

Yes


Programming

Tuner4TRONIC Field App

No

Programming device

DALI / LEDset

Programmable features

Lamp Operating Time

Yes

Driver Guard

No

DALI Settings

Yes

Emergency Mode

Yes

DALI-2 Luminaire Data

Yes


Configuration Lock

No

Soft Switch Off

Yes

Dim to Dark

No

TouchDIM + Sensor

Yes

Corridor Functionality

Yes

OEM Key

Yes

Certificates & standards

Approval marks – approval

ENEC 10 / VDE / EMC / EL / CE / DALI-2

Standards

Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1

Protection class

II

Type of protection


OTi DALI 25/220-240/700 LT2

Product form

SKU: OTIDALI25-OS
Barcode: 4052899488144

Trade price available - contact us

£37.21 Excl. VAT

(inc. 20% VAT): £44.65

    • Contact us to confirm availability
