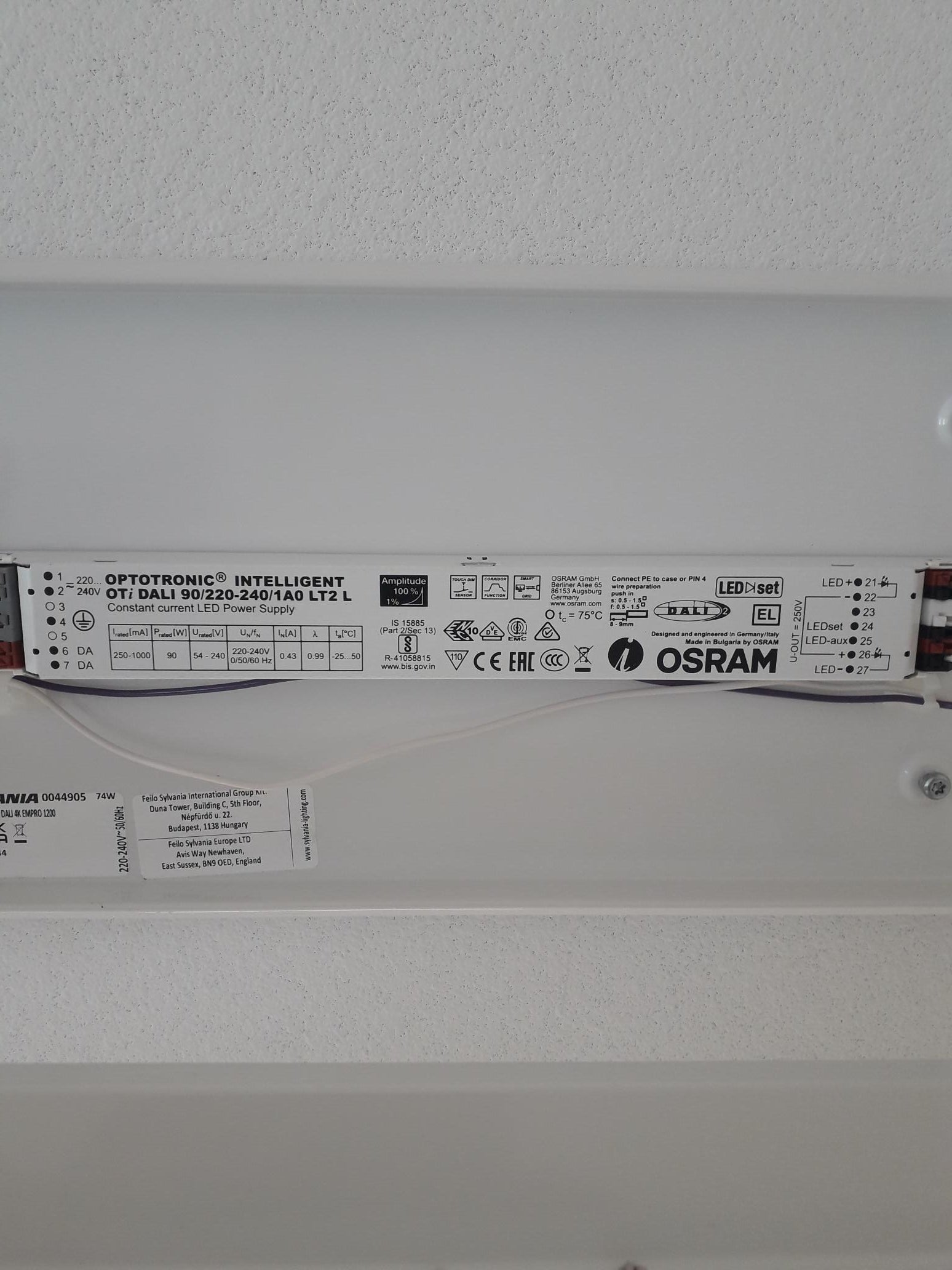

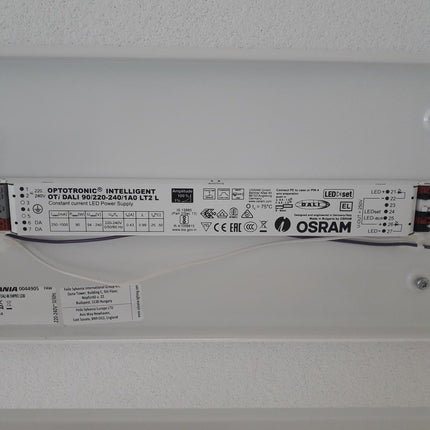

OTi DALI 90/220-240/1A0 LT2 L

Description

Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage AC

198…264 V


Input voltage DC

176…276 V

Current set

DALI / LEDset / Programmable

Total harmonic distortion

< 10 %

Power factor λ

> 0.95


ECG efficiency

up to 94 %


Device power loss

9.0 W


Power loss in stand-by mode

<0.25 W

Inrush current

25 A


Max. ECG no. on circuit breaker 10 A (B)

15

Max. ECG no. on circuit breaker 16 A (B)

24

Max. ECG no. on circuit breaker 25 A (B)

29

Surge capability (L/N-Ground)

2 kV

Surge capability (L-N)

1 kV

Nominal output voltage

54…240 V


U-OUT (working voltage)

< 250 V

Nominal output current

250…1000 mA

Output current LEDset open

125 mA

Output current LEDset shorted

250 mA

Default output current

125 mA


Output current tolerance

±3 %


Output ripple current (100 Hz)

< 1 %

Output PSTLM

≤1

Output SVM

≤0.4

Nominal output power

13.5…90 W

Galvanic isolation

Non isolated

Dimensions & weight

Mounting hole spacing, length

270.0 mm

Product weight

205.00 g

Cable cross-section, input side

0.5…1.5 mm²


Cable cross-section, output side

0.5…1.5 mm²


Wire preparation length, input side

8.5…9.5 mm

Wire preparation length, output side

8.5…9.5 mm

Height

21.0 mm

Width

30.0 mm

Length

280.0 mm

Colors & materials

Casing material

Metal

Temperatures & operating conditions

Ambient temperature range

-25…+50 °C

Maximum temperature at tc test point

75 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-25…85 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

50000 / 100000 h


Additional product data

Encapsulated

No

Capabilities

Programming interface

DALI, LEDset

Dimmable

Yes

Dimming interface

DALI-2 / Touch DIM / Touch DIM Sensor

Dimming range

1…100 %


Dimming method

Full analogue dimming

Overheating protection

Automatic reversible

Overload protection

Automatic reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Max. cable length to lamp/LED module

2.0 m

Suitable for fixtures with prot. class

I

Suitable for emergency lighting

Yes

Type of connection, input side

Push terminal

Type of connection, output side

Push terminal

Number of channels

1

Control interface

DALI

Programming

Tuner4TRONIC Field App

Yes

Programming device

DALI magic

Tuner4TRONIC

Yes

Certificates & standards

Approval marks – approval

CE / EL / VDE-ENEC / VDE-EMC / EAC / CCC / BIS / RCM

Standards

Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386

Type of protection

IP20

Logistical data

OTi DALI 90/220-240/1A0 LT2 L

Product form

SKU: OTIDALI90
Barcode: 4052899494268

Trade price available - contact us

£63.42 Excl. VAT

(inc. 20% VAT): £76.10

    • Contact us to confirm availability
