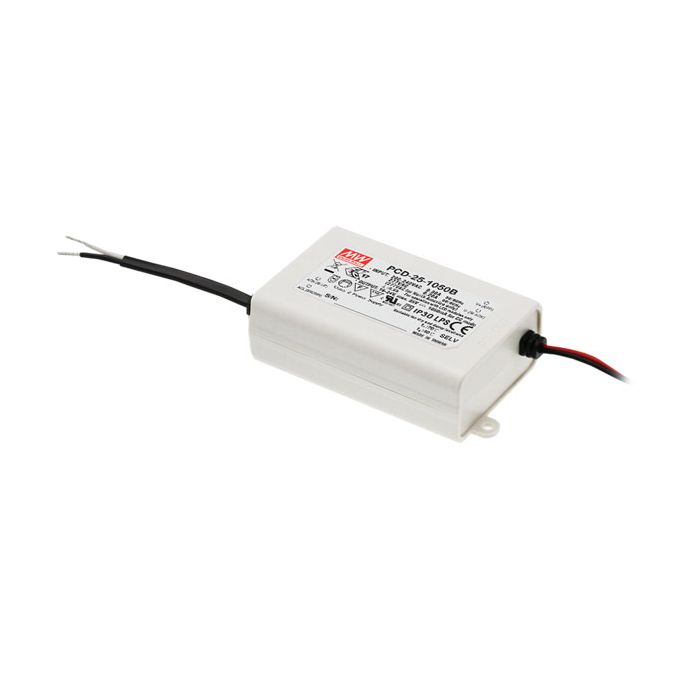

PCD-25-1050B - Mean Well LED Driver PCD-25-1050B 25W 1050mA

Description

AC phase-cut dimmingConstant current designProtections: Short circuit/ Over temperatureOther features:180~295VAC inputFully isolated plastic caseBuilt-in active PFC functionIP30 designClass 2 power unit/ Pass LPSIsolation class II, no F.G.Cooling by free air convection3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Current 1050mA Dimmable (Type) AC phase-cut Output Voltage Range (V) 16~24 Dimensions 84x 57x 29.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 Input Voltage 180~295VAC Safety Standards UL8750, ENEC EN61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C (refer to output derating curve) PDF Datasheet PCD-25-spec_1.pdf

PCD-25-1050B - Mean Well LED Driver PCD-25-1050B 25W 1050mA

Product form

SKU: PCD-25-1050B

Trade price available - contact us

£23.75 Excl. VAT

(inc. 20% VAT): £28.50

    • Contact us to confirm availability
      Downloads

    AC phase-cut dimmingConstant current designProtections: Short circuit/ Over temperatureOther features:180~295VAC inputFully isolated plastic caseBuilt-in active PFC functionIP30 designClass 2 power... Read more

    Description

    AC phase-cut dimmingConstant current designProtections: Short circuit/ Over temperatureOther features:180~295VAC inputFully isolated plastic caseBuilt-in active PFC functionIP30 designClass 2 power unit/ Pass LPSIsolation class II, no F.G.Cooling by free air convection3 years warranty
    More Information Manufacturer Mean Well Output Wattage (W) 25 Output Current 1050mA Dimmable (Type) AC phase-cut Output Voltage Range (V) 16~24 Dimensions 84x 57x 29.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 Input Voltage 180~295VAC Safety Standards UL8750, ENEC EN61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C (refer to output derating curve) PDF Datasheet PCD-25-spec_1.pdf
