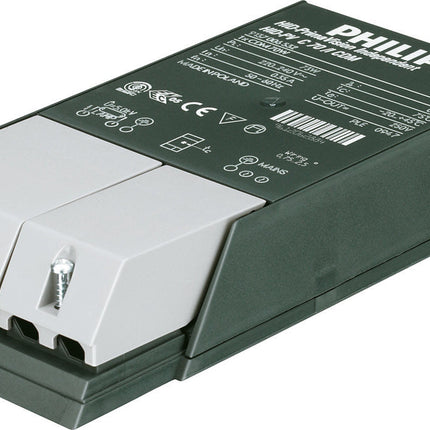

Philips HID-PV C 70 /I CDM Order code: 85988100

Description

The Philips HID-PV C 70 /l CDM electronic ballast comes complete with strain relief and runs 1x70w metal halide lamps.this ballast is available as independent (/I) for independent use on a (false) ceiling, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.

Full Product Code: 872790085988100

Specifications

General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Type version
ng
Lamp type
CDM
Number of lamps
1 piece/unit
Suitable for outdoor use
No
Number of products on MCB (16 A type B) (nom.)
20
Automatic restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Operating frequency (nom.)
0.14 kHz
Power factor 100% load (nom.)
0.95
Ignition voltage (max.)
4.0 kV
Ignition switch-off time (nom.)
18 min
Mains voltage performance (AC)
-10%-+6%
Mains voltage safety (AC)
-18%-+10%
Earth leakage current (max.)
0.25 mA
Inrush current width
0.33 ms
Constant wattage deviation
-3%/+3%
Power losses (nom.)
7.0 W
Inrush current peak (max.)
33 A
Wiring
Cable capacity output wires mutual (nom.)
150 pF
Cable length from device to lamp
2.0 m
Ballast contact wire cross section
0.50-2.50 mm²
Connector type
Insert
System characteristics
Rated ballast-lamp power
70 W

Temperature
T-ambient (max.)
45 °C
T-ambient (min.)
-20 °C
T storage (max.)
75 °C
T storage (min.)
-25 °C
T-case lifetime (nom.)
75 °C
T-Case maximum (max.)
75 °C
Mechanical and Housing
Housing
/I

Approval and Application
Active temperature protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2
Safety standard
EN 61347-2-12
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
EN 61000-3-2
EMC immunity standard
EN 61547
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Humidity standard
IEC 928-13
Approval marks

CE marking

ENEC certificate
Temperature marking
F
Humming and noise level
37 dB(A)
Product Data
Full product code
872790085988100
Order product name
HID-PV C 70 /I CDM 220-240V 50/60Hz NG
EAN/UPC – product
8711500881717
Order code
85988100
Local order code
PVC070ICDM
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700653266
SAP net weight (piece)
0.360 kg

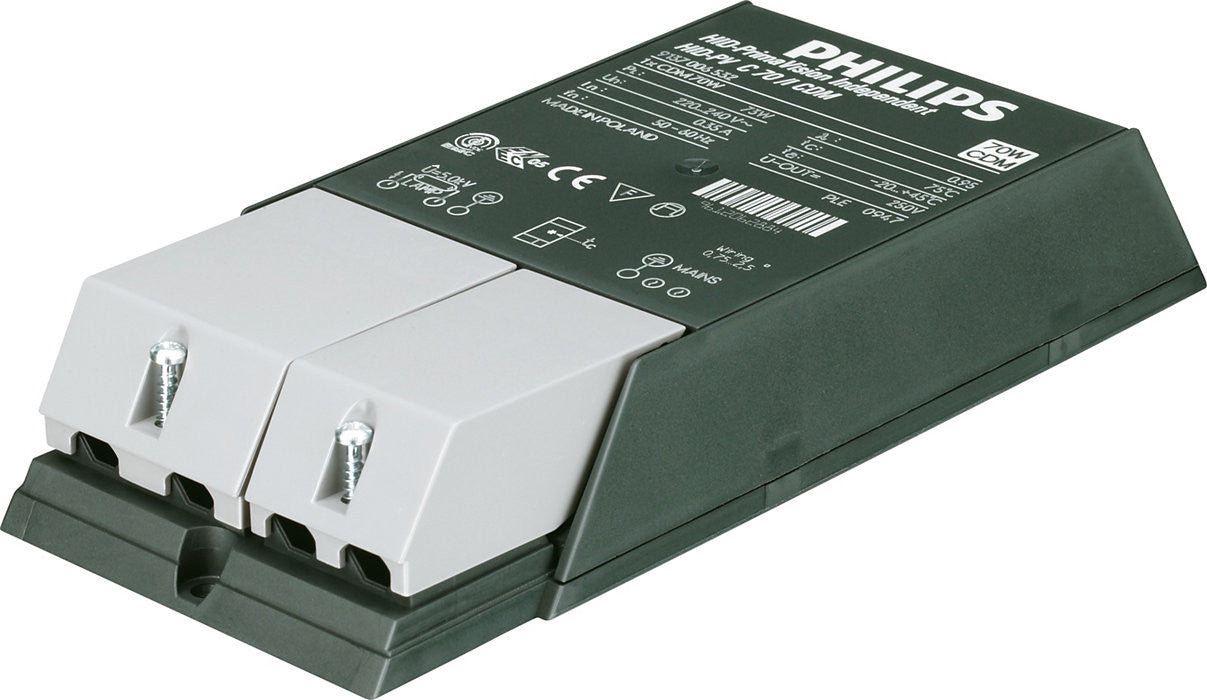

Philips HID-PV C 70 /I CDM Order code: 85988100

Product form

SKU: PVC70I-PH
Barcode: 913700653266

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£31.01 Excl. VAT

(inc. 20% VAT): £37.21

    • Contact us to confirm availability
      Downloads

    The Philips HID-PV C 70 /l CDM electronic ballast comes complete with strain relief and runs 1x70w metal halide lamps.this... Read more

    Description

    The Philips HID-PV C 70 /l CDM electronic ballast comes complete with strain relief and runs 1x70w metal halide lamps.this ballast is available as independent (/I) for independent use on a (false) ceiling, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.

    Full Product Code: 872790085988100

    Specifications

    General Information
    Remarks
    UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
    Type version
    ng
    Lamp type
    CDM
    Number of lamps
    1 piece/unit
    Suitable for outdoor use
    No
    Number of products on MCB (16 A type B) (nom.)
    20
    Automatic restart
    Yes
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input frequency
    50 to 60 Hz
    Operating frequency (nom.)
    0.14 kHz
    Power factor 100% load (nom.)
    0.95
    Ignition voltage (max.)
    4.0 kV
    Ignition switch-off time (nom.)
    18 min
    Mains voltage performance (AC)
    -10%-+6%
    Mains voltage safety (AC)
    -18%-+10%
    Earth leakage current (max.)
    0.25 mA
    Inrush current width
    0.33 ms
    Constant wattage deviation
    -3%/+3%
    Power losses (nom.)
    7.0 W
    Inrush current peak (max.)
    33 A
    Wiring
    Cable capacity output wires mutual (nom.)
    150 pF
    Cable length from device to lamp
    2.0 m
    Ballast contact wire cross section
    0.50-2.50 mm²
    Connector type
    Insert
    System characteristics
    Rated ballast-lamp power
    70 W

    Temperature
    T-ambient (max.)
    45 °C
    T-ambient (min.)
    -20 °C
    T storage (max.)
    75 °C
    T storage (min.)
    -25 °C
    T-case lifetime (nom.)
    75 °C
    T-Case maximum (max.)
    75 °C
    Mechanical and Housing
    Housing
    /I

    Approval and Application
    Active temperature protection
    Yes
    EMI 9 kHz ... 300 MHz
    CISPR 15 ed 7.2
    Safety standard
    EN 61347-2-12
    Quality standard
    ISO 9000:2000
    Environmental standard
    ISO 14001
    Harmonic current emission standard
    EN 61000-3-2
    EMC immunity standard
    EN 61547
    Vibration standard
    IEC68-2-6 F c
    Bumps standard
    IEC 68-2-29 Eb
    Humidity standard
    IEC 928-13
    Approval marks

    CE marking

    ENEC certificate
    Temperature marking
    F
    Humming and noise level
    37 dB(A)
    Product Data
    Full product code
    872790085988100
    Order product name
    HID-PV C 70 /I CDM 220-240V 50/60Hz NG
    EAN/UPC – product
    8711500881717
    Order code
    85988100
    Local order code
    PVC070ICDM
    SAP numerator – quantity per pack
    1
    Numerator – packs per outer box
    12
    SAP material
    913700653266
    SAP net weight (piece)
    0.360 kg
