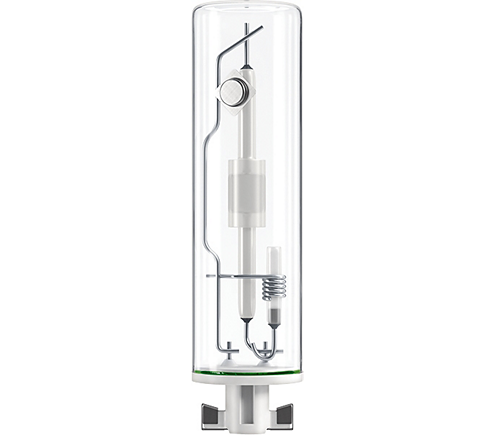

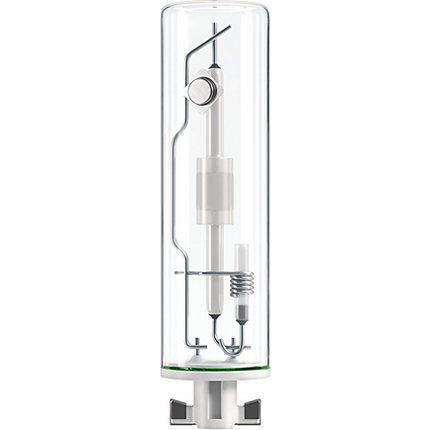

Philips MASTER Colour CDM-Tm Mini 20W/35W 830 PGJ5 1CT/12

Description

Specifications

General Information
Cap-Base
PGJ5  [ PGJ5]
Operating Position
UNIVERSAL  [ Any or Universal (U)]
Life to 5% Failures (Nom)
9000 h
Life To 10% Failures (Nom)
10000 h
Life to 20% Failures (Nom)
11000 h
Life to 50% Failures (Nom)
12000 h
Light Technical
Color Code
830  [ CCT of 3000K]
Luminous Flux (Rated) (Nom)
1600 lm
Color Designation
Warm White (WW)
Lumen Maintenance 1000 h (Nom)
80 %
Lumen Maintenance 10000 h (Nom)
60 %
Lumen Maintenance 2000 h (Nom)
75 %
Lumen Maintenance 5000 h (Nom)
65 %
Chromaticity Coordinate X (Nom)
0.433
Chromaticity Coordinate Y (Nom)
0.392
Correlated Color Temperature (Nom)
3000 K
Luminous Efficacy (rated) (Nom)
72 lm/W
Color Rendering Index (Min)
84
Color Rendering Index (Nom)
87
Operating and Electrical
Power (Nom)
22.1 W
Lamp Current Run-Up (Max)
.5 A
Re-Ignition Time (Min) (Max)
15 min
Ignition Time (Max)
30 s
Voltage (Max)
108 V
Voltage (Min)
95 V
Voltage (Nom)
100 V
Controls and Dimming
Dimmable
No
Run-Up Time 90% (Max)
3 min

Mechanical and Housing
Bulb Finish
Clear

Approval and Application
Energy Efficiency Label (EEL)
A
Mercury (Hg) Content (Nom)
2.4 mg
Energy Consumption kWh/1000 h
24 kWh
UV
Pet (Niosh) (Min)
8 h/500lx
Damage Factor D/fc (Max)
0.5

Luminaire Design Requirements
Bulb Temperature (Max)
380 °C
Cap-Base Temperature (Max)
250 °C

Product Data
Full product code
871150020751715
Order product name
MASTERColour CDM-Tm Mini 20W/830 PGJ5 1CT/12
EAN/UPC - Product
8711500207517
Order code
928087905130
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
928087905130
Net Weight (Piece)
0.005 kg
ILCOS Code
MT/UB-20/830-H/L-PGJ5-13.3/52

Philips MASTER Colour CDM-Tm Mini 20W/35W 830 PGJ5 1CT/12

Product form

SKU: MT2083-PGJ-PH
Barcode: 20751715

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£35.63 Excl. VAT

(inc. 20% VAT): £42.76

    • Contact us to confirm availability
