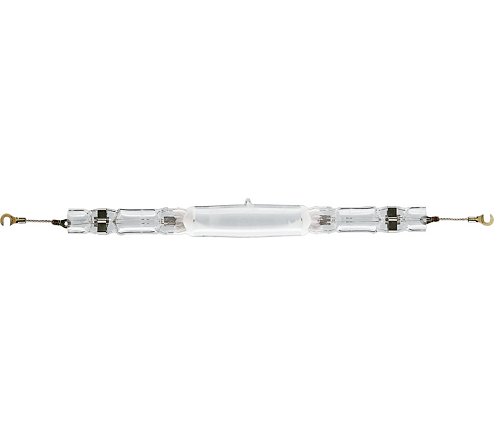

Philips MASTER MHN-LA 2000W/842 400V XWH

Description

MASTER MHN-LA 2000W/842 400V XWH

Philips MHN-LA 2000w/842 400v xwh.

  • Philips 2000 watt long arc lamp.
  • Used in Sports and Stadia floodlighting.
  • Base: X528 cap
  • Voltage: 380 – 440 volts.
  • Length:  353 mm.
  • Colour: Cool White / 4200k.
  • Order Code: 200747.
  • EAN: 8711500200747.

Data Sheet – Philips MHN-LA 2000






General Information

Cap base
X528  [ X528]
Operating position
P5  [ Parallel +/-5D or Horizontal(HOR)]
Life to 5% failures (nom.)
4500 h
Life to 10% failures (nom.)
6000 h
Life to 20% failures (nom.)
8500 h
Life to 50% failures (nom.)
13000 h

Light Technical

Colour Code
842  [ CCT of 4,200 K]
Luminous flux (rated) (min.)
193000 lm
Luminous flux (rated) (nom.)
214000 lm
Colour designation
Cool White (CW)
Lumen maintenance 1,000 hours (nom.)
94 %
Lumen maintenance 10,000 hours (nom.)
63 %
Lumen maintenance 2,000 hours (nom.)
89 %
Lumen maintenance 5,000 hours (nom.)
76 %
Chromaticity coordinate X (nom.)
370
Chromaticity coordinate Y (nom.)
370
Correlated Colour Temperature (Nom)
4200 K
Luminous efficacy (rated) (nom.)
105 lm/W
Colour rendering index (nom.)
72

Operating and Electrical

Lamp supply voltage
400 V  [ 400]
Power (Rated) (Nom)
2040.0 W
Lamp current run-up (max.)
15 A
Lamp current (EM) (nom.)
9.6 A
Ignition supply voltage (min.)
342 V
Voltage (Max)
245 V
Voltage (Min)
220 V
Voltage (Nom)
235 V

Controls and Dimming

Dimmable
No

Mechanical and Housing

Lamp Finish
Clear
Cap-base information
Cable (C)

Approval and Application

Energy efficiency label (EEL)
A+
Mercury (Hg) content (nom.)
194 mg
Energy consumption kWh/1,000 hours
2244 kWh

UV

Specific eff. radiant power
280 mW/klm

Luminaire Design Requirements

Bulb temperature (max.)
920 °C
Pinch temperature (max.)
350 °C

Product Data

Full product code
871150020074700
Order product name
MASTER MHN-LA 2000W/842 400V XWH
EAN/UPC – product
8718291548201
Order code
20074700
Local order code
2000MHNLA842
SAP numerator – quantity per pack
1



Philips MASTER MHN-LA 2000W/842 400V XWH

Product form

SKU: MHNTD2000-PH
Barcode: 8711500200747

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£271.96 Excl. VAT

(inc. 20% VAT): £326.35

    • Contact us to confirm availability
      Downloads
