PHILIPS - SX74-PH 91/135W SOX IGNITOR 913654079066

Description

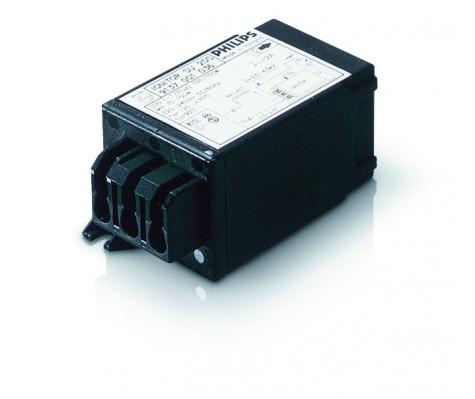

91/135W SOX IGNITOR - SX74

SX 74 220-240V 50/60HZ HID ignitors for series systems Product data General Information Application code 74 Lamp type SOX/SOX-E Number of lamps 1 piece/unit Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Ignition type Parallel Ignition voltage (max.) 1.4 kV Response voltage 198 V Mains voltage performance (AC) -8%-+6% Mains voltage safety (AC) -10%-+10% Power losses (nom.) 1.0 W Wiring Cable capacity wires device to lamp (nom.) 2 nF Wire strip length 6.0 mm Ballast contact wire cross section 0.70-2.50 mm² Connector type Screw System characteristics Rated ballast-lamp power 91/135 W Temperature T-ambient (max.) 75 °C T-ambient (min.) -20 °C T storage (max.) 80 °C T storage (min.) -25 °C T-Case maximum (max.) 80 °C Mechanical and Housing Housing SNI-115 Approval and Application Approval marks CE marking ENEC certicate Product Data Full product code 871150091569630 Order product name SX 74 220-240V 50/60Hz EAN/UPC – product 8711500915696 Order code 91569630 Local order code SX74 SAP numerator – quantity per pack 1 Datasheet, 2021, September 1 data subject to change Lighting Lighting Numerator – packs per outer box 20 SAP material 913654079066 SAP net weight (piece) 0.090 kg Dimensional drawing A1 A2 B1 C1 D 1 SX 74 220-240V 50/60Hz Product D

PHILIPS - SX74-PH 91/135W SOX IGNITOR 913654079066

Product form

SKU: SX74-PH
Barcode: 71569630

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£26.62 Excl. VAT

(inc. 20% VAT): £31.94

    • Contact us to confirm availability
      Downloads

    91/135W SOX IGNITOR - SX74 SX 74 220-240V 50/60HZ HID ignitors for series systems Product data General Information Application code... Read more

    Description

    91/135W SOX IGNITOR - SX74

    SX 74 220-240V 50/60HZ HID ignitors for series systems Product data General Information Application code 74 Lamp type SOX/SOX-E Number of lamps 1 piece/unit Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Ignition type Parallel Ignition voltage (max.) 1.4 kV Response voltage 198 V Mains voltage performance (AC) -8%-+6% Mains voltage safety (AC) -10%-+10% Power losses (nom.) 1.0 W Wiring Cable capacity wires device to lamp (nom.) 2 nF Wire strip length 6.0 mm Ballast contact wire cross section 0.70-2.50 mm² Connector type Screw System characteristics Rated ballast-lamp power 91/135 W Temperature T-ambient (max.) 75 °C T-ambient (min.) -20 °C T storage (max.) 80 °C T storage (min.) -25 °C T-Case maximum (max.) 80 °C Mechanical and Housing Housing SNI-115 Approval and Application Approval marks CE marking ENEC certicate Product Data Full product code 871150091569630 Order product name SX 74 220-240V 50/60Hz EAN/UPC – product 8711500915696 Order code 91569630 Local order code SX74 SAP numerator – quantity per pack 1 Datasheet, 2021, September 1 data subject to change Lighting Lighting Numerator – packs per outer box 20 SAP material 913654079066 SAP net weight (piece) 0.090 kg Dimensional drawing A1 A2 B1 C1 D 1 SX 74 220-240V 50/60Hz Product D
