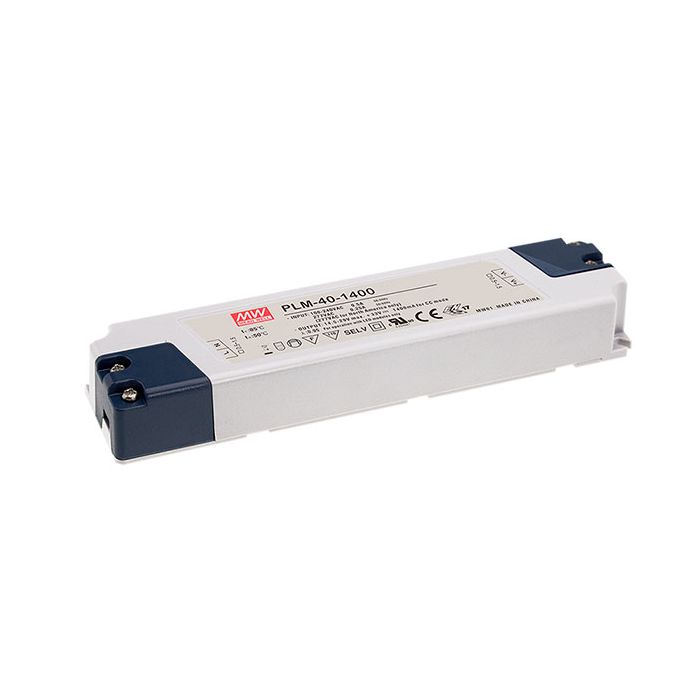

PLM-40E-1400 - Mean Well LED Driver PLM-40E-1400 40.6W 1400mA

Description

Constant current designThree-step analogue dimmingProtections: Short circuit/ Over temperatureOther features:Universal AC input (up to 295VAC)/ Full rangeBuilt-in active PFC functionNo load power consumption <0.5WCooling by free air convectionIP30 designFully isolated plastic caseClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for indoor LED lighting applications2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Current 1400mA Dimmable (Type) No Output Voltage Range (V) 15~29 Dimensions 175x 42x 24 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B Input Voltage 180-295VAC Safety Standards UL8750, CSA C22.2 No.250. 13-12 (for PLM-40-1400/ 1750), ENEC EN61347-1, EN61347-2-13, EN61347-2-13, EN62384, IP30 approved Output Voltage Options Single Working Temperature -30~+40°C PDF Datasheet PLM-40E-spec.pdf

PLM-40E-1400 - Mean Well LED Driver PLM-40E-1400 40.6W 1400mA

Product form

SKU: PLM-40E-1400

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£19.79 Incl. VAT

(inc. 20% VAT): £23.75

    • Contact us to confirm availability
      Downloads

    Constant current designThree-step analogue dimmingProtections: Short circuit/ Over temperatureOther features:Universal AC input (up to 295VAC)/ Full rangeBuilt-in active PFC functionNo... Read more

    Description

    Constant current designThree-step analogue dimmingProtections: Short circuit/ Over temperatureOther features:Universal AC input (up to 295VAC)/ Full rangeBuilt-in active PFC functionNo load power consumption <0.5WCooling by free air convectionIP30 designFully isolated plastic caseClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for indoor LED lighting applications2 years warranty
    More Information Manufacturer Mean Well Output Wattage (W) 40 Output Current 1400mA Dimmable (Type) No Output Voltage Range (V) 15~29 Dimensions 175x 42x 24 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B Input Voltage 180-295VAC Safety Standards UL8750, CSA C22.2 No.250. 13-12 (for PLM-40-1400/ 1750), ENEC EN61347-1, EN61347-2-13, EN61347-2-13, EN62384, IP30 approved Output Voltage Options Single Working Temperature -30~+40°C PDF Datasheet PLM-40E-spec.pdf
