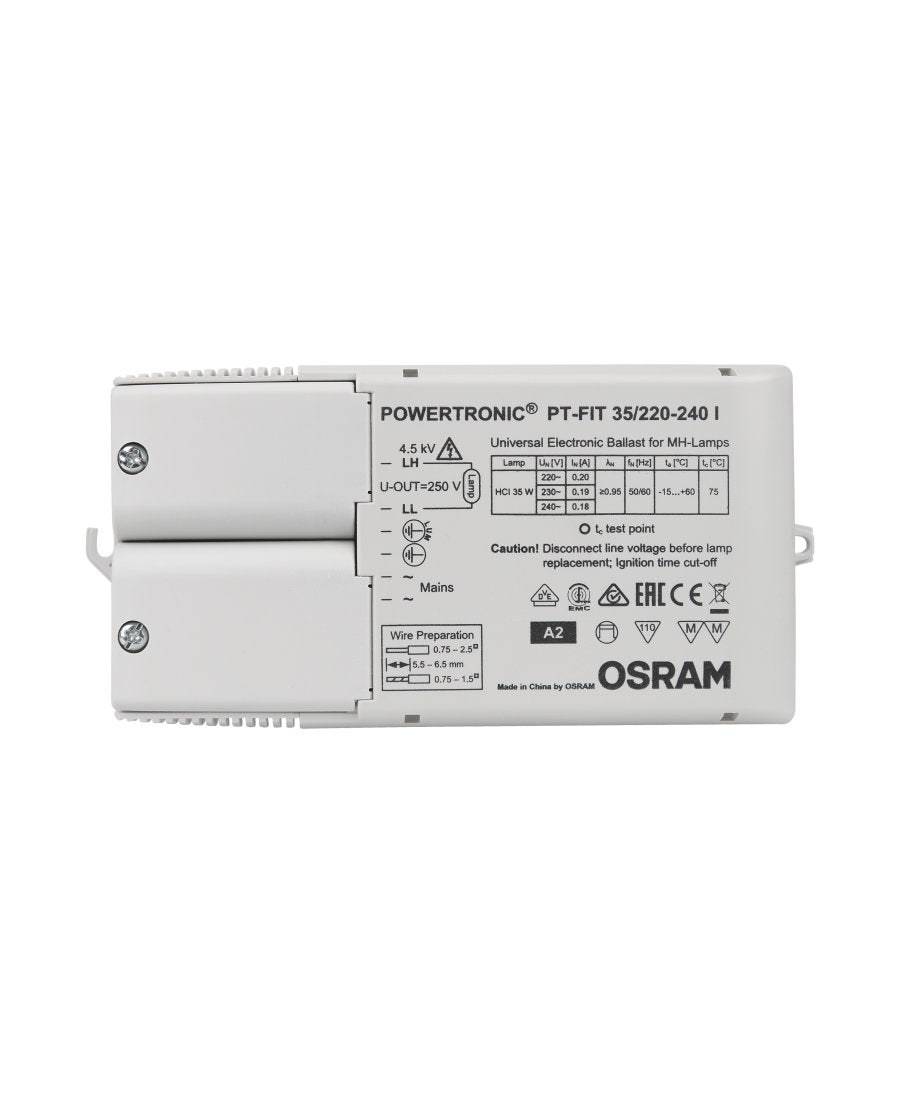

PT-FIT 35/220…240 I

Description

35w Powertronic Ballast - Osram - PTFIT35I

Product family benefits
  • ECG with ergonomic strain relief for correct installation in suspended ceilings
  • Optimized cost/benefit factor
  • Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
Areas of application
  • Shop lighting
  • Health and fitness areas (in luminaires with protection class IP66 or higher)
  • Effect and accent lighting

Safety advice
Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t of the ECG does not exceed the maximum value.
Attention!
For safety reasons disconnect the device before replacing the lamp!



Technical Data

Electrical data

Lamp wattage

39 W

Maximum output power

39 W

Line current

0.19 A


Ignition voltage

4.5 kVp

Operating frequency

0.200…0.240 kHz

System wattage

43.00 W

Efficiency in full-load

91 %

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Power factor λ

0.95


Inrush current

30 A


Max. ECG no. on circuit breaker 10 A (B)

15


Max. ECG no. on circuit breaker 16 A (B)

26


Max. no. of ECGs on 16A MCB with EBN-OS

65


Protective conductor current

0.3 mA

U-OUT (working voltage)

250 V

Max. working voltage between LH and LL

250 V

Max. working voltage betw. LL/LH & earth

250 V

Max. capacitance of wire ECG/lamp

120 pF

Dimensions & weight

Length

172.0 mm

Width

83.0 mm

Height

33.0 mm

Mounting hole spacing, length

163.0 mm

Cable cross-section, input side

0.75…1.5 / 0.75…2.5 mm²


Cable cross-section, output side

0.75…1.5 / 0.75…2.5 mm²


Wire preparation length, input side

5.5…6.5 mm

Wire preparation length, output side

5.5…6.5 mm

Product weight

285.00 g

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-15…+60 °C

Maximum temperature at tc test point

75 °C

Lifespan

ECG lifetime

30000 h


Additional product data

Design / version

With cable clamp

Suitable for lamp power (1 lamp)

39 W

Capabilities

Max. cable length to lamp/LED module

1.5 m

Overheating protection

Power reduction and switch off at T > 75 °C at the tc point

ECG reset time

> 0.5 s

Cable/wire types, input side

NYM-J 3x1.5 / NYM-J 3x2.5 / H05VV-F 3x1.5 / NHXMH-J 3x1.5 mm²

Cable/wire types, output side

SIHF-J 3x1.5 / SIHF-J 3x2.5 / SIHSI 3x1.0 mm²

Dimmable

No

Restriction on ignition time

20 min

Suitable for fixtures with prot. class

I

Intended for no-load operation

No

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / EAC / C-Tick

Type of protection

IP20

EEI – Energy Label

A2

Standards

Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62493

Logistical data

Commodity code

850410809000

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

14-04-2022

Primary Article Identifier

4008321377661

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

debdcb03-c15a-4efc-b20c-4d88962b9a80

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume
4008321377661 UNV

1 172mm x 83mm x 33mm 285.00g 0.47dm³
4008321377678 VS

20 437mm x 100mm x 365mm 6130.00g 15.95dm³

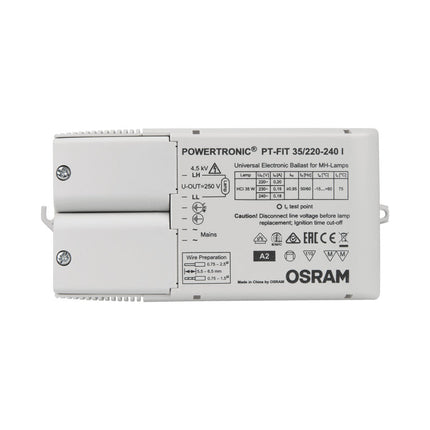

PT-FIT 35/220…240 I

Product form

SKU: PTFIT35I-OS
Barcode: 4008321377661

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£31.03 Excl. VAT

(inc. 20% VAT): £37.24

    • Contact us to confirm availability
