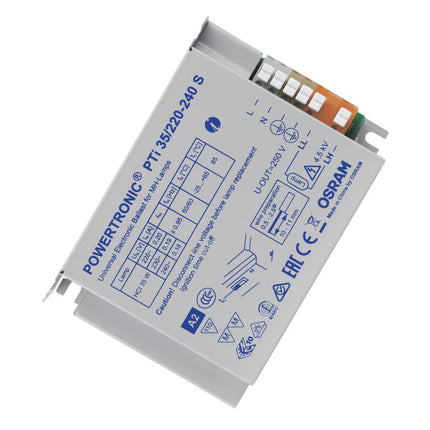

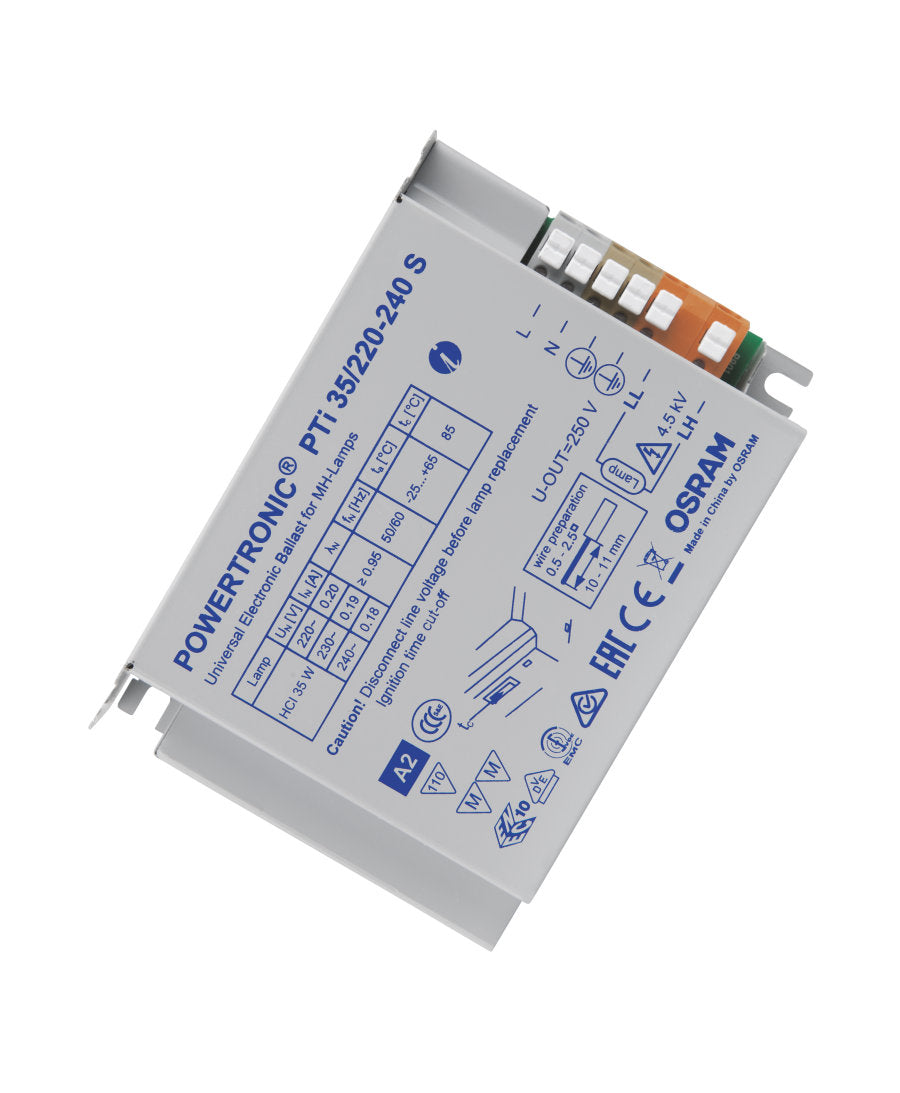

PTi 35/220…240 S

Description

35w Powertronic Ballast - Osram - PTI35S - 4008321073112





Product family benefits
  • Long reliable life at maximum permitted temperatures
  • Compact dimensions and low weight for small luminaire designs
  • Excellent thermal behavior for very high limit temperatures tc and ta
  • Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
Areas of application
  • Shop lighting
  • Health and fitness areas (in luminaires with protection class IP66 or higher)
  • Effect and accent lighting

Safety advice
Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t of the ECG does not exceed the maximum value.
Attention!
For safety reasons disconnect the device before replacing the lamp!
Any conductive material must have a minimum distance of 4 mm to the front of the terminal block.
Installation by qualified electrician only.
Terminals for protective earth not suitable for any through connection.


Data sheet

More downloads

Technical Data

Electrical data

Lamp wattage

39 W

Maximum output power

39 W

Line current

0.19 A


Ignition voltage

4.5 kVp

Operating frequency

0.200…0.240 kHz

System wattage

43.00 W

Efficiency in full-load

91 %

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Power factor λ

0.95


Inrush current

30 A


Max. ECG no. on circuit breaker 10 A (B)

15


Max. ECG no. on circuit breaker 16 A (B)

26


Max. no. of ECGs on 16A MCB with EBN-OS

65


Protective conductor current

0.25 mA

U-OUT (working voltage)

250 V

Max. working voltage between LH and LL

250 V

Max. working voltage betw. LL/LH & earth

250 V

Max. capacitance of wire ECG/lamp

120 pF

Dimensions & weight

Length

110.0 mm

Width

75.0 mm

Height

30.0 mm

Mounting hole spacing, length

99.0 mm

Mounting hole spacing, width

64.0 mm

Cable cross-section, input side

0.5…2.5 mm²

Cable cross-section, output side

0.5…2.5 mm²

Wire preparation length, input side

10…11 mm

Wire preparation length, output side

10…11 mm

Product weight

250.00 g

Colors & materials

Casing material

Metal

Temperatures & operating conditions

Ambient temperature range

-25…+65 °C

Maximum temperature at tc test point

85 °C

Lifespan

ECG lifetime

50000 h


Additional product data

Design / version

Built-in unit

Suitable for lamp power (1 lamp)

39 W

Capabilities

Max. cable length to lamp/LED module

1.5 m

Overheating protection

Power reduction and switch off at T > 85 °C at the tc point

Overvoltage protection at 275…300 V

48 h


Overvoltage protection at 300…320 V

2 h


Overvoltage protection at 320…350 V

5 min


ECG reset time

> 0.5 s

Dimmable

No

Restriction on ignition time

20 min

Suitable for fixtures with prot. class

I

Intended for no-load operation

No

Certificates & standards

Approval marks – approval

ENEC 10 / VDE / VDE-EMC / EAC / C-Tick

Type of protection

IP20

EEI – Energy Label

A2

Standards

Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547

Logistical data

Commodity code

850410809000

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

23-12-2021

Primary Article Identifier

4008321073112

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

1329b7c2-4227-485b-9bbd-6cd13951be92

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume
4008321073112 UNV

1 110mm x 75mm x 30mm 250.00g 0.25dm³
4008321074522 VS

20 412mm x 136mm x 186mm 5169.89g 10.42dm³

PTi 35/220…240 S

Product form

SKU: PTI35S-OS
Barcode: 4008321073112

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£35.53 Excl. VAT

(inc. 20% VAT): £42.64

    • Contact us to confirm availability
