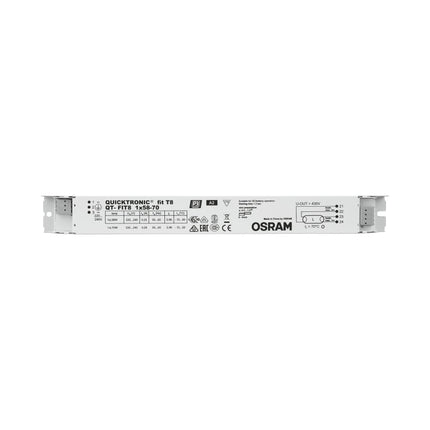

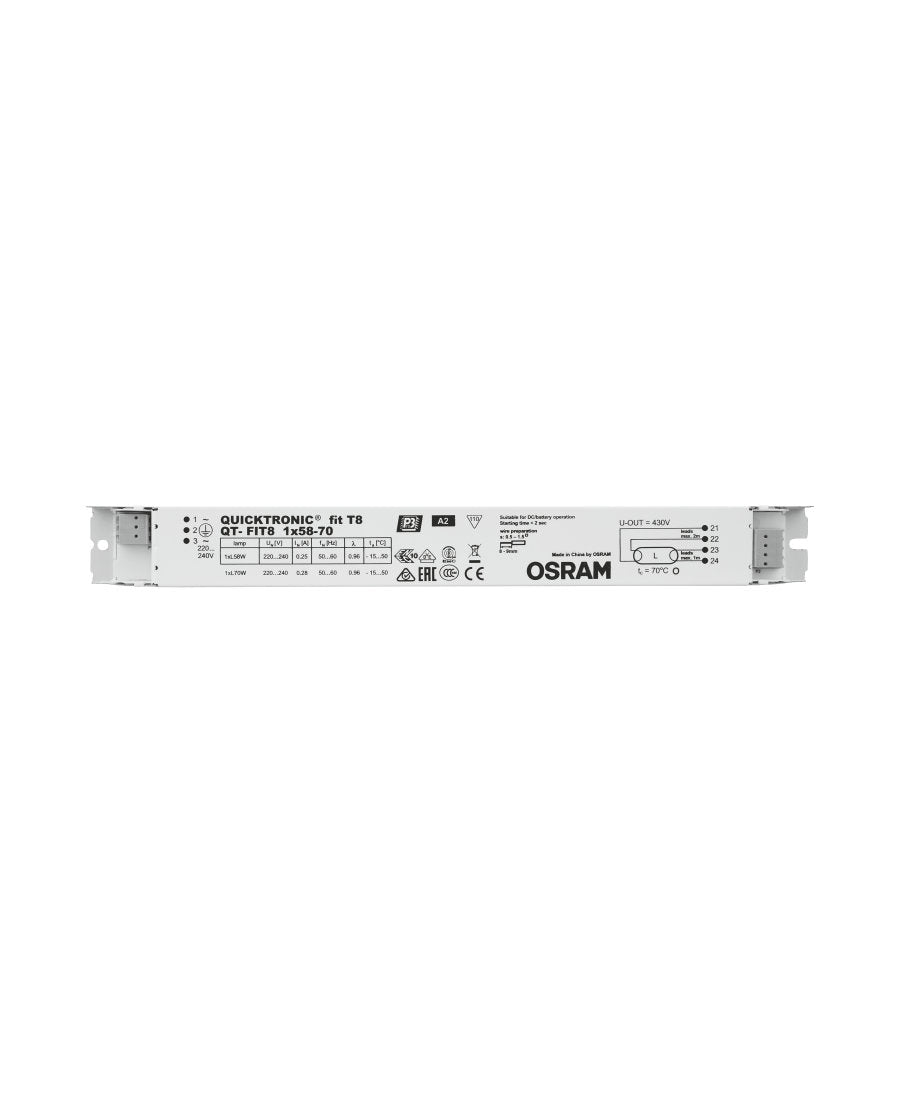

QT-FIT8 1X58…70

Description

Product family benefits
  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • VDE/VDE EMC certified system
  • Very high energy efficiency due to cut-off technology
Areas of application
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Strip lighting
  • Suitable for luminaires of protection class I

Data sheet

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

185…264 V


Maximum output power

70 W

Efficiency in full-load

91 %


Operating frequency

40…50 kHz

Max. ECG no. on circuit breaker 10 A (B)

17


Max. ECG no. on circuit breaker 16 A (B)

28


Inrush current

15 A

Light technical data

Starting time

2.0 s

Dimensions & weight

Length

280.0 mm

Width

30.0 mm

Height

28.0 mm

Mounting hole spacing, length

270.0 mm

Product weight

182.00 g

Cable cross-section, output side

0.5…1.5 mm²


Cable cross-section, input side

0.5…1.5 mm²


Temperatures & operating conditions

Ambient temperature range

-15…+50 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

50000 h


Additional product data

Suitable for lamp power (1 lamp)

58…70 W

Capabilities

End of lamp life safety shutdown

EOL T.2

Suitable for fixtures with prot. class

I

Intended for no-load operation

No

Max. cable length to lamp/LED module

2.0 m / 1.0 m

Dimmable

No

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / ENEC 10 / CE

EEI – Energy Label

A2

Standards

Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547

Type of protection

IP20

Protection class

I

Logistical data

Commodity code

850410809000

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

14-04-2022

Primary Article Identifier

4008321294227

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

553f952c-32f6-4842-beaa-87800b1b86b1

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight
4008321294227 UNV

1 280mm x 30mm x 28mm 182.00g
4008321294234 VS

20 303mm x 132mm x 185mm 3853.00g

Downloads

Data sheets

QT-FIT8 1X58…70

Product form

SKU: qtfit815870-os
Barcode: 4008321294227

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£12.44 Excl. VAT

(inc. 20% VAT): £14.93

    • Contact us to confirm availability
