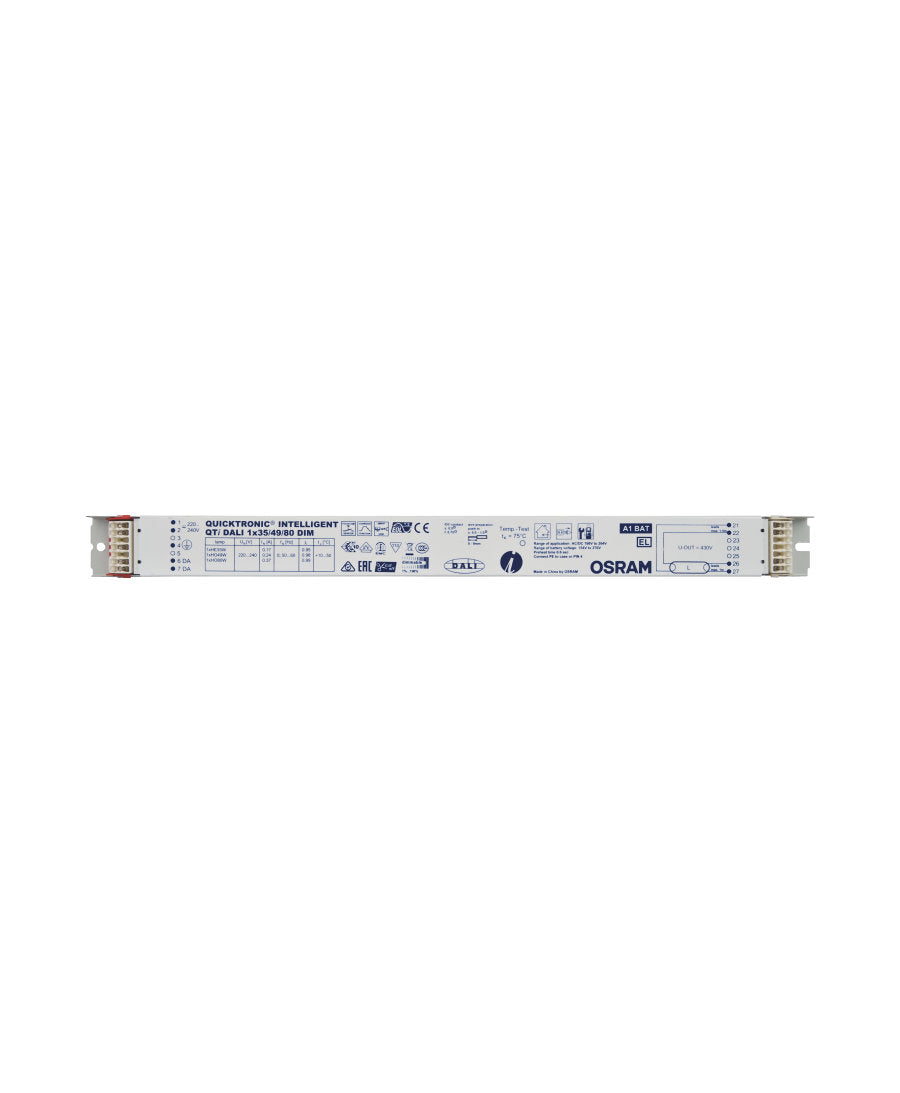

QTI DALI 1 x 35/49/80 Dimmable 4050300870342

Description

QTi Dali 1X35/49/80w Dim TL5 Ballast

4050300870342



Product family benefits
  • System+ Guarantee available
  • Easy integration in luminaire thanks to same dimensions like DALI GI ECG
  • TouchDIM function for easy and inexpensive dimming of several ECGs
  • Same luminous flux with direct and alternating current
  • Dimming of amalgam lamps without flickering or reduced lifespan
  • Automatic restart after lamp replacement
DALI product features
  • Control via the DALI interface
  • Compliance with the DALI Version-1 and IEC 60929
  • Control input protected against overvoltage and polarity reversal (OSRAM ECG)
Touch DIM and Touch DIM Sensor function
  • Manual dimming without controller and with standard switches
  • Including memory function (double click) and soft start
Areas of application
  • Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
  • Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
  • Industry
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Sports halls and factories
  • Strip lighting
  • Shop lighting
  • Suitable for luminaires of protection class I

References / Links
For more information on the system guarantee and the terms and conditions of the guarantee visit www.osram.com/system-guarantee


Data sheet

More downloads

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

154…276 V

Operating frequency

44…120 kHz

Max. ECG no. on circuit breaker 10 A (B)

12


Max. ECG no. on circuit breaker 16 A (B)

19


Inrush current

28 A

Light technical data

Starting time

0.6 s


Dimensions & weight

Length

360.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

350.0 mm

Product weight

278.00 g

Cable cross-section, input side

0.5…1.5 / 0.5…1.0 mm²


Cable cross-section, output side

0.5…1.5 / 0.5…1.0 mm²


Temperatures & operating conditions

Ambient temperature range

+10…+50 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

100000 h


Additional product data

Suitable for lamp power (1 lamp)

35…80 W

Capabilities

Dimming interface

DALI / Touch DIM / Touch DIM Sensor

Dimming range

1…100 %


Dimmable

Yes

Overheating protection

Power reduction and switch off at T > 75 °C at the tc point

Suitable for fixtures with prot. class

I

End of lamp life safety shutdown

EOL T.2

Max. cable length to lamp/LED module

1.0 m / 1.5 m

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / EL / EAC / RCM / CCC

Standards

Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1

Protection class

I

EEI – Energy Label

A1 BAT

Type of protection

IP20

Logistical data

Commodity code

850410809000

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume
4050300870342 UNV

1 360mm x 30mm x 21mm 278.00g 0.23dm³
4050300870359 VS

20 392mm x 98mm x 165mm 5779.99g 6.34dm³

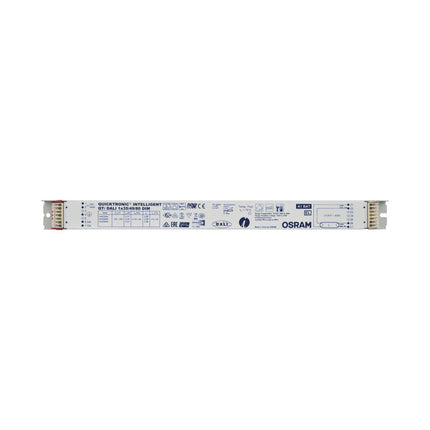

QTI DALI 1 x 35/49/80 Dimmable 4050300870342

Product form

SKU: qtidali1354980
Barcode: 4050300870342

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£53.37 Excl. VAT

(inc. 20% VAT): £64.04

    • Contact us to confirm availability
