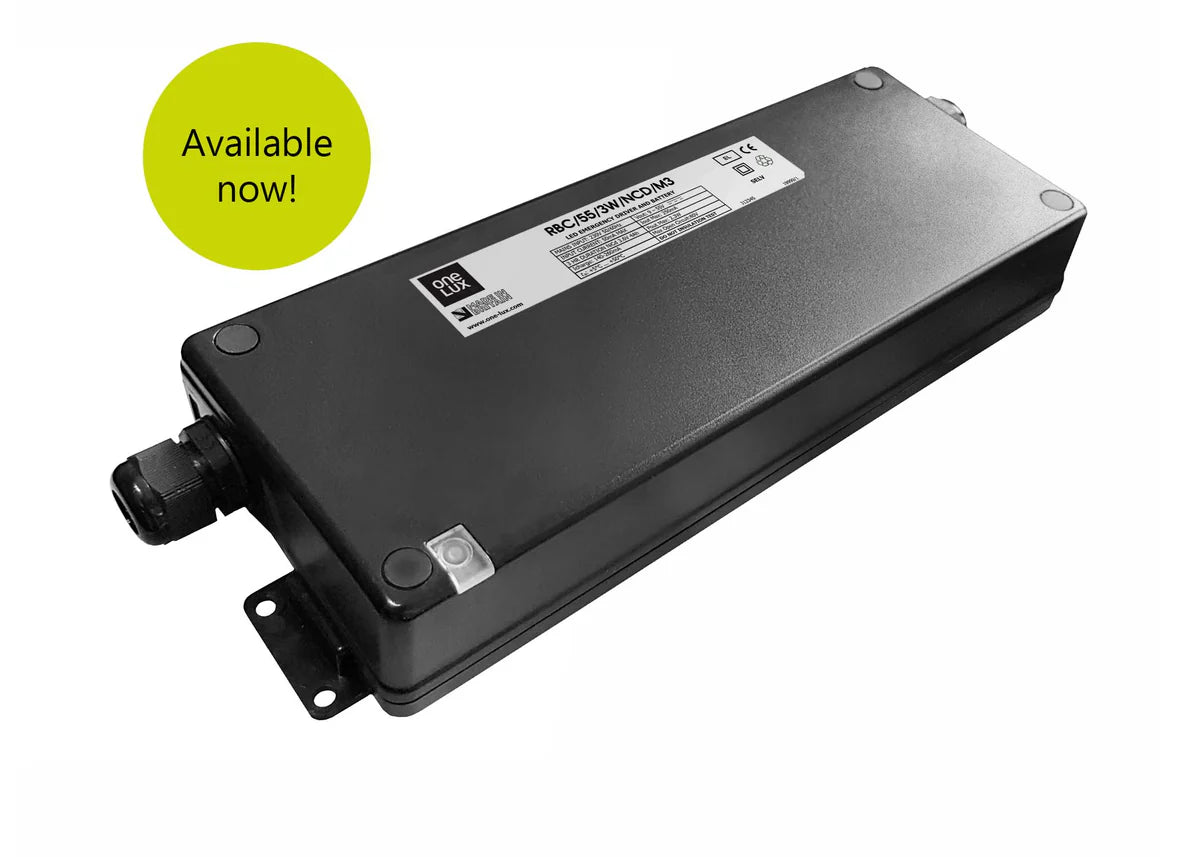

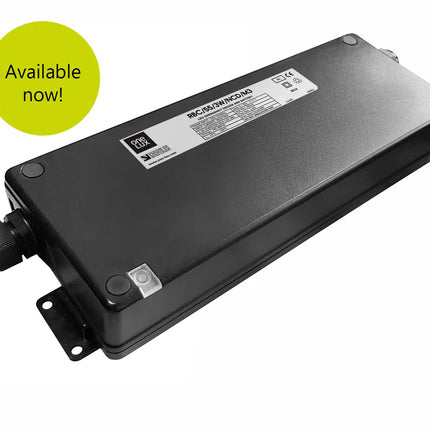

RBC55/3W/LFP/M3 9-55V 3W Remote Emergency Box

RBC55/3W/LFP/M3 9-55V 3W Remote Emergency Box

Product description
LED Compact RemoteTM is an effective IP65 solution for
emergency conversion of luminaires using LED arrays. The
compact, robust housing is supplied containing either our OmniLEDTM or Unity-LEDTM emergency drivers, re-chargeable battery
and connection terminals. Its sealable cover offers easy access
for both wiring and the battery during installation. Once wired, it
will pass through a ceiling cut out of just 110mm diameter. This
product can be used with a separate mains driver for Maintained
applications with Omni-LED, and is available pre-wired with cable
assemblies for simple ‘plug-and-play’ convenience.
Omni-LEDTM constant-power driver technology will run LED
lamps or arrays from 12V - 230V, so making it easy to produce
an emergency version of your existing LED luminaire* without
the need for separate ‘emergency’ LEDs or connectors. Options
available for NiCd, NiMH or LiFePO4 batteries

Features
> IP65 protection for more demanding environments
> Simple integral charge indicator LED for IP65 applications
> Choice of base, or edge mounting brackets during installation
> Available with Omni-LED or Unity-LED emergency lighting
 modules
> Compatible with One-LUX Highbay mounting plate
> 1 or 3 hour operation using NiCd, NiMH, or LiFePO4 batteries.
> Emergency output power options, typically 3W - 8W*
> Also available with DALI Self-Test & Lite-IP functionality
> Molded in black UL94_V0 rated Polycarbonate
> Two x 20mm cable entry/ exit points.
> Driver complies with: EN61347-1, EN61347-2-7, EN55015,
EN61000-3-2, EN61547
> Conforms to EN60598-1 & EN60598-2-22
> Mating lamp & driver connections available on request
> Option of external charge indicator LED with 500/750mm leads
 *Lamp switching current limitations apply. See applicable Omni-LED data for details

Common Technical Data
Input Supply Voltage 230V +/- 10%
Supply Frequency 50/60Hz
LED Voltage Range 12 - 230V (Driver dependent)
Battery Options NiCd, NiMH or LiFePO4
Ambient Temperature Range 5 to 50°C NiCd
10 - 35°C NiMH
5 to 50°C LiFePO4
IP Rating IP40 or IP65
Earth Leakage Current <0.5mA
Weight <1Kg
Dimensions
(Box Only)
265mm x 102mm x 46.5mm
Dimensions
(With Mounting Brackets)
291mm x 104mm x 48mONE
