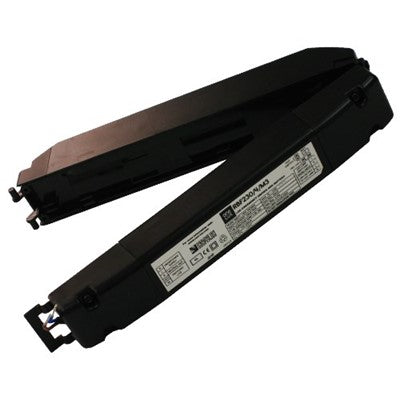

RBF230/4/M3 Emergency Pack for GU10

Description

BF230/4/M3 is an effective solution for emergency conversion of luminaires using 230V LED lamps and arrays such as GU10s and linear tubes. The compact, articulated design contains an emergency driver with a re-chargeable battery and allows installation through a ceiling cut-out of just 55mm.

The removable end covers provide easy access for wiring or they can be supplied pre-wired with your custom cable assemblies for simple ‘plug-and-play’ convenience if required.
The constant-power driver technology automatically adjusts to operate many available 230V LED lamps at an optimum power throughout the whole emergency duration. It has a built-in lamp
change-over relay, which allows the product to be used for Maintained applications so making it easy to produce an emergency conversion of your existing LED luminaire* without the need for
separate ‘emergency’ LEDs.



Features
• Ideal for use with 230V LED GU10s, linear tubes, down lights etc.*
• 3 hour operation using 4 x Nickel Metal Hydride (NiMH) high
temperature cells.
• Emergency output power (Typical): 4W for 4 cell version.
• Higher power versions also available on request.
• Green charge indicator LED with 750mm leads and bezel
• Molded in black UL94_V0 rated Polycarbonate.
• Driver complies with: EN61347-1, EN61347-2-7, EN55015,
EN61000-3-2, EN61547
• C o nforms to EN60598-1 & EN60598-2-22
• Custom plug & socket connections available on request



Product Details
Order Code 81109
Brand One-LUX
Voltage 70-250v
Wattage 3w
Overall Length 510 mm
Width 38 mm
Height 40 mm
Battery Required 4.8v - 4 Cell NiMH
Manufacturers Code RBF230/4/M3
Manufacturers Description OMNI-LED FLEXI 230V
More Product Details For emergency conversion of 230V LED GU10’s, linear tubes, down lights etc.
More Product Details Articulated design allows installation through a ceiling cut-out of just 55mm diameter
More Product Details Removable end covers provide easy wiring access

RBF230/4/M3 Emergency Pack for GU10

Product form

SKU: rbf230/4/m3

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£53.19 Excl. VAT

(inc. 20% VAT): £63.83

    • Contact us to confirm availability
      Downloads

    BF230/4/M3 is an effective solution for emergency conversion of luminaires using 230V LED lamps and arrays such as GU10s and... Read more

    Description

    BF230/4/M3 is an effective solution for emergency conversion of luminaires using 230V LED lamps and arrays such as GU10s and linear tubes. The compact, articulated design contains an emergency driver with a re-chargeable battery and allows installation through a ceiling cut-out of just 55mm.

    The removable end covers provide easy access for wiring or they can be supplied pre-wired with your custom cable assemblies for simple ‘plug-and-play’ convenience if required.
    The constant-power driver technology automatically adjusts to operate many available 230V LED lamps at an optimum power throughout the whole emergency duration. It has a built-in lamp
    change-over relay, which allows the product to be used for Maintained applications so making it easy to produce an emergency conversion of your existing LED luminaire* without the need for
    separate ‘emergency’ LEDs.



    Features
    • Ideal for use with 230V LED GU10s, linear tubes, down lights etc.*
    • 3 hour operation using 4 x Nickel Metal Hydride (NiMH) high
    temperature cells.
    • Emergency output power (Typical): 4W for 4 cell version.
    • Higher power versions also available on request.
    • Green charge indicator LED with 750mm leads and bezel
    • Molded in black UL94_V0 rated Polycarbonate.
    • Driver complies with: EN61347-1, EN61347-2-7, EN55015,
    EN61000-3-2, EN61547
    • C o nforms to EN60598-1 & EN60598-2-22
    • Custom plug & socket connections available on request



    Product Details
    Order Code 81109
    Brand One-LUX
    Voltage 70-250v
    Wattage 3w
    Overall Length 510 mm
    Width 38 mm
    Height 40 mm
    Battery Required 4.8v - 4 Cell NiMH
    Manufacturers Code RBF230/4/M3
    Manufacturers Description OMNI-LED FLEXI 230V
    More Product Details For emergency conversion of 230V LED GU10’s, linear tubes, down lights etc.
    More Product Details Articulated design allows installation through a ceiling cut-out of just 55mm diameter
    More Product Details Removable end covers provide easy wiring access
