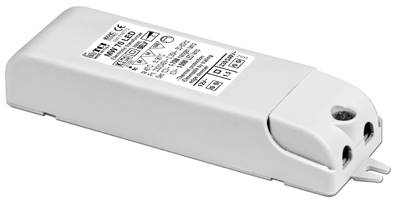

TCI 119772 Dimmable (TRAILING EDGE) 12 V electronic transformer

Description

Dimmable (TRAILING EDGE) 12 V electronic transformer for LED bulbs and halogen lamps

  • IP20 independent transformer for lamps 12 Vac:
    • 5 ÷ 70 W halogen lamps;
    • 2,5 ÷ 50 W LED lamps (max. 4/5 lamps).
  • Class II protection against electric shock for direct or indirect contact.
  • Complete with terminal cover and cable retainer.
  • Input and output terminal blocks on the same side
    • (wire cross-section up to 0,5 - 2,5 mm2  / AWG20 - AWG13).
  • Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 6 mm.
  • Max. 18 mm cable peel-off.
  • The transformer can be secured with slot for screws.
  • Ultra compact size.
  • Protections:
    • against overheating and short circuits.
    • against mains voltage spikes.
    • against overloads.





Before use always check the compatibility with the LED
lamps of the application, including EMC verification of the
complete system.

TCI 119772 Dimmable (TRAILING EDGE) 12 V electronic transformer

Product form

SKU: 119772

Trade price available - contact us

£20.00 Excl. VAT

(inc. 20% VAT): £24.00

    • Contact us to confirm availability
      Downloads

    Dimmable (TRAILING EDGE) 12 V electronic transformer for LED bulbs and halogen lamps IP20 independent transformer for lamps 12 Vac:... Read more

    Description

    Dimmable (TRAILING EDGE) 12 V electronic transformer for LED bulbs and halogen lamps

    • IP20 independent transformer for lamps 12 Vac:
      • 5 ÷ 70 W halogen lamps;
      • 2,5 ÷ 50 W LED lamps (max. 4/5 lamps).
    • Class II protection against electric shock for direct or indirect contact.
    • Complete with terminal cover and cable retainer.
    • Input and output terminal blocks on the same side
      • (wire cross-section up to 0,5 - 2,5 mm2  / AWG20 - AWG13).
    • Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 6 mm.
    • Max. 18 mm cable peel-off.
    • The transformer can be secured with slot for screws.
    • Ultra compact size.
    • Protections:
      • against overheating and short circuits.
      • against mains voltage spikes.
      • against overloads.





    Before use always check the compatibility with the LED
    lamps of the application, including EMC verification of the
    complete system.

    Specifications

    Voltage 240v
    Manufacture Code 119772

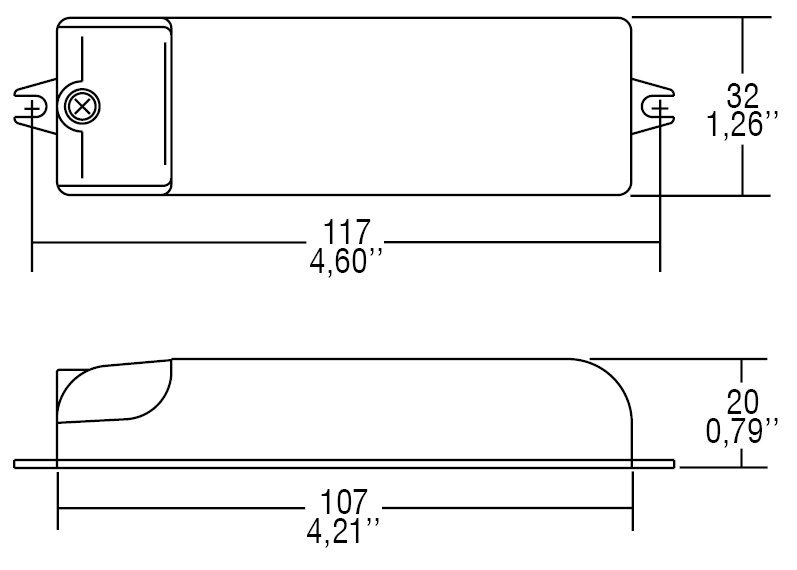

    Height 20mm
    Length 117mm
