Varilight Low Voltage Dimmable Transformers Suitable for LED and Halogen

Description

VARILIGHT Dimmable Electronic Transformers


  • Soft start gently brings lights to full brightness when you switch on and extend lamp life
  • Auto-resetting overload protection
  • Auto-resetting over-temperature
  • Short circuit protection
  • No minimum
  • Choose YT50LZ for 12V a.c. LEDs (max. 25W)
  • Choose YT40DC12 for 12V d.c. LEDs (max 40W for LED strip, 30W for LED lamps)

Varilight Dimmable Transformer
Technical Data YT50LZ
 YT70LZ
 YT105Z
 YT150Z
 YT210Z
 YT40DC12
Input voltage 230V a.c. +/-10%
50Hz		 230V a.c. +/-10%
50Hz		 230V a.c. +/-10%
50Hz		 230V a.c. +/-10%
50Hz		 230V a.c. +/-10%
50Hz		 230V a.c. +/-10%
50Hz
Nominal input current 0.22A 0.32A 0.46A 0.65A 0.93A 0.2A
Output voltage 11.5V a.c. 11.5V a.c.
 11.5V a.c. 11.5V a.c. 11.5V a.c. 11.5V d.c.
Output power range 0-50W 0-70W 0-105W 0-150W 0-210W 0-40W
Nominal output current 4.3A 6.0A 9.1A 13A 18.2A 3.5A
Power factor 0.99 0.99
 0.99 0.99 0.99 >0.9
Ambient temperature range 0-40C 0-40C 0-40C 0-40C 0-40C 0-40C
IP Protection IP20 IP20 IP20 IP20 IP20 IP20
Weight 100g 100g 125g 212g 225g 180g
Input terminals 2 leads 2 leads 2 terminals 4 terminals 4 terminals 2 leads
Output terminals 2 leads 2 leads 4 terminals 6 terminals 6 terminals 2 leads
Case type (dimensions below) A A B C C D
LED Compatible

Transformer Case Sizes

Varilight Low Voltage Dimmable Transformers Suitable for LED and Halogen

Product form

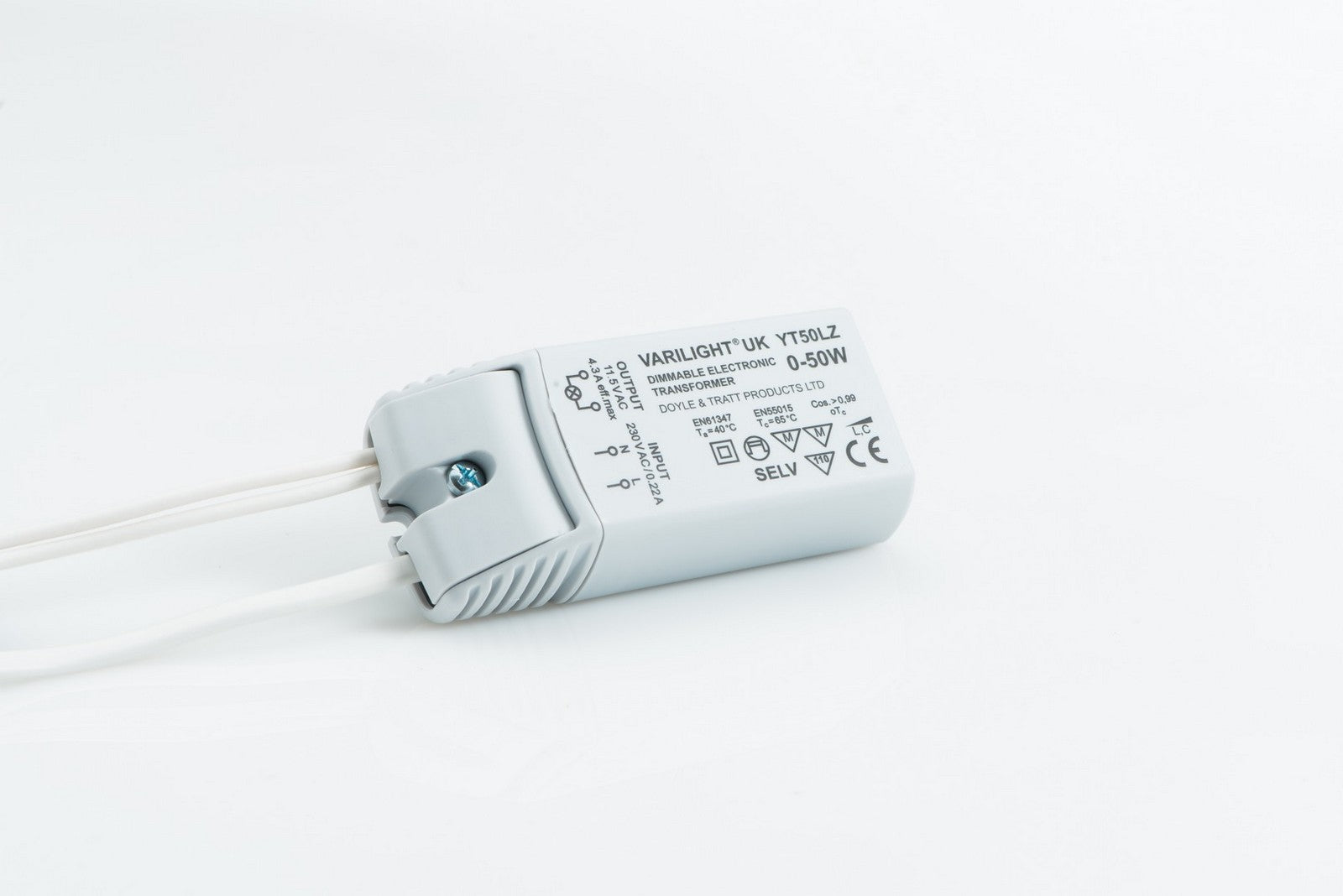

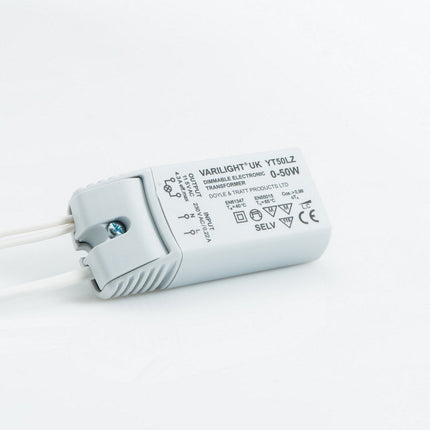

SKU: YT50LZ

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£15.12 Excl. VAT

(inc. 20% VAT): £18.14

    • Contact us to confirm availability
      Downloads

    VARILIGHT Dimmable Electronic Transformers Soft start gently brings lights to full brightness when you switch on and extend lamp life Auto-resetting... Read more

    Description

    VARILIGHT Dimmable Electronic Transformers


    • Soft start gently brings lights to full brightness when you switch on and extend lamp life
    • Auto-resetting overload protection
    • Auto-resetting over-temperature
    • Short circuit protection
    • No minimum
    • Choose YT50LZ for 12V a.c. LEDs (max. 25W)
    • Choose YT40DC12 for 12V d.c. LEDs (max 40W for LED strip, 30W for LED lamps)

    Varilight Dimmable Transformer
    Technical Data YT50LZ
    		 YT70LZ
    		 YT105Z
    		 YT150Z
    		 YT210Z
    		 YT40DC12
    Input voltage 230V a.c. +/-10%
    50Hz    		 230V a.c. +/-10%
    50Hz    		 230V a.c. +/-10%
    50Hz    		 230V a.c. +/-10%
    50Hz    		 230V a.c. +/-10%
    50Hz    		 230V a.c. +/-10%
    50Hz
    Nominal input current 0.22A 0.32A 0.46A 0.65A 0.93A 0.2A
    Output voltage 11.5V a.c. 11.5V a.c.
    		 11.5V a.c. 11.5V a.c. 11.5V a.c. 11.5V d.c.
    Output power range 0-50W 0-70W 0-105W 0-150W 0-210W 0-40W
    Nominal output current 4.3A 6.0A 9.1A 13A 18.2A 3.5A
    Power factor 0.99 0.99
    		 0.99 0.99 0.99 >0.9
    Ambient temperature range 0-40C 0-40C 0-40C 0-40C 0-40C 0-40C
    IP Protection IP20 IP20 IP20 IP20 IP20 IP20
    Weight 100g 100g 125g 212g 225g 180g
    Input terminals 2 leads 2 leads 2 terminals 4 terminals 4 terminals 2 leads
    Output terminals 2 leads 2 leads 4 terminals 6 terminals 6 terminals 2 leads
    Case type (dimensions below) A A B C C D
    LED Compatible

    Transformer Case Sizes
