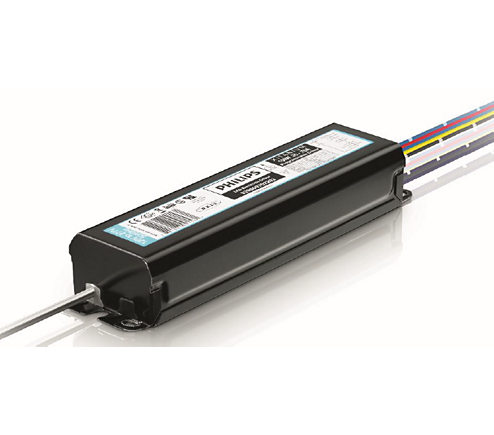

Xitanium 150W 0.35-0.7A Prog GL sXt 929000702202

Description

Specifications

General Information
Constant light output
Programmable
Number of Products on MCB (16A Type B) (Max)
7

Operating and Electrical
Input Frequency
50 to 60 Hz
Total Harmonic Distortion IEC (Max)
20 %
Output Current Ripple (Nom)
30 %
Maximum Efficiency
93 %
Power Factor 100% Load (Min)
0.97
Output Current (Max)
700 mA
Output Current (Nom)
Programmable (350-700) mA
Output Current Tolerance (Max)
5 %
Output Current Tolerance (Min)
-5 %
Input Voltage (AC)
120-277 V
Power Factor 50% Load (Min)
0.94
Earth Leakage Current (Max)
0.7 mA
Input Current (Max)
700 mA
Input Power (Nom)
165 W
Inrush Current Peak (Max)
108 A
Output Power (Nom)
30-150 W
Output Voltage
125-280 V
Inrush Current Width to 50% of Peak
140 µs
Output Current (Min)
50 mA
Output Voltage (Max)
280 V
Output Voltage (Min)
125 V
Wiring
Control Wire Length
500 mm
Output Wire Length
500 mm
Control Wire Cross Section (Nom)
0.82 mm²
Output Wire Cross Section (Nom)
0.82 mm²
Input Wire Cross Section (Nom)
0.82 mm²
Temperature
T-Ambient (Max)
55 °C
T-Ambient (Min)
-40 °C
T-Case Lifetime (Nom)
71 °C
T-Case Maximum (Max)
80 °C
Module Temperature Protection
Programmable
T-Case Switch Off (Nom)
92 °C
Controls and Dimming
Control Interface
1-10V/DALI/Dynadimmer
Dimming Range
100-10 %
Lumistep Dimming Time
-
Lumistep Dimming Time After Midpoint
-
Mechanical and Housing
Housing Color
Black
Housing
F-CAN 240mm
Housing Dimensions
240.5 x 59.8 x 37.6
Approval and Application
Surge Protection (Common/Differential)
3/3 kV
IP Classification
IP 66  [ Ingress Protection 66]
Isolation Classification
Class II
Approval Marks

ENEC certificate

CE marking

RoHS compliance
Product Data
Full product code
872790078351300
Order product name
Xitanium 150W 0.35-0.7A Prog GL sXt
EAN/UPC - Product
8718291999782
Order code
929000702202
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
10
Material Nr. (12NC)
929000702202
Net Weight (Piece)
1.048 kg

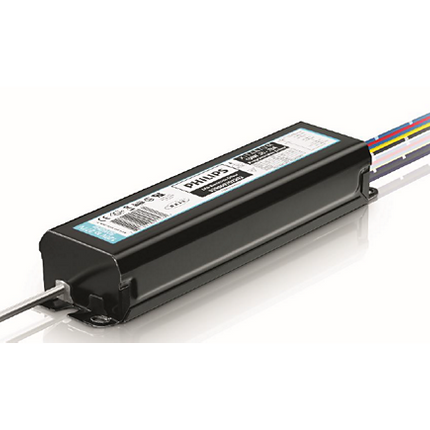

Xitanium 150W 0.35-0.7A Prog GL sXt 929000702202

Product form

SKU: XIT150-357glp-ph
Barcode: 929000702202

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£106.80 Excl. VAT

(inc. 20% VAT): £128.16

    • Contact us to confirm availability
