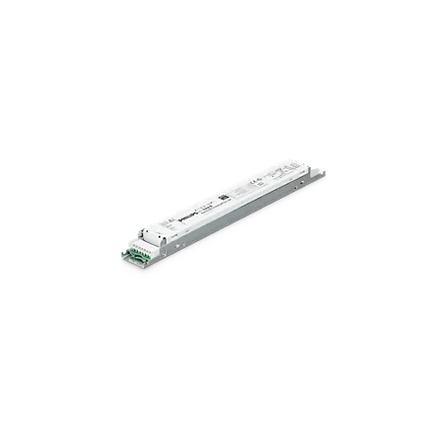

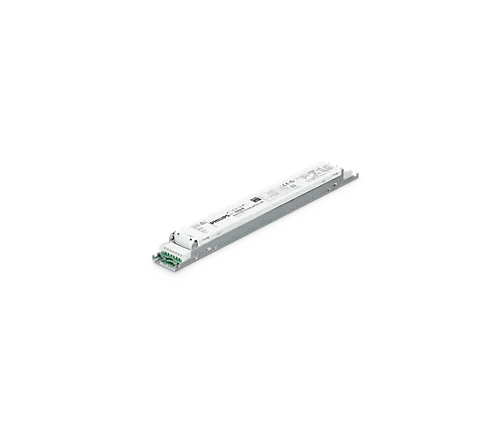

929000852103 Xitanium 75W 0.12-0.4A 215V TD 230V

Description

Specifications

General information
Protection class IEC
Safety class I
Constant light output
Programmable
Nominal Lifetime (Nom)
50000 h
Number of Products on MCB (16A Type B) (Max)
24
Number of Products on MCB (16A Type-C) (Max)
24 piece/unit
Operating and electrical
Input Frequency
50 to 60 Hz
Mains voltage operation (DC)
168-275 V
Total Harmonic Distortion IEC (Max)
20 %
Output Current Ripple (Max)
4 %
Maximum Efficiency at Full Load
93.1 %
Power Factor 100% Load (Min)
0.9
Power Factor 100% Load (Nom)
0.9
Output Current (Max)
400 mA
Output Current (Nom)
260 mA
Output Current Tolerance (Max)
5 %
Input Voltage (AC)
220-240 V
Mains voltage performance (DC)
186-250 V
Earth Leakage Current (Max)
0.4 mA
Standby Power Consumption (Max)
0.47 W
Power Factor (Min)
0.9
Open Circuit Voltage (DC) (Max)
275 V
Protection Level Up (L-N) at 5 kA (Max)
1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV
Input Current (Nom)
370 mA
Input current (AC)
0.37 mA
Input current (DC)
0.45
Input Power (Nom)
75 W
Inrush Current Peak (Max)
22 A
Output Power (Max)
75 W
Output Power (Nom)
48 W
Output Voltage
100-215 V
Default output current
120 mA
Inrush Current Width to 50% of Peak
275 µs
Power Factor 100% Load (Max)
0.9
Energy Metering
Yes
Constant Current (CC)
True
Constant Voltage (CV)
False
Diagnostics
True
Output Power (Min)
21 W
Output Current (Min)
120 mA
Output Voltage (Max)
215 V
Output Voltage (Min)
100 V
Wiring
Connector Type Input Terminals
Wago 744
Hot Wiring
no
Connector Type Output Terminals
Wago 744
Output Wire Cross Section (Max)
1.5 mm²
Output Wire Cross Section (Min)
0.5 mm²
Cable Length From Device to Lamp
4 m
Input Wire Gauge
16-20
Input wire strip length
8 mm to 9 mm
Output wire strip length
8 mm to 9 mm
Input Wire Cross Section (Max)
1.5 mm²
Input Wire Cross Section (Min)
0.5 mm²
System characteristics
Central DC Operation
Yes
YellowDot ready
No
Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
85 °C
T-Storage (Min)
-25 °C
T-Case Lifetime (Max)
75 °C
T-Case Lifetime (Nom)
75 °C
T-Case Maximum (Max)
75 °C
Module Temperature Protection
yes
Maximum case temperature (in case of failure)
110 °C
Controls and dimming
Dimmable
DALI
Control Interface
Touch and DALI Dimming
Dimming Range
100-1 %
D4i compliant
No
DynaDimmer
No
Mechanical and housing
Product Length
360 mm
Housing
Office 360x30x22 744 7 7p SideM
Housing Dimensions
360 x 30 x 22
Overall length
360 mm
Overall width
30 mm
Overall height
22 mm
Approval and application
Surge Protection (Common/Differential)
EN61547 (L-L 1kV, L-G 2kV) kV
Relative Humidity (Operation) (Max)
90 %
Relative Humidity (Operation) (Min)
10 %
IP Classification
IP20  [ Finger-protected]
Isolation Classification
No
Short Circuit Protection
Protected
Over Power Protection
Protected
Open Circuit Protection
Protected
Approval Marks

CCC certificate

CE marking

ENEC certificate

RCM compliance

REACH compliance

RoHS compliance
Corridor Mode
True
Output Current Set Options
Programmable,Rset2
Product data
Full product code
871829168402200
Order product name
Xitanium 75W 0.12-0.4A 215V TD 230V
EAN/UPC - Product
8718291684022
Order code
929000852103
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
929000852103
Net Weight (Piece)
0.250 kg

929000852103 Xitanium 75W 0.12-0.4A 215V TD 230V

Product form

SKU: XIT75-124HV1-PH
Barcode: 929000852103

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£37.50 Excl. VAT

(inc. 20% VAT): £45.00
