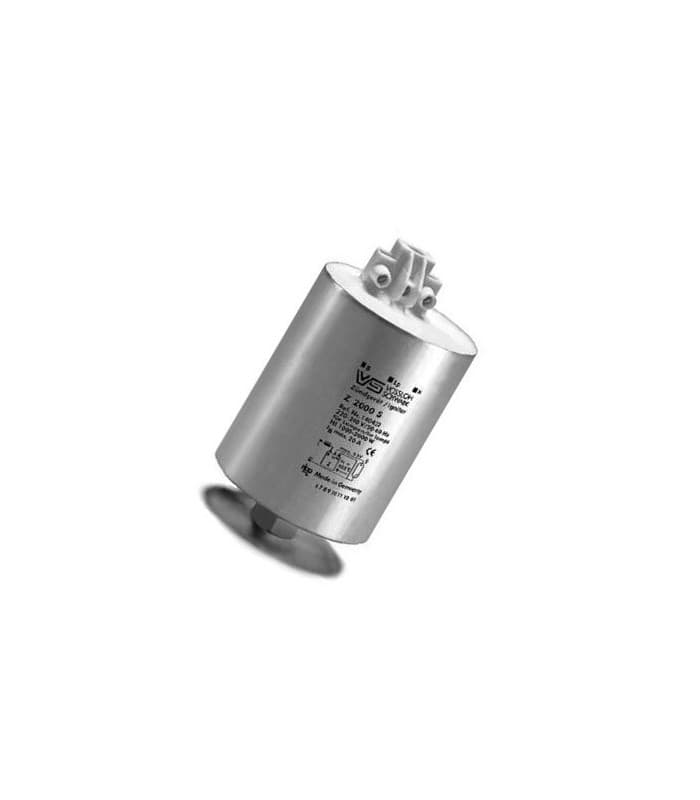

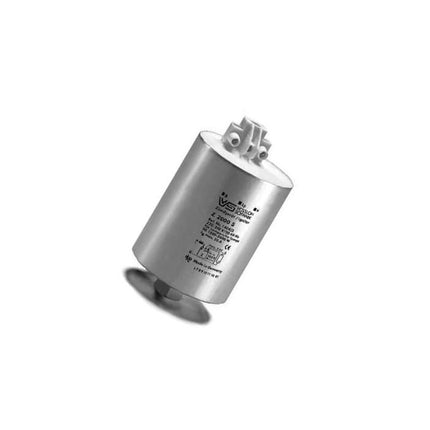

Z2000 S 140432 Ignitor 240V 1000W-2000W

Description

 2000 S Electronic superimposed ignitor for HI lamps.


Electronic superimposed ignitor for HI lamps up to 2000W.
Standard version
Phasing of the ignition voltage: 60 - 90°el and 240 - 270°el
Max. permitted casing temperature: 105 °C
Screw terminals: 0.75 - 2.5 mm²
Fastening: male nipple with pre-assembled washer and nut
For luminaires of protection class I and II

Voltage AC: 220 - 240 V
Frequency: 50 - 60 Hz
Max. lamp current: 20 A
Internal loss: < 6 W
Inherent heating: < 30K
Ignition voltage: 4 - 5 kV
Load capacity: 20 - 100 pF
Switch-off time: -
Casing: d (65 mm), a (96 mm)

Z2000 S 140432 Ignitor 240V 1000W-2000W

Product form

SKU: Z2000S-VO
Barcode: 4050732404320

Trade price available - contact us

£45.62 Excl. VAT

(inc. 20% VAT): £54.74

    • Contact us to confirm availability
      Downloads

     2000 S Electronic superimposed ignitor for HI lamps. Electronic superimposed ignitor for HI lamps up to 2000W.Standard versionPhasing of the ignition voltage: 60 -... Read more

    Description

     2000 S Electronic superimposed ignitor for HI lamps.


    Electronic superimposed ignitor for HI lamps up to 2000W.
    Standard version
    Phasing of the ignition voltage: 60 - 90°el and 240 - 270°el
    Max. permitted casing temperature: 105 °C
    Screw terminals: 0.75 - 2.5 mm²
    Fastening: male nipple with pre-assembled washer and nut
    For luminaires of protection class I and II

    Voltage AC: 220 - 240 V
    Frequency: 50 - 60 Hz
    Max. lamp current: 20 A
    Internal loss: < 6 W
    Inherent heating: < 30K
    Ignition voltage: 4 - 5 kV
    Load capacity: 20 - 100 pF
    Switch-off time: -
    Casing: d (65 mm), a (96 mm)
