Power supplies
Data sheet
Product description
For supplying 200 mA for DALI devices or control modules without their own power supplies
Surface-mounted casing
5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
DALI PS3
DALI-2 power supply
Product description
DALI-2 power supply providing 70 mA for a DALI-2 installation
Excellent scalability allowing to connect up to 2 PS3 in a DALI-2 installation
Compact form factor combined with detachable mounting flaps allowing high installation flexibility, e.g. in luminaire
Up to 100,000 guaranteed operating hours enable outstanding lifetime of the entire lighting system
5 years guarantee
Data sheet
Product description
Capacitive Touchpanel
High-quality appearance with real glass display
Multiple control modules are possible in a DALI system
Power supply via DALI line
Double terminals for through wiring
Adjustment of DALI lighting group with “Group” rotary switch
Individual adjustment of start number of lighting scenes with “Scene” rotary switch
5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Type TW:
Tunable white (colour converter) control (colour temperature along the Planckian Locus, Colour temperature Tc)
EAN/UPC: 9006210642307
Country of Origin: CN
Product description
Interface module from USB to a DALI system
For connecting Tridonic software tools
Addressing, programming and parametrising DALI installations and Tridonic devices
Power supply via DALI line and USB interface
5 years guarantee
View Data Sheet
DALI XC
DALI control module with switch inputs
Product description
DALI input controller
4 independent inputs for floating contacts
For connecting standard momentary-action switch or switches
Adjustable operating mode and range via 2 rotary selector
Multiple DALI XCs possible on the DALI line
Power supply via DALI line
Connection wires according to the terminal colours with 25 cm length included
5 years guarantee
Data sheet

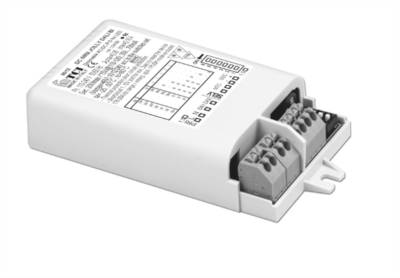

The Ecopac DALI-801-8A LED dimming inteface can be used in conjuction with non dimmable LED drivers to provide DALI dimming.
8A Maximum current
12-36VDC input voltage
1 DALI address input
1 Channel OutputMore Information
Output Voltage
12
Manufacturer
Ecopac Power
Output Wattage (W)
288
Dimmable (Type)
DALI
Dimensions
82x 33x 20
Input Voltage
12-36VDC
Working Temperature
-40~+85°C
PDF Datasheet
Dali-801-8A.pdf

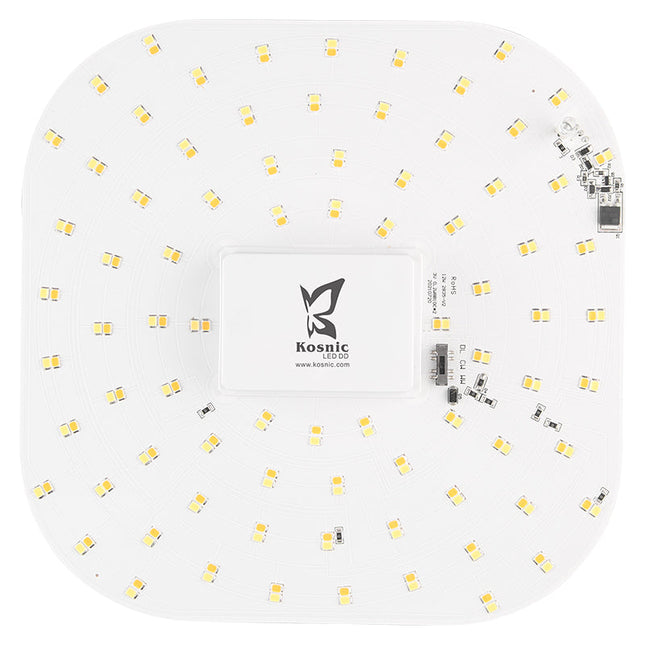

Kosnic’s range of LED DD lamps takes a fresh approach to functional lighting with a design philosophy offering plug-in emergency packs and optional microwave sensor versions so that there are no barriers to retrofitting LEDs in commercial fittings. The products bring the energy saving capabilities of LED technology to the commercial environment and the lamps can quickly replace fluorescent DD lamps with little or no rewiring.
Datasheet
View in Catalogue
Technical Drawing
Additional information
CCT
4000 (2700, 6500)
Rated Power (W)
18
Current (mA)
83
CCT Words
Cool White (Warm White / Day Light)
CCT (K)
4000 (2700, 6500)
Total Luminous Flux (lm)
2400 (2100, 2100)
Nominal Lifetime (h)
30000
L70B50 Lifetime (h)
54000
L80B10 Lifetime (h)
54000
L90 Lifetime (h)
42000
Blue Light Hazard
RG1
Power Factor
0.94
Dimensions L x W x D (mm)
33*φ192mm
Weight (kg)
0.15
Lighting Technology Used
LED
Mains / Non-Mains (MLS/NMLS)
MLS
Connected Light source (Y/N)
N
Anti-Glare Shield (Y/N)
N
Useful Luminous Flux (lm)
2400 (2210, 2210)
On-Mode Power (Pon) (W)
18
Standby Power (Psb) (W)
0
CRI
82
CRI (min)
80
CRI (max)
84
Height (mm)
33
Width (mm)
192
Depth (mm)
192
Equivalent Power (W)
N/A
Beam Angle (DLS)
N/A
Beam Angle (min)(DLS)
N/A
Beam Angle (max) (DLS)
N/A
R9 CRI (LED/OLED)
32 (9, 11)
Survival Factor (x.xx)
0.9
Displacement Factor
0.94
Energy Efficiency Class
E
Voltage
220-240Vac 50/60Hz
Product Range
LED Commerical Lamp
Product Name
DD Standard
Product Warranty
5 Years
On-Site Warranty
3 Years
Description
• Compatible with Kosnic LED DD lamps for maintained or non-maintained emergency lighting• Automatic Self-Test (AST) technology conforming to EN 62034• Conforms to EN 61347-1, EN 61347-2-7 and EN 61347-2-13• Voltage change-over threshold according to EN 60598-2-22• 3 hours rated duration• LiFePO4 battery – improved battery lifespan allowing frequent partial discharge without capacity reduction• Over-charge, over-current, short-circuit and deep discharge protection for battery• Constant current output• Charging status LED built into DD lamp• For built-in use• Supplied with internal battery and all necessary leads and connectors
Additional information
Product Range
Emergency
Product Name
DD EME
UEM/EME Input Voltage
220-240 Vac 50-60 Hz
UEM/EME Output Wattage (W)
2
UEM/EME Output Voltage (Vdc)
24-54
UEM/EME Output Current (mA)
25-54
UEM/EME Protection
IP20, For built-in installation
UEM/EME Battery
Li-Ion KBAT2600LI1
UEM/EME Charging Time (h)
24
UEM/EME Battery Life (Years)
4
UEM/EME Test Function
Automatic and Manual
UEM/EME Weight (g)
132
Product Warranty
4 Years
On-Site Warranty
2 Years
Battery Warranty
4 Years
