Variants Description   Please note all the DNA kits are now D2N kits which is the exact same plus its Dali 2 Compatible  Order Codes Order Code Description DNA/1-K Module, Single Cell Battery and Charge LED Indicator for LED loads from 6-55Vf D2N/1 DNA/1S-K Module, Triple Cell Battery and Charge LED Indicator for LED loads from 6-55Vf D2N/1S DNA/1/TP40 Above Single Cell Kit Housed in a Two Part Enclosure for 40mm Apertures D2N/1/TP40 DNA/1S/TP40 Above Triple Cell Kit Housed in a Two Part Enclosure for 40mm Apertures D2N/1S/TP40     DNA/1/80-K Module, Single Cell Battery and Charge LED Indicator for LED loads from 6-80Vf DNA/1S/80-K Module, Triple Cell Battery and Charge LED Indicator for LED loads from 6-80Vf DNA/1/80/TP40 Above Single Cell Kit Housed in a Two Part Enclosure for 40mm Apertures DNA/1S/80/TP40 Above Triple Cell Kit Housed in a Two Part Enclosure for 40mm Apertures

Read more less

DNA/1/TP40 View Datasheet   Remote 2-part single-cell 3 hour DALI Self-Test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits, to suit 40mm aperture.  The DNA/1 automatically adjusts the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration This product is fully DALI compliant and in keeping with the DALI Standard, if the module is commissioned without a DALI control system present, the unit will revert the standalone self-test, indicating its faults via the charge LED.

Read more less

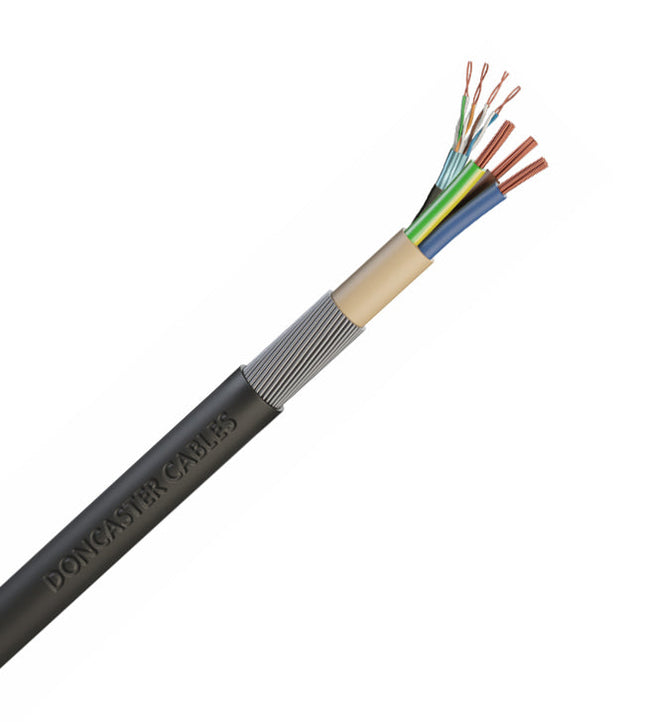

This cable is created for the purpose of installing electric vehicle charging stations. It consists of power conductors and a Cat 5 data cable that is screened for added safety, all encased in a dual-layer design for maximum protection. Although primarily designed for electric vehicle charging, this cable can also be used for other installations that require both power and data. It is suitable for installation in open air, on surfaces, on cable trays or ladders, and even embedded in concrete. For underground installations, proper mechanical protection must be in place before laying the cable. Power and data combined in one cable Less storage space required Easier to handle Easier to route through walls and buildings Saves installation time Gives a cleaner, neater looking installation View Datasheet

Read more less

Product benefits New Version will be sent  4099854295171  Multiwatt LED driver for LED TUBE EXTERNAL T5 and T8 DALI 2.0 interface for dimming and sensor operations Suitable for emergency lighting Push DIM application for easy control 5 years guarantee View all details Product data sheet

Read more less

Driver LC 100W 250–700mA flexC lp EXC excite series non-SELV Product description Constant current LED driver for luminaire installation For luminaires of protection class I and protection class II Adjustable output current between 250 and 700 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 100 W Up to 95 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

Data sheet Product description Constant current LED driver Adjustable output current between 150 and 400 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 10 W Up to 81 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee (

Read more less

Product description   Data sheet Constant current LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Adjustable output current between 150 and 400 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 10 W Up to 83 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee (conditions at www.tridonic.com)

Read more less

Driver LC 10W 250/350/500/700mA fixC SC SNC2 essence series Product description Fixed output LED driver Can be either used built-in or independent with clip-on strain-relief (see accessory) Independent LED driver with cable clamps Constant current LED driver For luminaires of protection class II Temperature protection as per EN 61347-2-13 C5e Output current 250, 350, 500 or 700 mA Max. output power 10 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 0.5 kV (L to N) Surge protection voltage 1 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

Please select the Ma you require    Product description Independent LED driver with cable clamps Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Output current 250, 350, 500 or 700 mA Max. output power 10 W KC approval mark for art. no.: 87500580, 87500581 and 87500582. Nominal lifetime up to 50,000 h

Read more less

Driver LC 10W 350mA fixC lp SNC2 Linear drivers Data sheet Product description Fixed output built-in LED driver Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current 350 mA Max. output power 10.2 W Up to 80 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee (conditions at www.tridonic.com)

Read more less

Driver LC 14W 700mA fixC pc SR SNC2 essence series Product description Dimmable constant current LED driver (SELV) Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) Dimmable via leading edge and trailing edge phase dimmers Dimming range 5 to 100 % (depending on dimmer) For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711 Max. output power 14 W Output current 700 mA Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Push-in terminals 2 separate strain relief parts for input and output cables with highly robust clamps Functions Overload protection Short-circuit protection No-load protection No output current overshoot at mains on/off

Read more less

Product description Constant current built-in LED driver, particularly suitable for industrial applications in moderate environments such as semiconductor factories or logistic warehouses The LED driver is designed for a lifetime stated above under reference conditions and with a failure probability of less than 10 % Output current adjustable between 200 – 1,050 mA Max. output power 150 W Suitable for mains voltage peaks (burst/surge) up to 4 kV Temperature range of -25 ... +60 °C Nominal lifetime up to 100,000 h 5 years guarantee

Read more less
