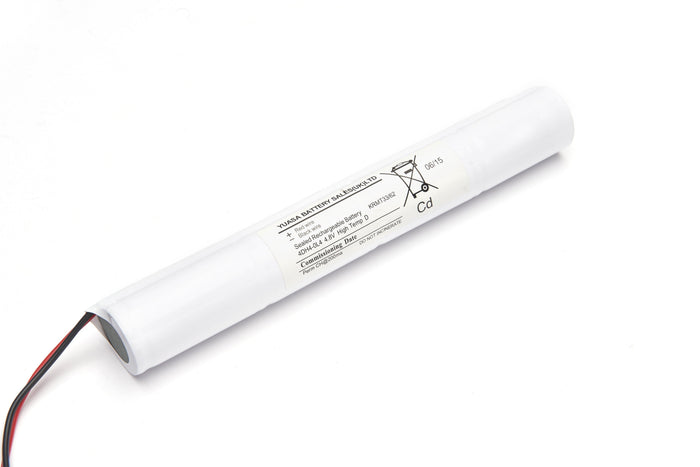

You are viewing the Yuasa 4.8v D cell, nickel cadmium rechargeable 4 cell stick battery for use with emergency lighting applications. This battery has a capacity of 4ah and comes with flying leads. The dimensions of the Yuasa emergency battery are 32.5mm x 238mm. Please note that Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use. The Yuasa part number: 4DH4-0L4.

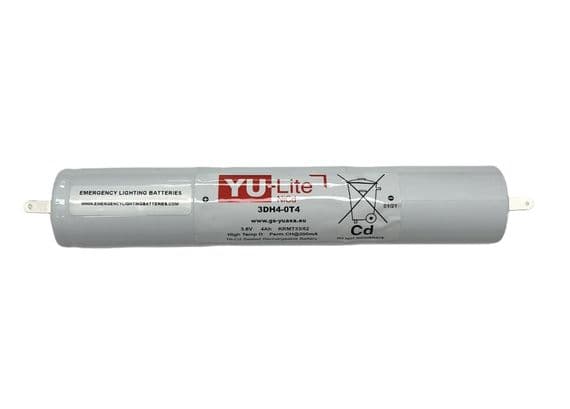

Brand : YuasaModel : 3DH4-0T4Voltage : 3.6vCapacity : 4.0ahWeight : 260gDimensions : 32.3 mm Diameter x 176 mm Long
Yuasa 3DH4-0T4 3.6v 4.0Ah Ni-Cd battery for use in emergency lighting.
Terminals : 4.8mm wide tags each end
Battery Type: High temperature nickel-cadmium battery (Ni-Cd) for use in emergency lighting.
---------------------------------------------
NiMH Battery pack 2.2 – 4.0 Ah
Nickel-Metal Hydride cells (NiMH)
Battery pack 2.2 Ah
Battery pack 4.0 Ah
Battery pack 2.2 Ah
Battery pack 4.0 Ah
Product description
High-temperature NiMH battery pack for use with emergency lighting units
4 year design life
1 year guarantee from delivery date
Properties
Constant high-temperature operation
Temperature depending on the used emergency lighting unit (refer to respective emergency control gear data sheet)
Good charging properties at high temperature
High energy maintenance of the charged battery
Certified quality manufacturer
Casing material made of polycarbonate
1.0 mm² stranded wire
Suitable for emergency lighting equipment as per IEC 60598-2-22
Data sheet
You are viewing the Yuasa 2DH4-0LAP3. 2.4v D cell, nickel-cadmium rechargeable 2 cell side by side battery for use with emergency lighting applications.
This battery has a capacity of 4ah and comes with flying leads, amp plug, and a backplate.
The dimensions of the Yuasa emergency battery are (LxWxH) 65mm x 32.3mm x 60mm. Please note that Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use.
The Yuasa part number: 2DH4-0LAP3.
3DH4-0LA5
This is a Emergency 3 Cell Battery 3.6v 4.0ah, a D cell nickel-cadmium rechargeable battery with flying leads, ideal for use within emergency lighting applications.
These batteries are often used with emergency bulkheads, polo fittings and with LED panels and downlights for emergency uses. Typically used in offices, corridors, exit areas, schools and public buildings.
These batteries have been manufactured to be used in fittings with limited space. Tied together with cable ties which can be cut to maneuver into tight spaces or fittings.
Please note that Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use.
