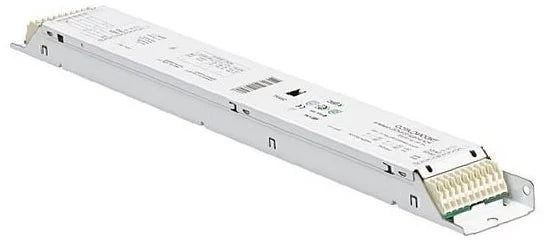

22185104 PCA 2x14/24 T5 EXCEL one4all lp Y II

Product description
• Processor-controlled ballast with y II inside
• Highest possible energy class CELMA EEI = A1 BAT1
• Noise-free precise control via DALI or
DSI signal, switchDIM or corridorFUNCTION
• Nominal life up to 100,000 h (at ta 50 °C
with a failure rate max. 0.2 % per 1,000 h)
• Multi-lamp management
• OEM-specific reserved memory areas
• Extended DALI commands
• 5 years guarantee
Interfaces
• DALI
• DSI
• switchDIM (with memory function + selectable dimming

• corridorFUNCTION (3 preprogrammed
profiles + individually programmable)
• Integrated SMART interface for function with all
SMART Sensors and SMART plugs of the y II range
Functions
• Intelligent Temperature Guard (overtemperature protection)
• Intelligent Voltage Guard (overvoltage indication
and undervoltage shutdown)
• Optimum filament heating in any dimmer setting
• Disconnection of filament heating from a dimming level of approx.
90 % for maximum energy efficiency (SMART-Heating concept)
• Fade rates between 100 ms and 90 s (min. – max.)
• corridorFUNCTION with ambient light control
• Automatically triggered emergency lighting value in DC mode 15 %,
can be set between 1 and 100 %
• For emergency lighting systems as per EN 50172
• Automatic start after replacement of defective lamps
