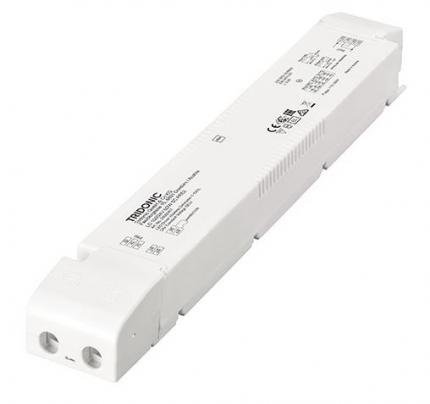

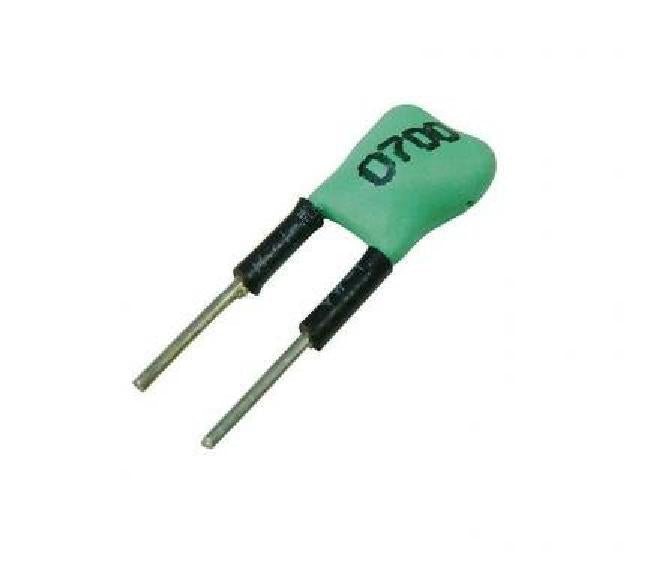

Dimming range 1 to 100% Protection class IP20 5-year guarantee Flat metal housing with white cover Suitable for escape route lighting systems according to EN 50172 Switch-on fader with AC Nominal service life of up to 100,000 h Dimmable built-in constant current LED driver Up to 92% efficiency Power consumption in standby < 0.15 W Output current adjustable between 100 - 400 mA one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Connection terminals: 0° touch terminals Adjustable output current (DALI, ready2mains, I-select 2) Constant light output function ( CLO) Configurable via ready2mains service monitor for logging certain events Protective functions (overtemperature, short circuit, overload, no load, input voltage range, reduced surge amplification) Application-oriented operating window for maximum compatibility Best energy savings thanks to low standby losses and high efficiency Flexible configuration via DA LI, ready2mains and I-select 2 Reliability proven by a service life of up to 100,000 h and a 5-year guarantee For linear/area lighting in office applications Max. output power 75 W

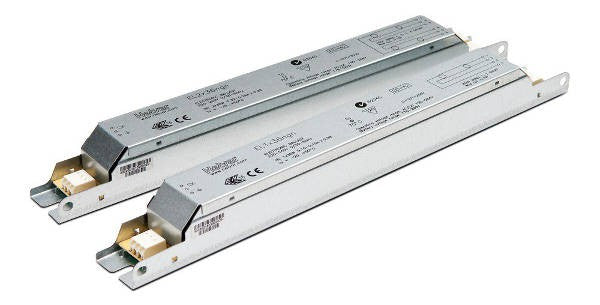

Model: EL1x36NGN
A Helvar High Frequency Ballast
Product Features
Input voltage: 220 V – 240 V
Lamp type: T8 (36 W)
Lifetime (h): 60,000
Warm start
Energy efficiency class: A2
Standard electronic ballast
Input voltage: 220 V – 240 V
Lamp type: T5 (14 W / 21 W / 28 W / 35 W), T5-eco (14 W / 21 W / 28 W / 35 W)
Lifetime up to (h): 60000
Warm start

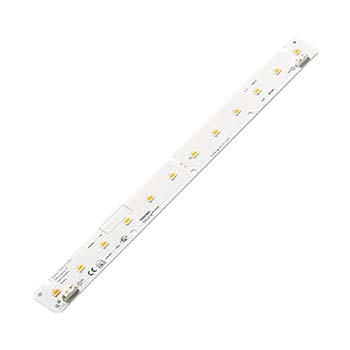

280mm
66205100
Specifications
General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
E+
Type version
mk2
Lamp type
TL5
Number of lamps
1 piece/unit
Number of products on MCB (16 A type B) (nom.)
39
Automatic restart
Yes
Operating and Electrical
Input Voltage
195-240 V
Input frequency
50 to 60 Hz
Operating frequency (max.)
110 kHz
Operating frequency (min.)
45 kHz
Ignition method
Warm Start
Crest factor (max.)
1.7
Power factor 100% load (nom.)
0.95
Ignition time (max.)
1 s
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Earth leakage current (max.)
0.5 mA
Inrush current width
0.18 ms
Standby power consumption (max.)
0.25 W
Ballast factor (nom.)
1
Power losses (nom.)
3.8 W
Inrush current peak (max.)
20 A
Wiring
Connector type input terminals
WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Cable capacity output wires mutual (max.)
200 pF
Connector type output terminals
WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector type control input terminals
WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Wire strip length
8.0-9.0 mm
Dual fixture master/slave
Yes [ Master/Slave operation possible]
Control input terminal cross section
0.50-1.00 mm²
Input terminal cross section
0.50-1.00 mm²
Output terminal cross section
0.50-1.00 mm²
Auto-insert (ALF/ADS) wire cross section
0.75 mm²
Cable capacity output wires to earth (max.)
200 pF
System characteristics
Rated ballast-lamp power
28-35-49-54 W
Rated lamp power on TL-D
58 W
System power on TL-D
55.5 W
Lamp power on TL-D
52.2 W
Power loss on TL-D
3.3 W
Rated lamp power on PL-L
55 W
System power on PL-L
54.6 W
Lamp power on PL-L
51.2 W
Power loss on PL-L
3.4 W
Rated lamp power on TL5
28/35/49/54 W
System power on TL5
32.1/39.1/55.1/57.7 W
Lamp power on TL5
29.4/36.4/51.6/54.8 W
Power loss on TL5
2.7/3.0/3.5 W
Rated lamp power on TL5 ECO
25/32/45/50 W
System power on TL5 ECO
29.4/33.1/49.1/54.2/ W
Lamp Power on TL5 ECO
26.3/30.2/45.7/50.4 W
Rated lamp power on TL-D ECO
51 W
System power on TL-D ECO
45.8 W
Power loss on TL-D ECO
3.1 W
Lamp power on TL-D ECO
42.7 W
Power loss on TL5 ECO
3.1/2.9/3.4/3.8/ W
Temperature
T-ambient (max.)
50 °C
T-ambient (min.)
-25 °C
T storage (max.)
80 °C
T storage (min.)
-40 °C
T case lifetime (max.)
75 °C
T-Case maximum (max.)
75 °C
Stable lamp operation temperature
15°C
T-Ignition (max.)
50 °C
T-Ignition (min.)
-25 °C
Controls and Dimming
Control interface
TD
Regulating level power
1%-100%
Control input protection
Yes (Basic insulation)
Mechanical and Housing
Housing
L 359x30x21
Emergency Operation
Battery voltage lamp ignition
198-254 V
Battery voltage lamp operation
176-254
Approval and Application
Energy efficiency index
A1 BAT
IP classification
IP 20 [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1,000 MHz
EN 55022 Class B
Safety standard
IEC 61347-2-3
Performance standard
IEC 60929
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
IEC 61000-3-2
EMC immunity standard
IEC 61547
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Humidity standard
EN 61347-2-3 clause 11
Approval marks
CE marking
ENEC certificate
VDE-EMV certificate
Temperature marking
Yes
Emergency standard
IEC 60598-2-22
Humming and noise level
Inaudible
Product Data
Full product code
871829166205100
Order product name

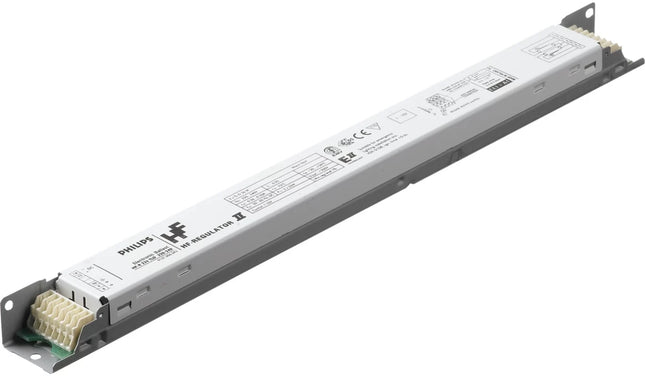

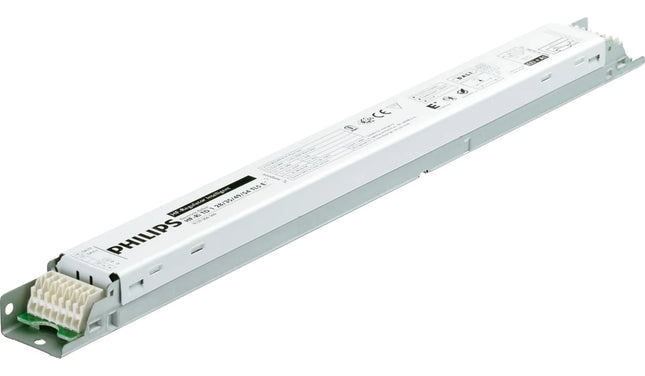

HF-Ri TD 1 28/35/49/54 TL5 E+ 195-240V
EAN/UPC – product
8718291662051
Order code
66205100
Local order code
HFRITD12854T5PL
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700695666
SAP net weight (piece)
0.261 kg
Please note this item is now obsolete , you will be sent a Philips alternative which is exactly the same size with the same terminals

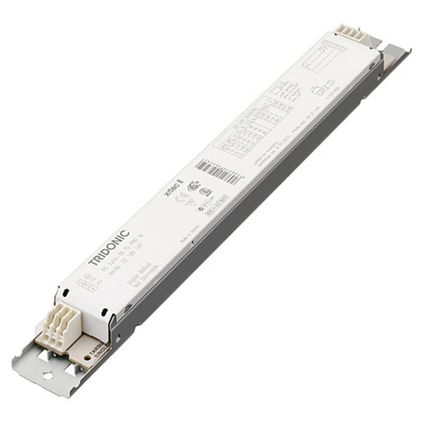

This is the Tridonic PC 2/58 T8 Pro, a non-dimmable high frequency ballast to run 2 x 58w T8 fluorescent tube or 2 x 55w TC-L lamp.These ballasts have a nominal life time of up to 100,000 hours and provide a constant luminous flux even with fluctuations in mains voltage.Tridonic T8 Pro ballasts also have an automatic start after replacement of defective lamps and a safety shutdown of defective lamps at the end of a lamps life.
The most important features at a glance: - Energy efficiency class A2 BAT - Service life of up to 100,000 h - Intelligent Voltage Guard (overvoltage display and undervoltage shutdown) - Precise lamp operation by adjusting the lamp parameters - Advanced SMART heating for at least 50,000 starts without changing the lamp - Constant luminous flux regardless of mains voltage fluctuations - For lights of protection class I + II - Automatic restart after lamp replacement - Safety shutdown of defective lamps and at the end of lamp life - Insulation displacement terminals (IDC) for fast automatic and manual wiring - For emergency lighting systems in accordance with EN 50172
Technical Specifications

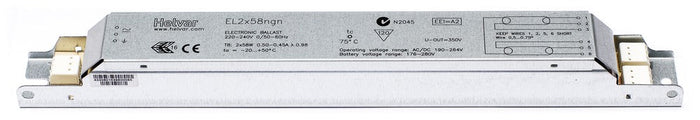

for Helvar T8 58W Twin Ballast
Actual Wattage
58 W
Ballast Type
High Frequency (Standard)
Dimming?
Non-Dimmable
Height
28 mm
Helvar Part Code
EL2x58HF
Lamp Type
T8
Length
280 mm
Linear
2x58 Watt
Manufacturer
Helvar
No. Of Lamps
Twin (2x)
Type
Control Gear
Width
30 mm
The Tridonic PC 1x36 T8 TOP is a non-dimmable high-frequency ballast to run: 1 x 36 Watt 4ft T8 fluorescent tubes. Tridonic article number 22185223. Tridonic PC 1x36 T8 Top ballasts have an average life of 50,000 hours and 30,000 starts before lamp failure. Efficiency index is A2 and the overall weight of this HF ballast is 0.148kg. Not for use in switch start CCG type fittings with an external starter.
